DA7 Users’ Guide
17
-
1
17
Options
The DA7 has three option card slots on the Rear Panel. SLOT 1 corresponds
to Channel 17-24, SLOT 2 connects to Channel 25-32, and SLOT 3 can
appear as Channel 9-16. Although SLOT 3 has multiple functions when
SLOT 3 is being used to bring sources into the DA7, the FLIP LED buttons
for those channels will change to (orange) to let you know you are using
the option slot inputs. Routing of SLOT 3 is assigned in the [DIGITAL
INPUT SELECT] area of the [D-I/O>INPUT SET] window.
A separate slot is provided for the SMPTE & V Sync option card, as described
in Section 17-5.
Chapter 17
Options

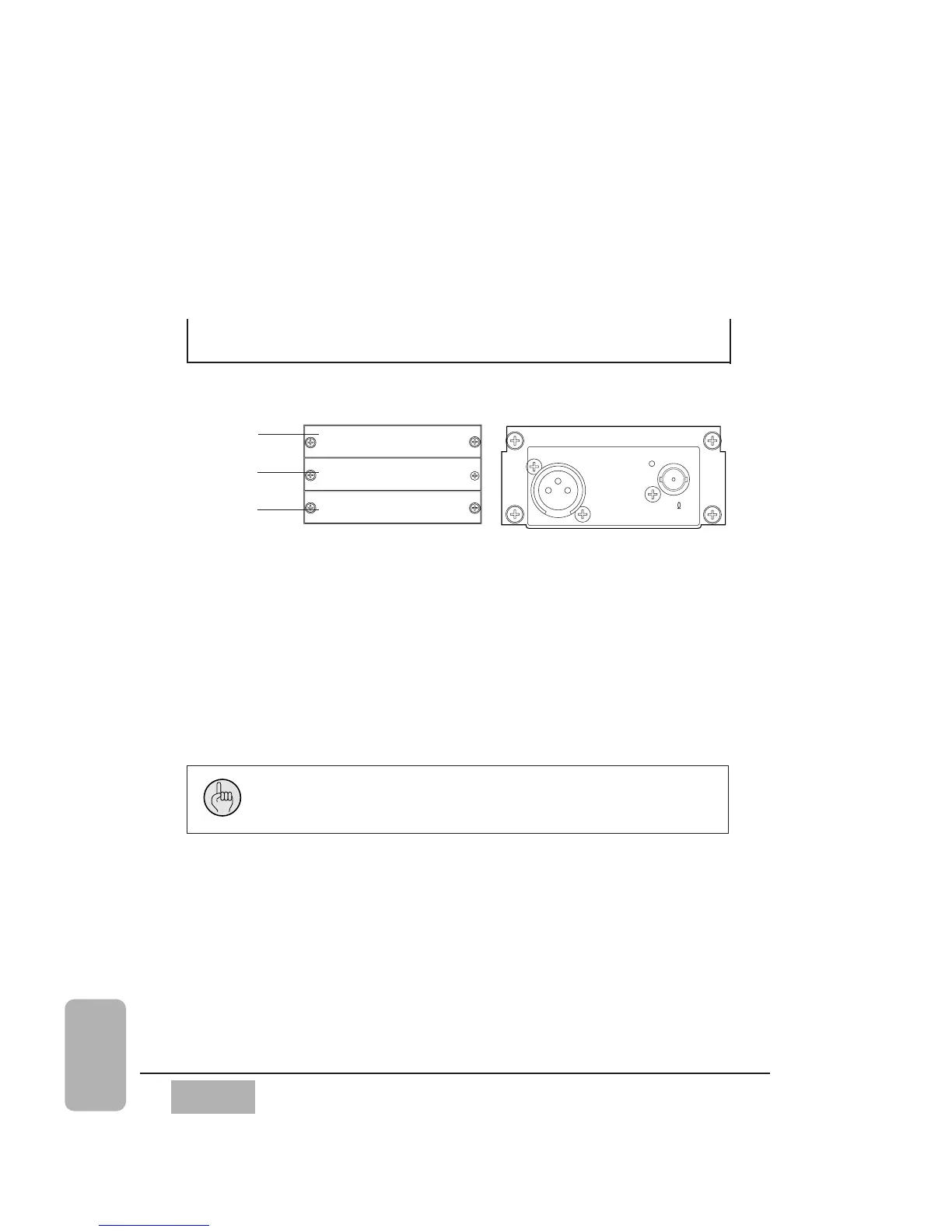

SLOT Panels SMPTE/V SYNC Slot
SLOT 1
SLOT 2
SLOT 3
Be sure to note the wordclock requirements for the option cards.
See Section 12-1, D-I/O Input Set for additional information.
