K3.1.141e Manual NitroFlow HP_EN.doc - 25 -
5.7 Connect nitrogen consumer
Warning
• Make sure that tubes connected to the system are free of dust,
particles, metal parts and curls, liquids and grease before you
connect the NitroFlow
®
HP.

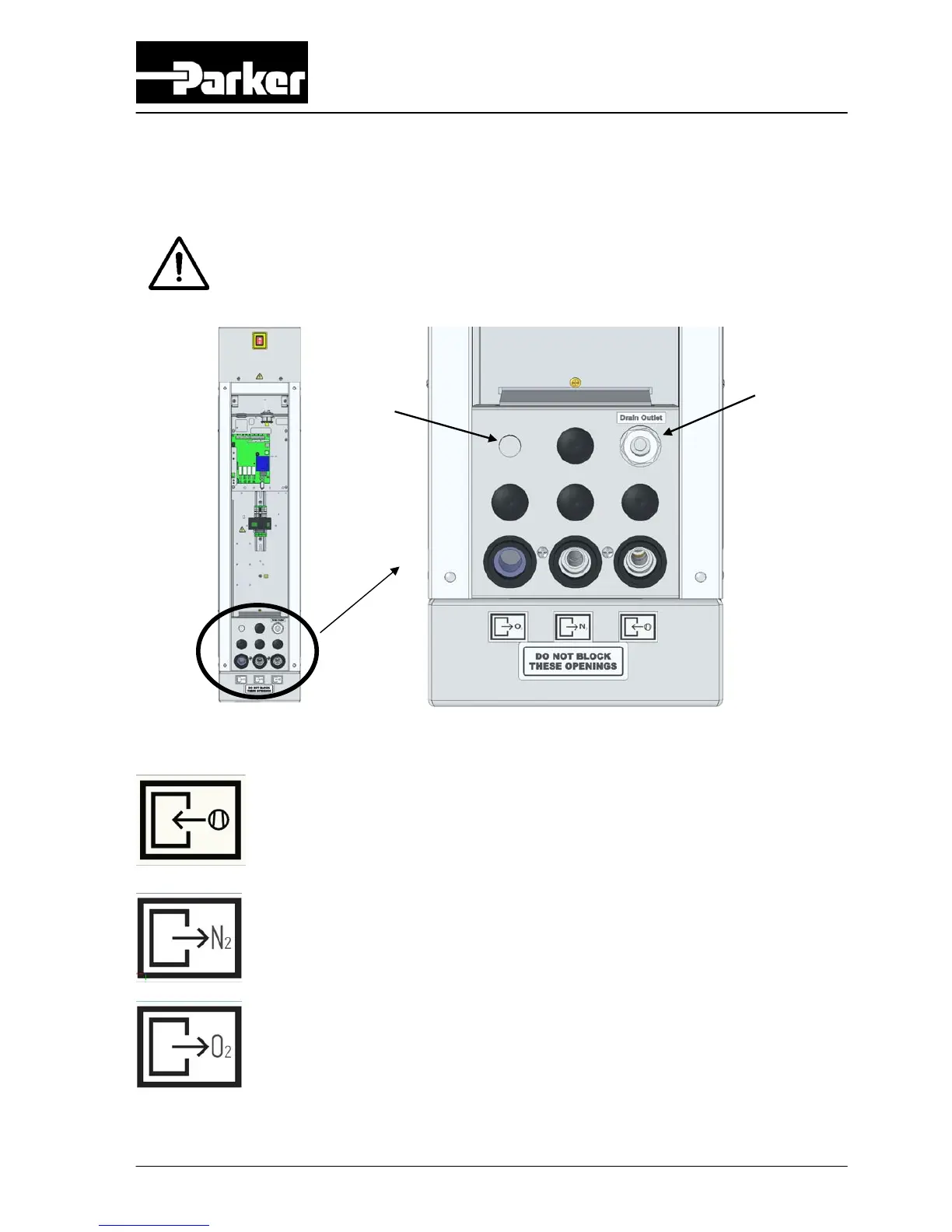

Fig. 5-4 Connections NitroFlow
®
HP
Compressed air inlet. Temperature of compressed inlet air must be
within 10°C (50°F) and 50°C (120°F) (refer to table 4-1).
Nitrogen outlet. Connect nitrogen outlet to the application or to the
reservoir refer to fig 3-3).
Oxygen outlet. The outlet of the oxygen enriched air (permeate
outlet) must not be blocked or restricted. Restriction of the outlet will
lead to bad performance of the unit. Blocking the outlet will lead to
shut down of the unit. Permeate outlet must be open to atmosphere at
all times (no back pressure).
Power inlet
Drain outlet
