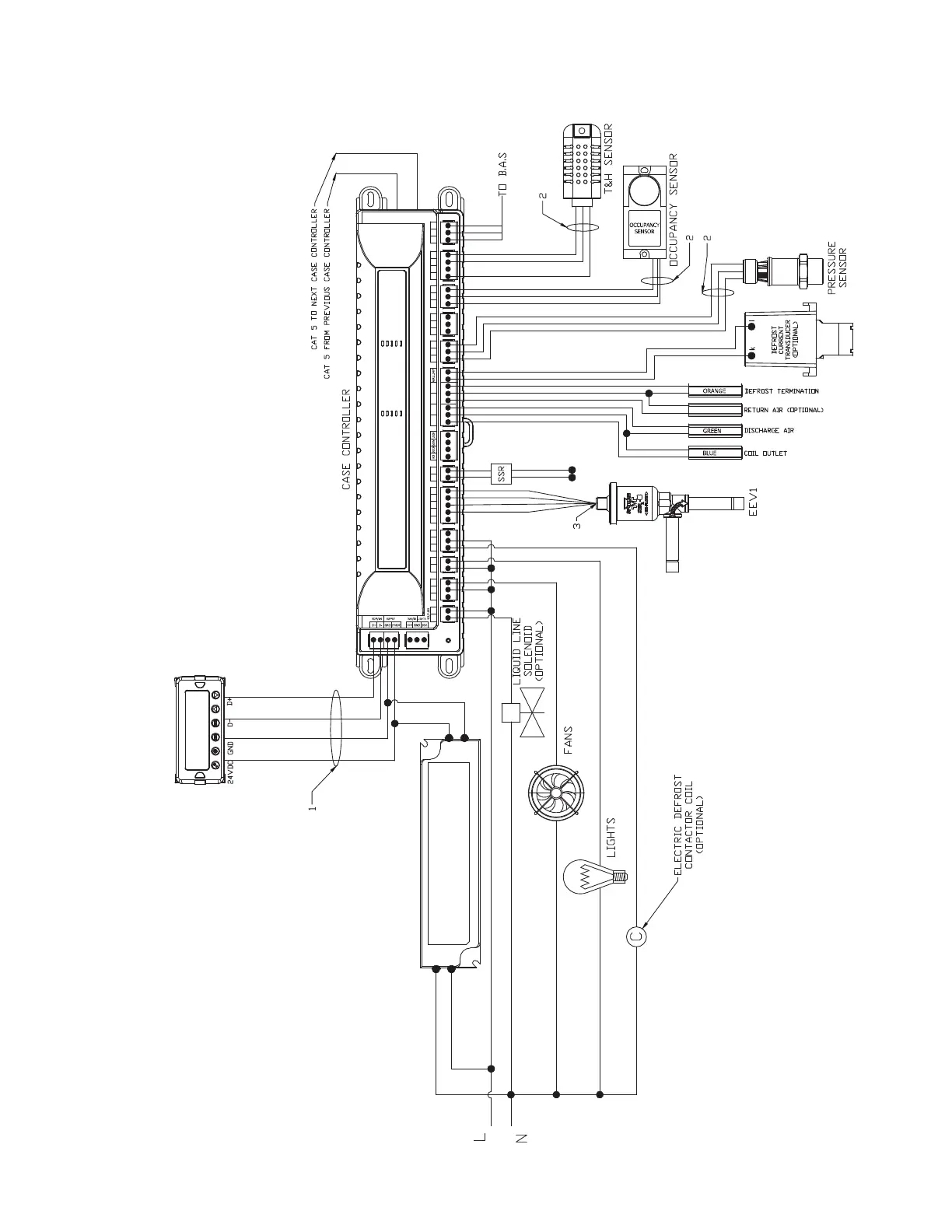

Parker Sporlan S3C - Wiring Diagram - Configuration F

Bulletin 100-50-9.1 – Page 41
NO COM NO COM NC
FAN
COM NC
LIGHTS
NO COM NC
DEFROST
REF B W G R
ANTI-SWEAT
+ -
DIGITAL INPUTS
OUT
COIL
AIR
DSCH
AIR
RTN DET
TERM
5V S GND 5V S GND 5V S GND
PRESSURE
DRAIN
OCCUPANCY
D+ D- GND
RS-485
TEMPERATURE SENSORS
CL GND
5V
HUMIDITY
POWER FANS
ALARM COOLING
DEFROST
RDM VM Rx/Tx BAS Rx/Tx
VALVE
SOLENOIDS LIGHTS
CONTROL
S3C
CASE
SPORLAN S3C DM
POWER SUPPLY
INPUT: 100-240VAC 1.2A 50/60Hz
OUTPUT: 24VDC 2.5A
ACN
(BLUE)
ACL
(BROWN)
V-
(BLACK)
V+
(RED)
BLACK
WHITE
GREEN
RED
WHITE
BLACK
YELLOW
BLACK
BLACK
WHITE
RED
RED
GREEN
YELLOW
STEPPER VALVE
WIRING DIAGRAM – CONFIGURATION F
