Filter 0x100
Filter Type Mask
CAN ID Mode Standard (11 Bit)
Filter Mode Whitelist
Acceptance Code 100
Acceptance Mask 000
Name ID-100
User Notes Only ID 0x100 can pass.
After saving, continue with the filter for ID 0x200.
Filter 0x200
Filter Type Mask
CAN ID Mode Standard (11 Bit)
Filter Mode Whitelist
Acceptance Code 200
Acceptance Mask 000
Name ID-200
User Notes Only ID 0x200 can pass.
The Acceptance Code specifies the CAN ID that should pass the
filter. The Acceptance Mask 000 causes every digit of the three-digit
CAN-ID to be checked.

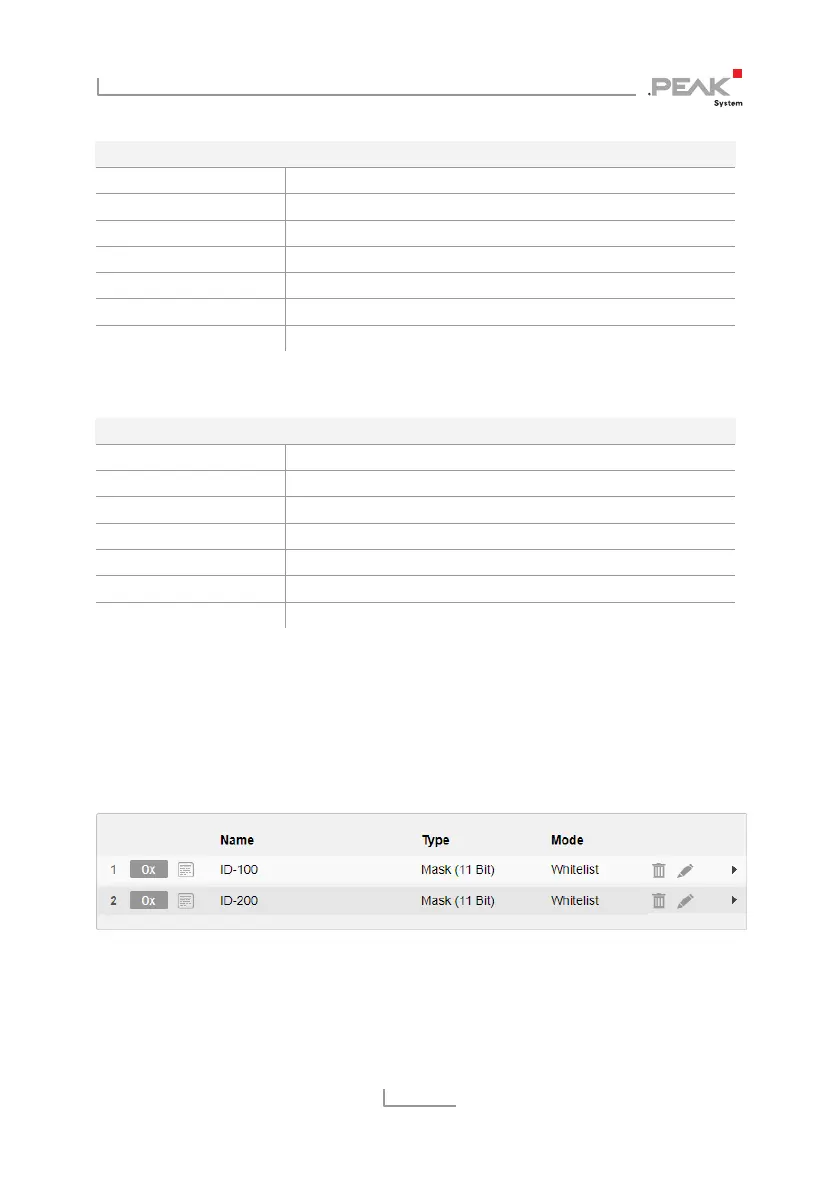

After saving, the filters are displayed on the
Filters > Manage Filters
page as follows:
