pellenc C45 - Connecting the Tool to the ULIB 150 P and 250 Batteries

PRUNING SHEARS C45, C45-P150, C45-P200
163529-D
• 1 holster to be fitted on the adjustable belt
• 1 adjustable belt
• 1 armband
• 1 cord (ref.130735)
• 1 tool operating instructions manual
• 1 battery 250 operating instructions manual
• 13 mm angled wrench
4.3. BOX CONTENTS OF THE P150 OR P200 POLE
Make sure the box contains:
• 1 P150 or P200 pole
• 1 set of assembly instructions for C45 pruning
shears
• 1 set of assembly instructions for Prunion shears
• 1 tool protective cover
•
1 packet containing:
• 1 adaptation spacer
• 1 adaptation screw
• 1 T10 Torx wrench
• 1 Schnorr 6 washer
• 1 C45 link pin
• 1 Truarc 4 ring
• 1 insulating cover
4.4. FITTING THE POLE ONTO THE TOOL
See the mounting instructions for the pole.
4.5. FITTING OF THE BATTERY ON THE HARNESS (ULIB 250 BATTERY)
See the harness assembly instructions.
Important
After mounting, the battery must be solidly attached and secured on your harness. If this is not the case then
the mounting needs to be checked.
4.6. FITTING THE HOLSTER TO THE BELT
See the operating instructions for the battery.
4.7. CONNECTING THE TOOL TO THE ULIB 150P AND 250 BATTERIES
1. Putting the battery into service.
See the operating instructions for the battery.
2. Before connecting the tool, make sure the battery is
switched off.
See the operating instructions for the battery.

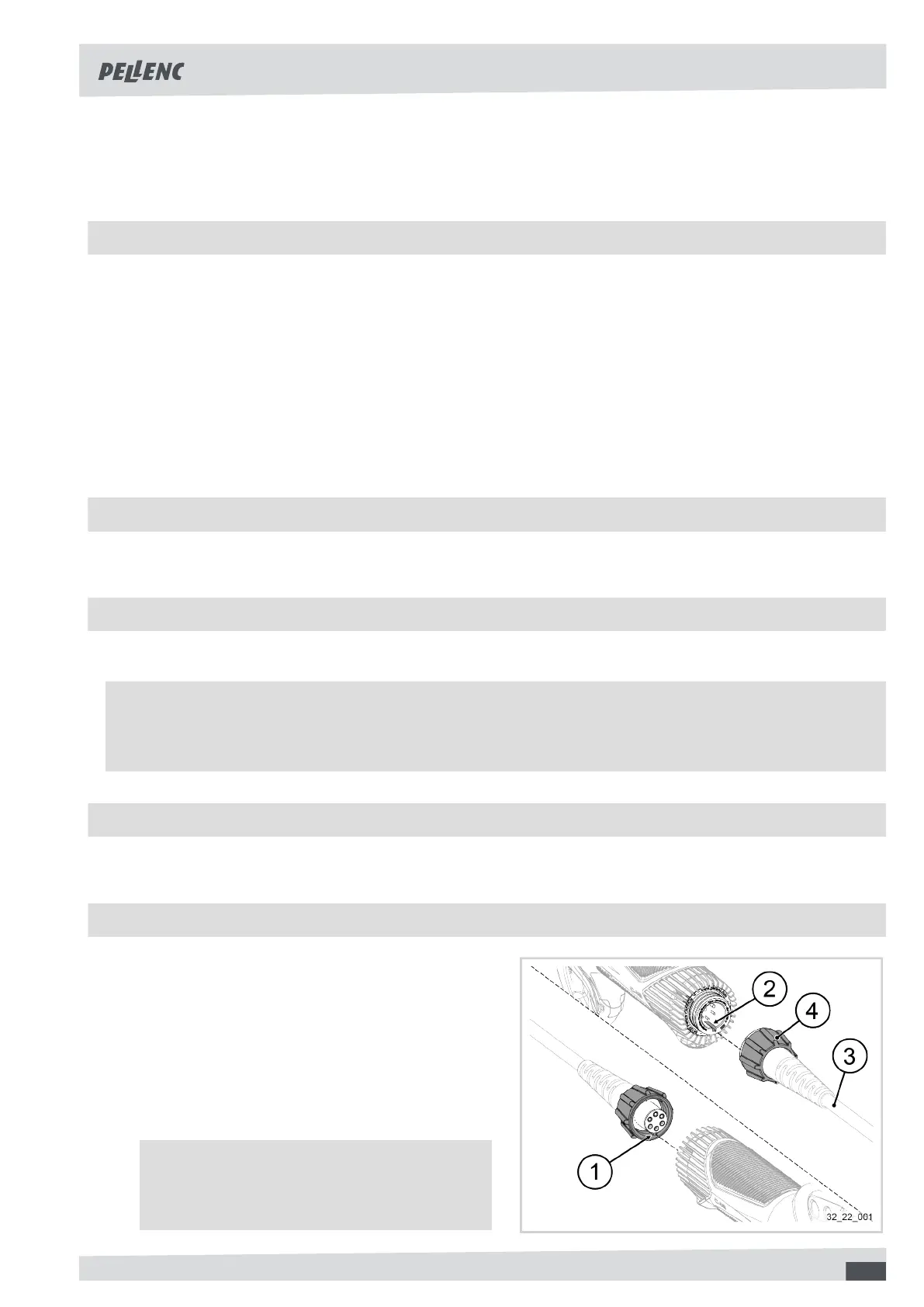

3. Align the tool power alignment marker (2) with the
notch in the battery power connector (1).
4. Connect the battery power cord (3) to the tool.
5. Tighten the tightening ring (4).
Important
Risk of false contact and tool stoppage if the
tightening ring is not fully tightened.
