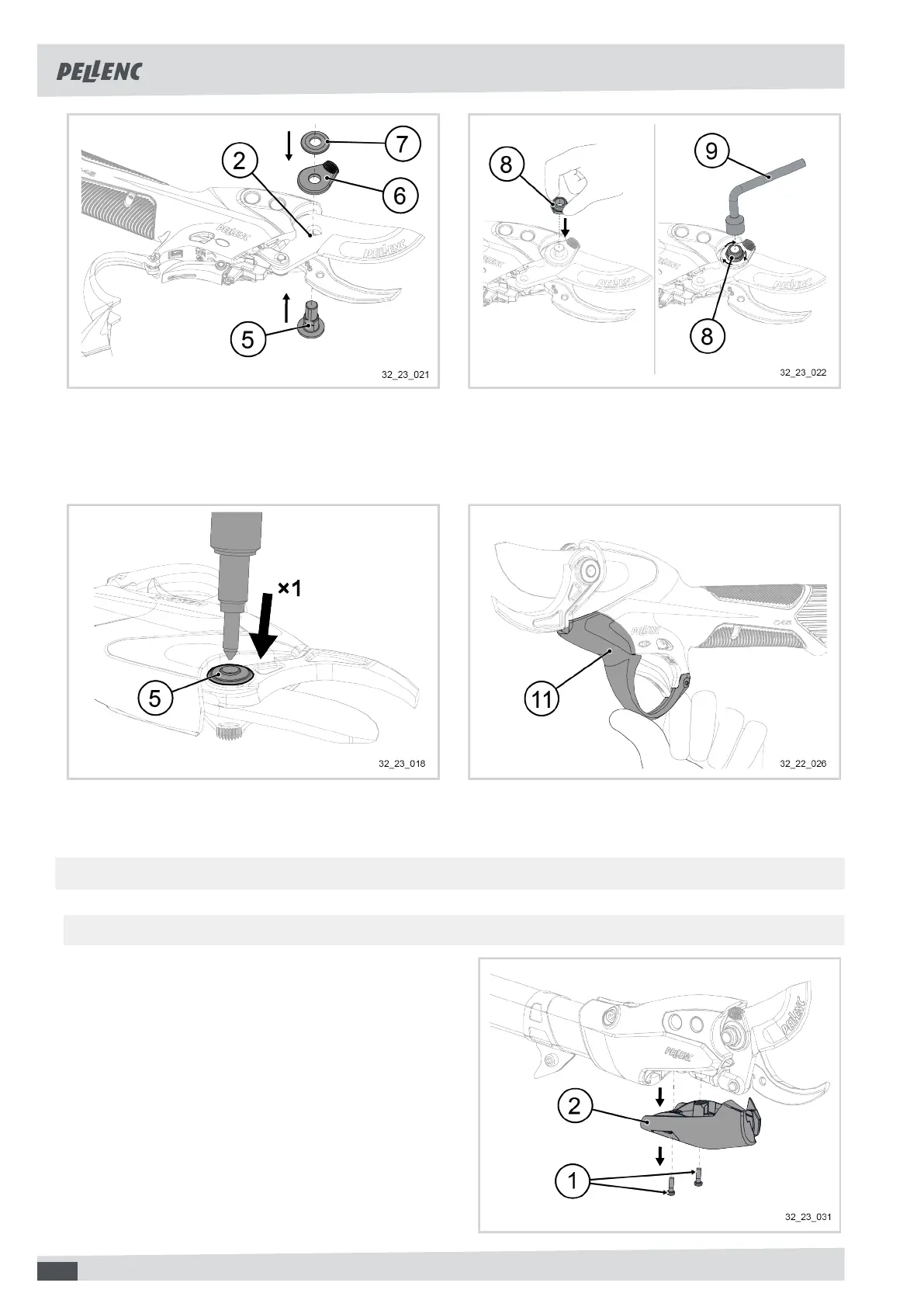

8. Align the flat on the blade pin (5) with the alignment
marker on the blade (2).
9. Fit the blade pin (5).
10. Replace the knurled adjustment washer (6),
11. Replace the washer (7).
12. Fit the nut (8) on the blade pin.
13. Tighten the nut (8) using the spanner provided (9).
See 6.3.6. Adjusting the tightness of the blade,
page 38.
14. Grease the blade pin (5).
See 6.5. Greasing the blade, page 41.
15. Clip the guard (11) back in place by pressing in the
centre.
6.4.2. REMOVE / FIT THE BLADE AND PINS OF THE TOOL EQUIPPED WITH A P150 OR P200 POLE
6.4.2.1.REMOVETHEBLADEANDPINSFROMTHETOOLEQUIPPEDWITHAP150ORP200POLE
1. Repeat points 1 to 3 of the procedure for removing
the blade and pins from the tool alone.
See 6.4.1.1. Remove the blade and pins from the
tool alone, page 38.
2. Loosen the two screws (1) using a Torx T10 screw-
driver.
3. Remove the two screws (1).
4. Remove the cutting head cover (2).
5. Repeat points 5 to 8 of the procedure for removing
the blade and pins from the tool alone.
See 6.4.1.1. Remove the blade and pins from the
tool alone, page 38.
