OPC / OPD / OPE
Vision Configurator Software

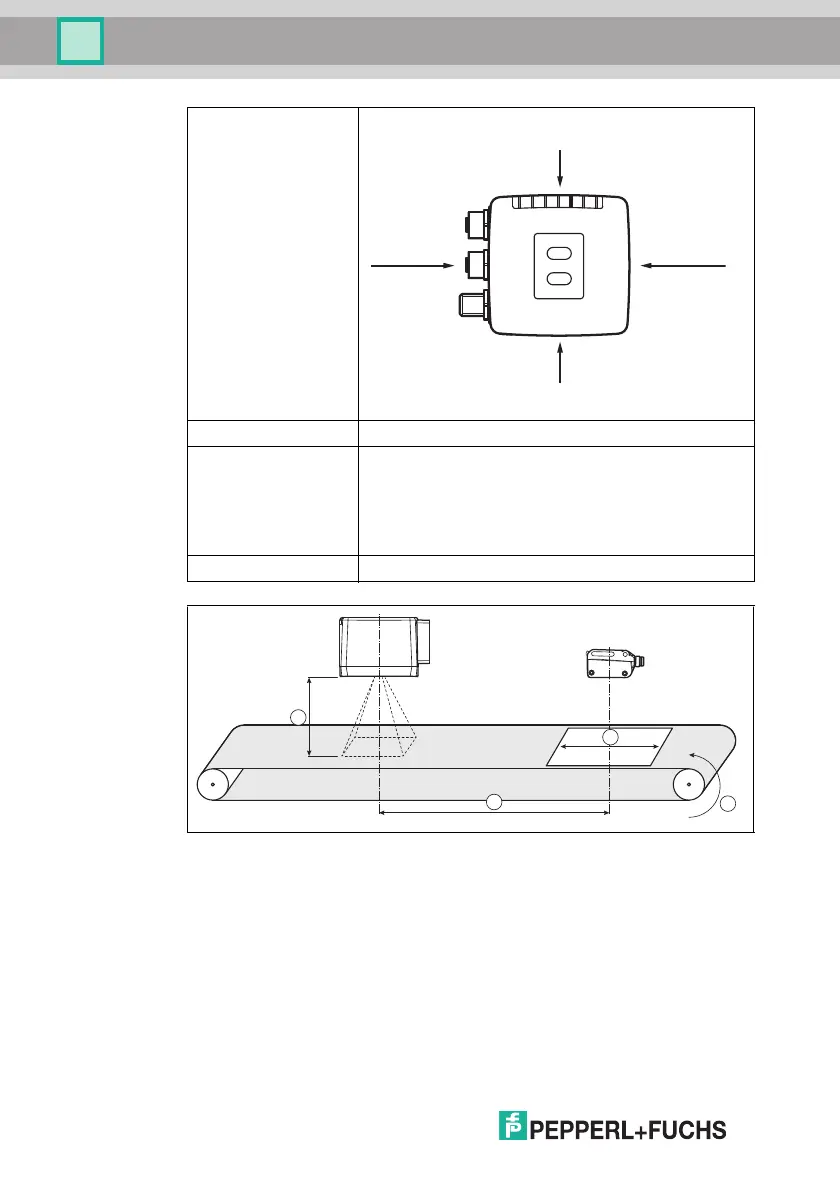

1. Target distance: Read distance in mm
2. Trigger offset: Distance in mm between trigger and sensor's optical axis
3. Sheet length: Object's length in mm
4. Encoder resolution: Rotary encoder resolution in increments/m
Target movement Code's direction of movement from the sensor's perspective
Reset Cycle Interruption of the cycle
No. of images The sensor uses the Encoder resolution, Trigger offset,
Target distance, and Sheet length values to automatically
calculate the number of reads and the trigger times they
require to capture the entire object.
If the number of images is greater than the image memory
available, the application is not feasible because the entire
object cannot be captured.
Vmax (mm/s) Maximum speed of the object
1
2
Up -> Down
Down -> Up
Left -> Right Right -> Left
