- Example 2: 1111-2222-3333 4444-5555-6666

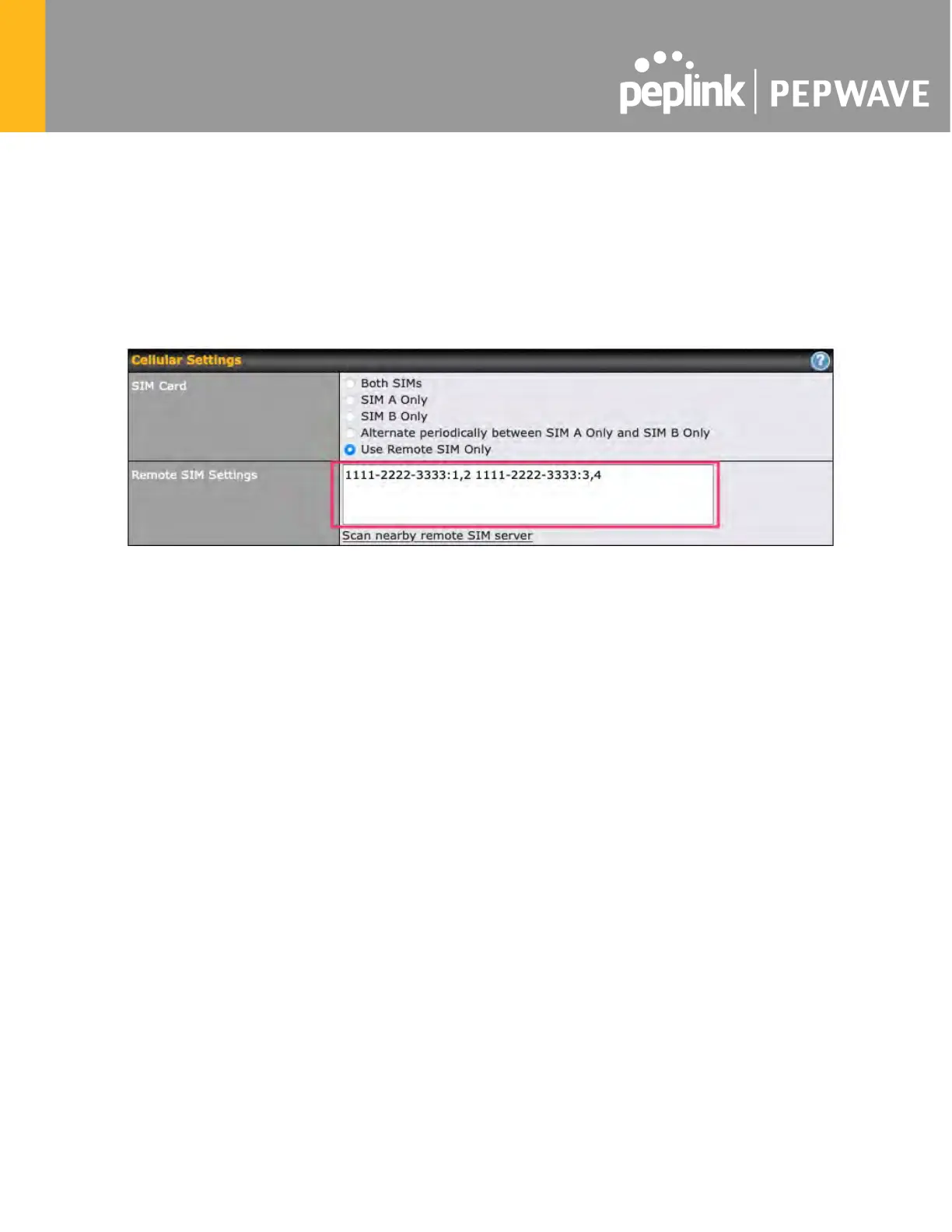

B. Defining SIM Injector(s) SIM slot(s):
- Format: <S/N:slot number>
- Example 1: 1111-2222-3333:7,5 (the Cellular Interface will use SIM in slot 7, then 5)
- Example 2: 1111-2222-3333:1,2 1111-2222-3333:3,4 (the cellular Interface will use
SIM in slot 1, then in 2 from the first SIM Injector, and then it will use 3 and 4 from the
second SIM Injector).
Note: It is recommended to use different SIM slots for each cellular interface.
5. Click Save and Apply Changes.
Step 3. (Optional) Custom SIM cards settings.
1a. For a Balance router, go to the Network (Top tab).
1b. For a MAX router, go to the Advanced (Top tab).
2. Under Misc. settings (Left-side tab) find Remote SIM Management.
3. Click on the Add Remote SIM button, fill in all the required info and click Save. This section
allows defining custom requirements for a SIM card located in a certain SIM slot:
- Enable/Disable roaming (by default roaming is disabled).
- Add Custom mobile operator settings (APN, user name, password).
4. Repeat configuration for all SIM cards which need custom settings.
5. Click Apply Changes to take effect.
Scenario 2: SIM Injector in WAN of main Router and
multiple Cellular Routers
Setup topology
