Mounting and commissioning the machine
8 - 3
77-011
8.02 Mounting the flange motor
8
.02.01 Mounting the flange motor to the bearing plate

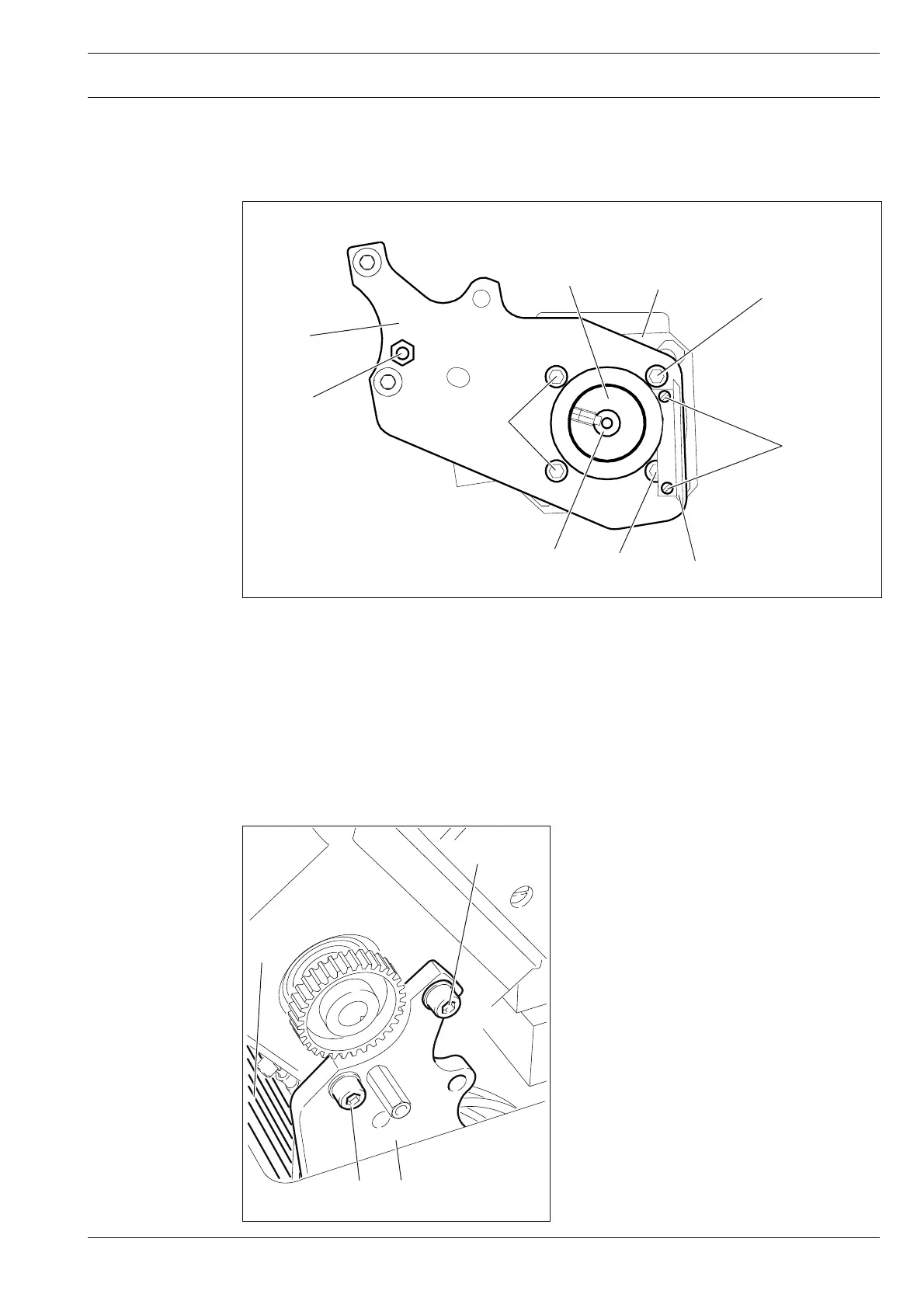

Fig. 8 - 04
1
3
2
3
Attach bearing plate 1 to motor 2 with screws 3 as shown in Fig. 8 - 04.
Remove the wedge from motor shaft 4.
Attach angle bracket 5 with screws 6.
Fit toothed belt wheel 7 to the motor shaft 4, so that the point of the screw is located in
the groove of the motor shaft.
Screw threaded stud 8 into the bearing plate 1.
4
5
8
3
6
7
8.02.02 Mounting the flange motor to the machine
Attach bearing plate 1 of motor 2 to the
machine case with screws 3 (only tighten
screws 3 slightly).
Fig. 8 - 05
2
3
1
3
