Adjustment
13 - 10
13.04.08 Roller presser
Requirement
When the roller presser 1 touches the feed wheel 6,
1. Seen in the direction of sewing, the roller presser should be parallel to the feed wheel 6,
2
. Seen in the direction of sewing, the centre of the roller presser should be approx.
2 mm in front of the needle,
3. Seen crosswise to the direction of sewing, the roller presser should be as close as
possible to the needle.
● Raise the roller presser 1.
● Adjust roller presser 1 (screw 2 and 3) in accordance with requirement 1 and 2.
● Adjust bracket 4 (screw 5) in accordance with requirement 3.
2

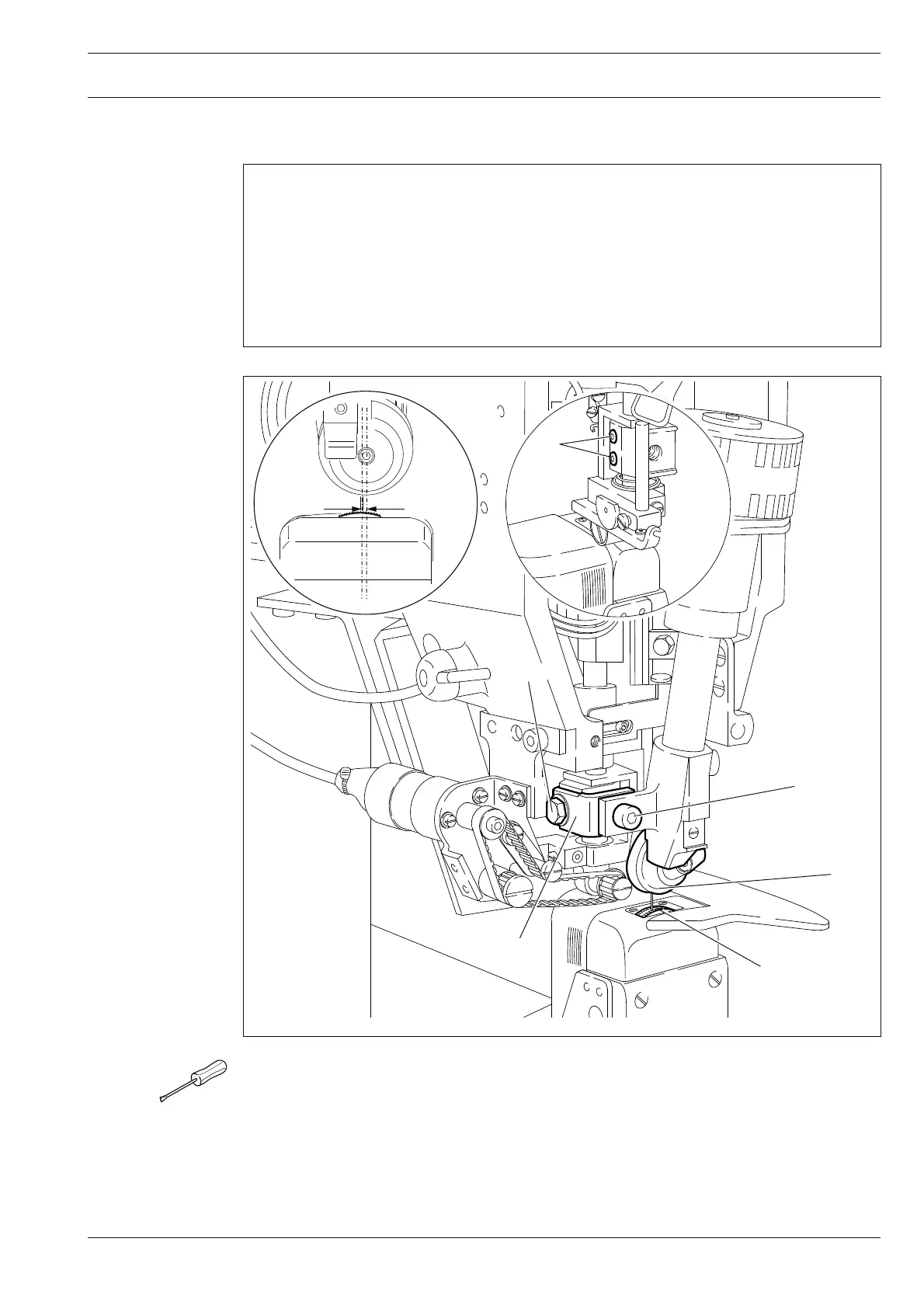

Fig. 13 - 08
2 mm
1
6
3
4
5
