Adjustment
13 - 8
87-027
13
.04.06

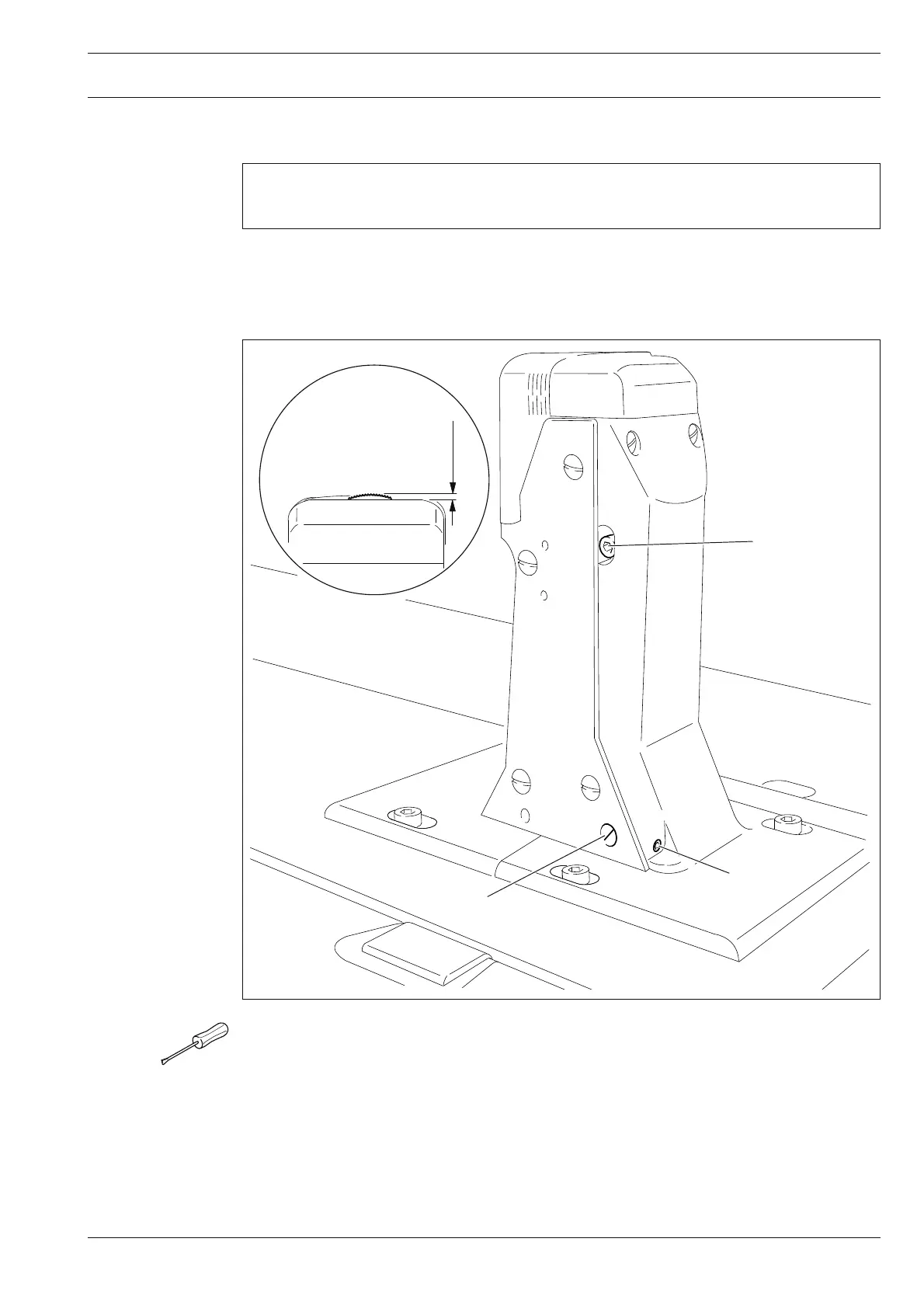

Height of the feed wheel
Requirement
The feed wheel should jut
0.4 mm
out of the needle plate.
1
2
3
●
Swing out the roller presser.
●
Loosen screw
1.
●
Adjust the eccentric ( screw
3
), which is accessible through hole
2
, in accordance with
the
requirement.
●
Tighten screw
1.
Fig. 13 - 06
0,4 mm
74
76
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Points for the User
7
Operating and Specialist Personnel
8
Operating Personnel
8
Specialist Personnel
8
Danger
9
Proper Use
10
Specifications
11
PFAFF 3834-14/11 and -14/31
11
Model, Needle and Thread
11
Disposal of Machine
12
Transport, Packaging and Storage
13
Transportation to Customer's Premises
13
Transport Within the Customer's Premises
13
Disposal of the Packaging
13
Storage
13
Explanation of the Symbols
14
Controls
15
On/Off Switch
15
Pedal
15
Machine Head Keys
16
Knee Switch
17
Lever for Raising the Roller Presser
17
Control Panel
18
Mounting and Commissioning the Machine
19
Mounting
19
Adjusting the Table-Top Height
19
Fitting the Tilt Lock
20
Fitting the Machine Cover
20
Mounting the Flange Motor
21
Mounting the Flange Motor to the Bearing Plate
21
Mounting the Flange Motor to the Machine
21
Connecting the Plug-In Connections and Earth Cables
22
Mounting the Belt Guard of the Flange Motor
24
Connecting the Safety Switch
25
Checking the Function of the Start Inhibitor
25
Commissioning the Machine
26
Mounting the Spool Holder
26
Preparation
27
Inserting the Needle
27
Winding the Bobbin Thread, Adjusting the Thread Tension
28
Removing/Inserting the Bobbin Case
29
Threading the Bobbin Case / Adjusting the Bobbin Thread Tension
29
Threading the Needle Thread / Adjusting the Needle Thread Tension
30
Setting the Needle Thread Function
31
Selecting the Program Number
32
Setting the Stitch Lengths
33
Entering the Fullness Area for the Pedal Adjustment
34
Entering the Start and End Backtacks
35
Switching on / Adjusting the Bobbin Thread Control with the Stitch Count Function
36
Entering / Altering the Code Number
38
Adjusting the Control Panel
40
Sewing
41
Manual Sewing
41
Sewing with Fixed Programs
43
Programmed Sewing
45
Fullness Adjustment
47
Selecting the Garment Size
47
Program Interruption
48
Error Messages
48
Input
49
Seam Program Input
50
Basic Settings for Seam Program Input
50
Seam Program Input with the "Creating/Adjusting a Program" Function
52
Seam Program Input with the "Teach-In" Function
54
Examples of How to Create Seam Programs
56
Example of a Seam Program Input Using the "Creating/Adjusting a Program" Function
56
Example of a Seam Program Input Using the "Teach In" Function
58
Seam Program Administration
63
Care and Maintenance
65
Cleaning
65
Oiling the Hook
66
Checking the Oil Levels
66
Lubricating the Bevel Gears
67
Adjustment
68
Notes on Adjustment
68
Tools, Gauges and Other Accessories
68
Abbreviations
68
Adjusting the Basic Machine
69
Positioning the Needle in the Direction of Sewing
69
Positioning the Needle Across the Direction of Sewing
70
Preadjusting the Needle Height
71
Needle Rise, Hook-To-Needle Clearance, Needle Height and Needle Guard
72
Height and Stroke of the Bobbin Case Opener
74
Height of the Feed Wheel
75
Clearance between Roller Presser and Feed Wheel
76
Roller Presser
77
Puller (Only on the PFAFF 3834-14/31)
78
Roller Presser Height Level Switch
79
Automatic Presser Foot Lift
80
Retainer
81
Thread Check Spring
82
Bobbin Winder
83
Roller Presser Pressure
84
Locking the Set Value Transmitter
85
Lubrication
86
Re-Engage Safety Coupling
87
Adjusting the Thread Trimmer -900/81
88
Resting Position of the Roller Lever / Radial Position of the Control Cam
88
Position of the Thread Catcher Holder
89
Distance between Thread Catcher and Needle Plate
90
Position of the Thread Catcher
91
Knife Position and Knife Pressure
92
Bobbin Thread Retaining Spring
93
Bobbin Thread Retaining Spring
94
Manual Cutting Test
94
Parameter Settings
95
Overview of the Parameter Functions
95
Example of a Parameter Input
96
List of Parameters
97
Explanation of the Error Messages
100
Warning Messages
100
Carry out a Cold Start
101
Internet Update of the Machine Software
102
Service Menu
103
Wearing Parts
104
Circuit Diagrams
106
