Mounting and commissioning the machine
8 - 7
8

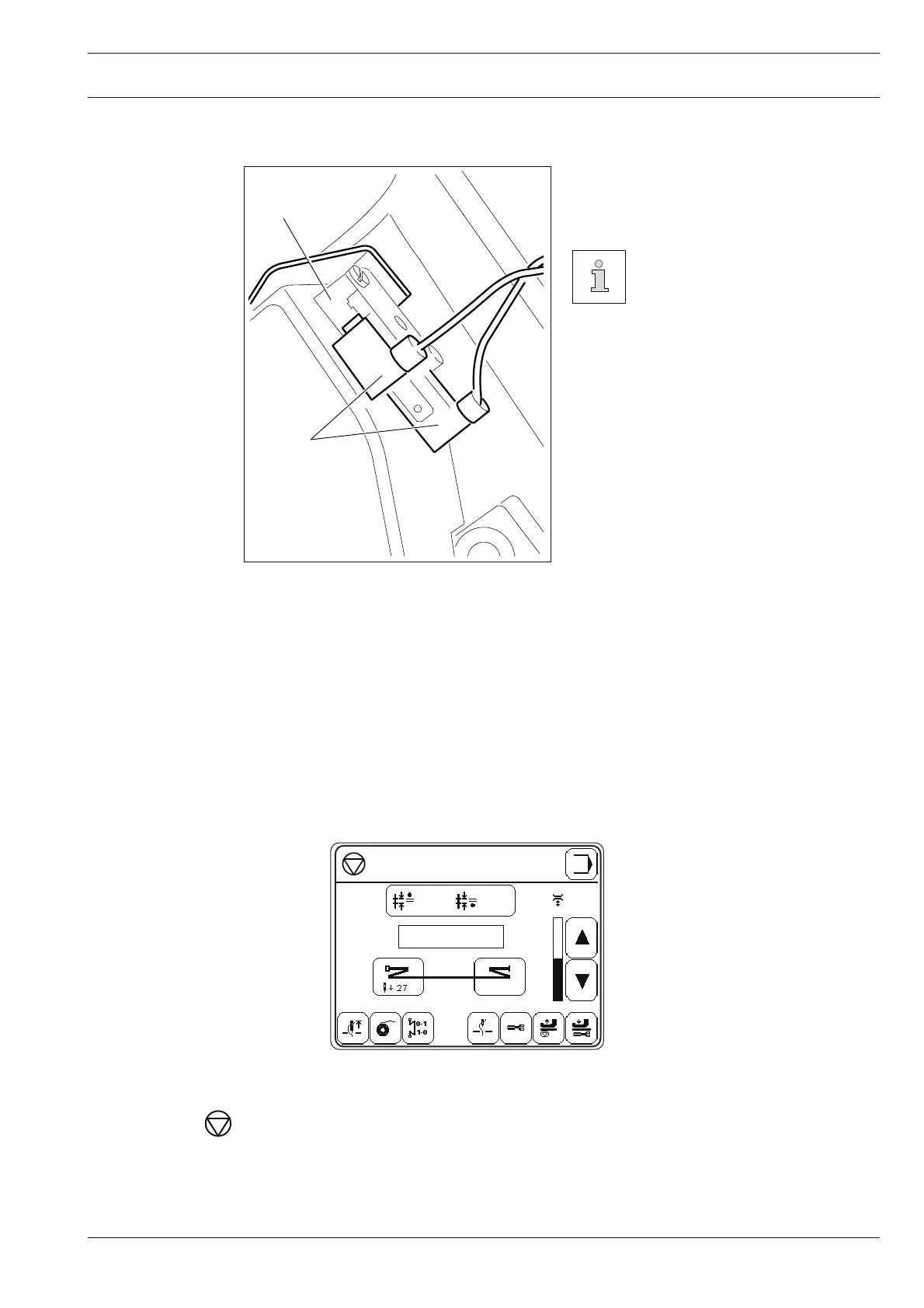

.02.06 Connecting the safety switch
● Connect plug 1 of safety switch 2 as
shown in Fig. 8-09.
When the sewing head is tilted
back, the safety switch
prevents the machine starting
when the main switch is on.
Fig. 8 - 09
1
2
8.02.07 Checking the function of the start inhibitor
● Switch the machine on at the main switch and tilt back the sewing head.
The "stop" symbol must appear on the control panel.
● If the message does not appear, check the setting of the safety switch.
● Set the sewing head upright.
The machine is ready for operation again.
