Pfaff 591

Adjustment
11 - 58
11.08.02 Coupling for roller presser drive
Requirement
There must be a distance of 3 mm between coupling half 1 and locking disc 3 of the drive
mechanism.

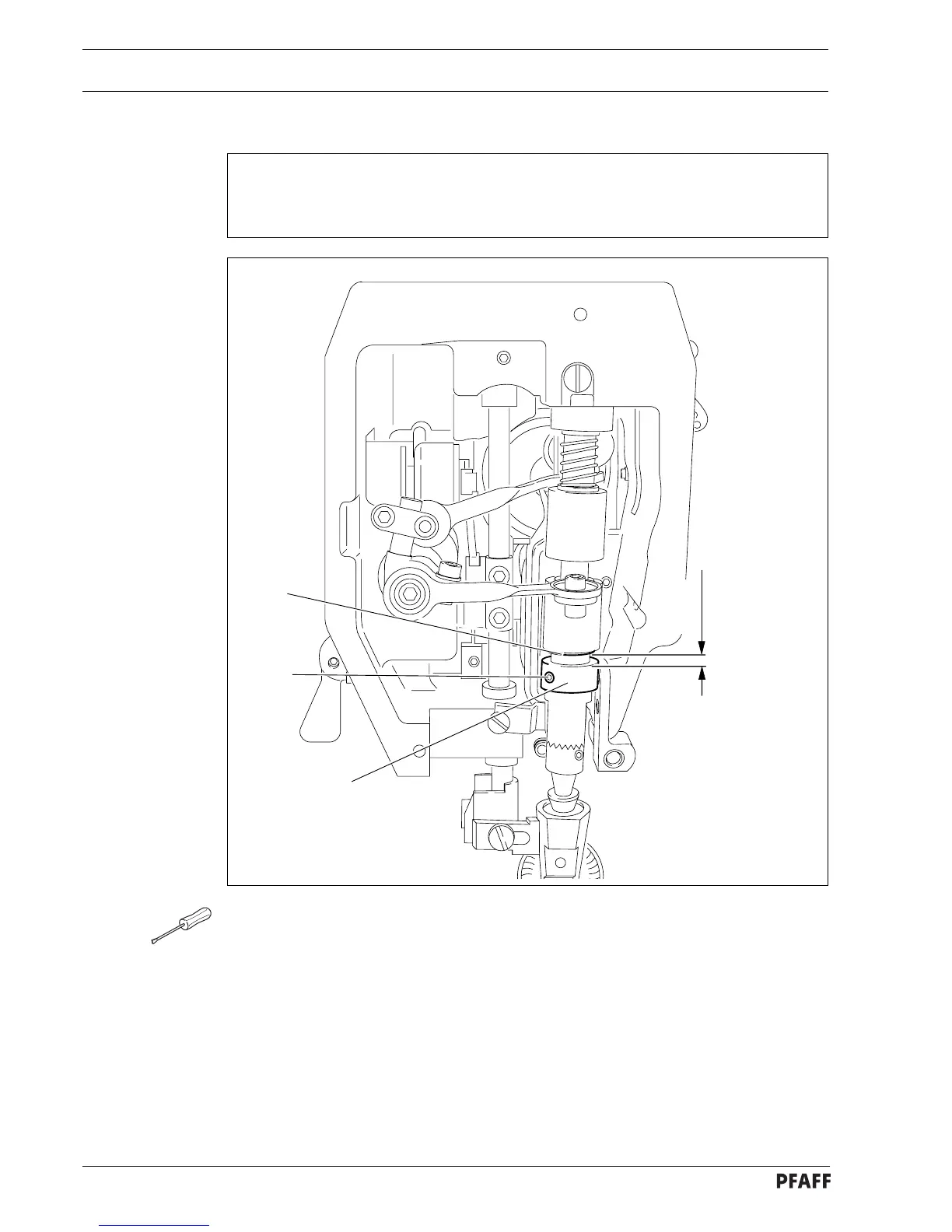

Fig. 11 - 54
● Adjust coupling half 1 (screw 2) according to the requirement.
1
2
3 mm
3
