Adjustment
11 - 22
11
.04.18

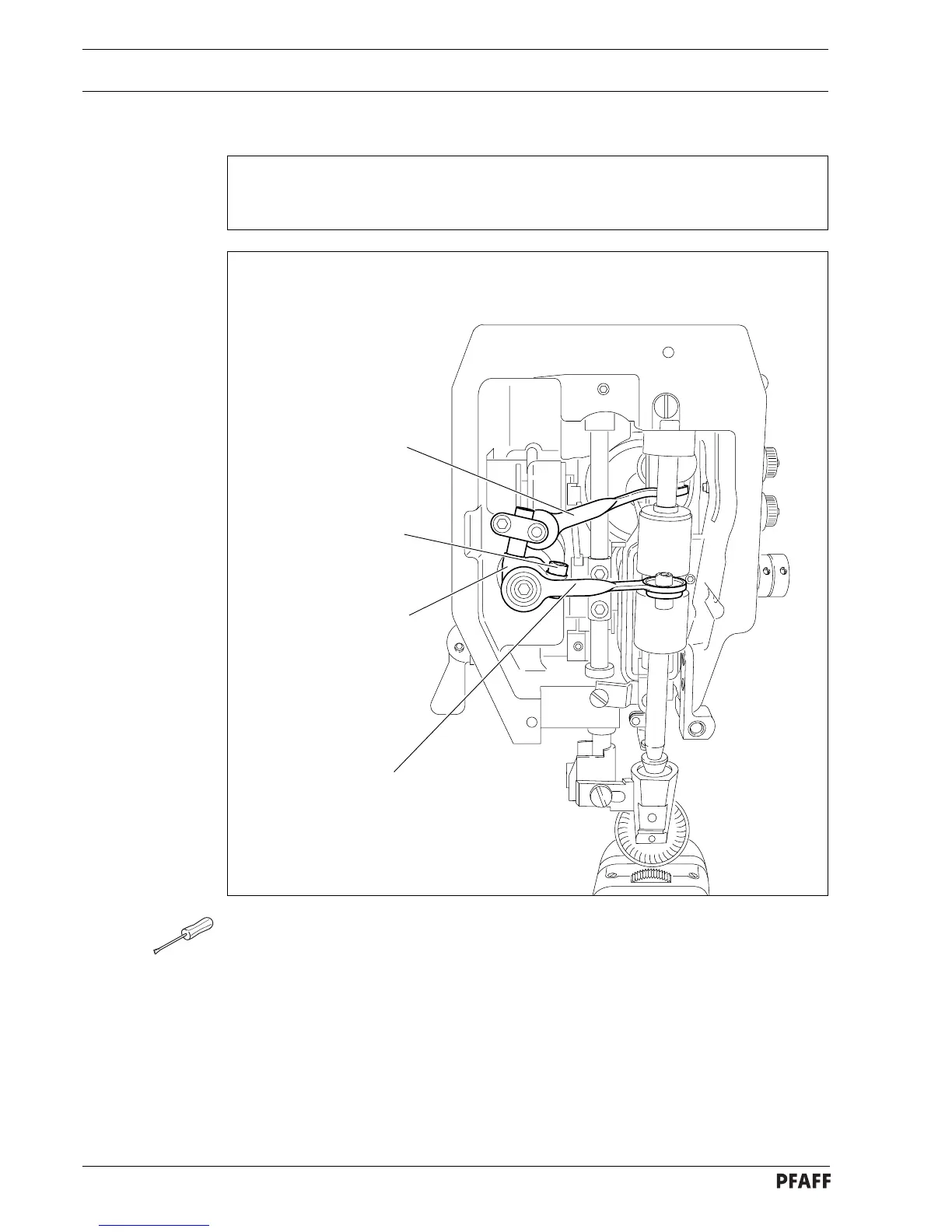

Shaft crank to roller presser drive
Requirement
When the maximum stitch length is set, the linkage rods
3
and
4
must be able to move
freely at their left and right point of reversal when the balance wheel is turned.
●
Set the maximum stitch length.
●
Twist clamp crank
1
(screw
2
) according to the
requirement
.
Fig. 11 - 18
2
1
3
4
67
69
