Adjustment
11 - 20
61-037
11
.04.16

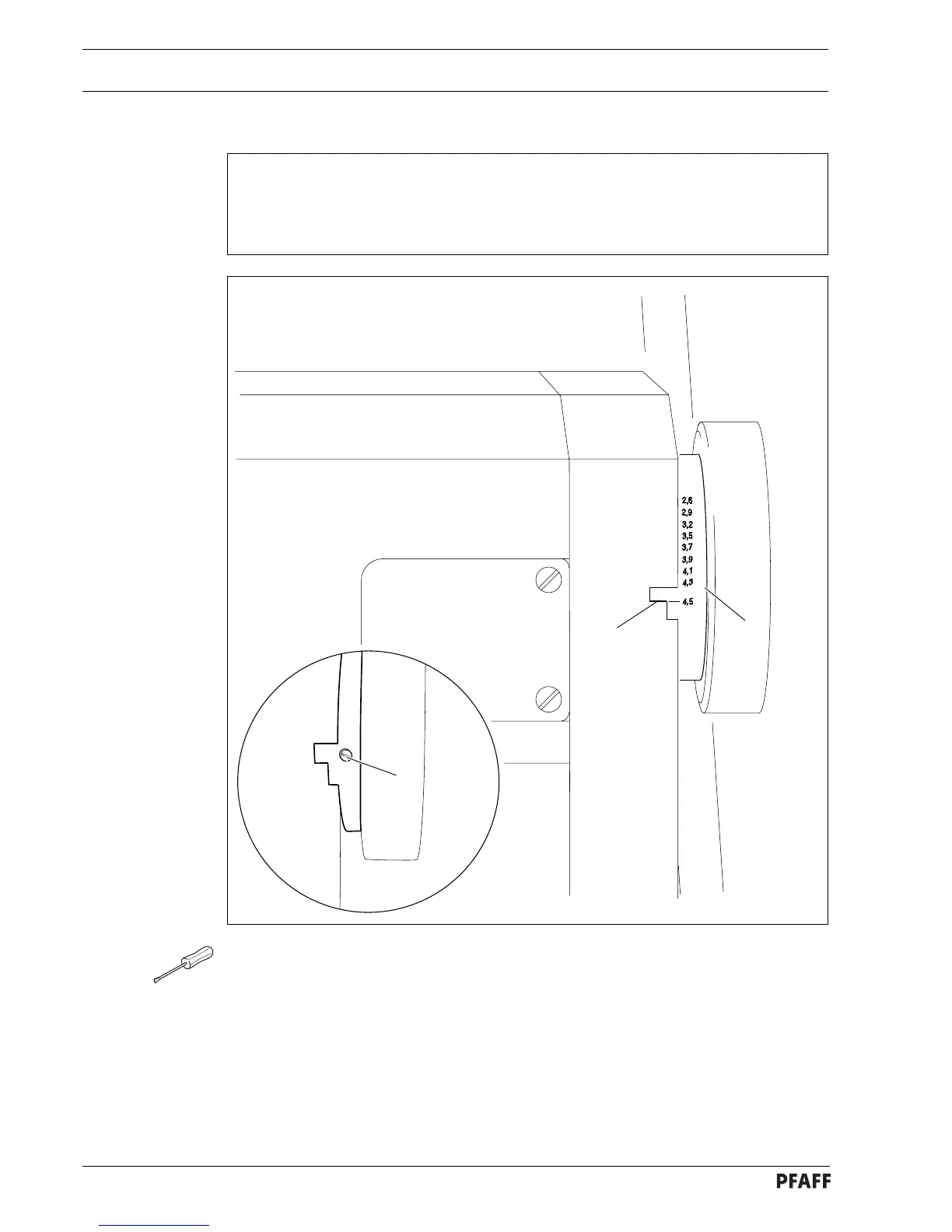

Stitch length scale disk
Requirement
When the stitch length control device is locked in position, and the maximum stitch length
is set, the marking line of the highest number on the scale disk
1
must be opposite the
lower edge
3
of the belt guard recess.
3
●
Set the maximum stitch length.
●
Turn the scale disk
1
(screws
2
) according to the
requirement
.
1
61-038
2
Fig. 11 - 16
65
67
