Adjustment
11 - 32
61-047
11.04.28 Bobbin winder
Requirements
1. When the bobbin winder is engaged, the winding spindle must be driven reliably. When
the bobbin winder is disengaged, the friction wheel 5 must not be moved by drive wheel 1.
2. The bobbin winder must switch itself off, when the filled thread is about 1 mm from the
edge of the bobbin.
2
1
5

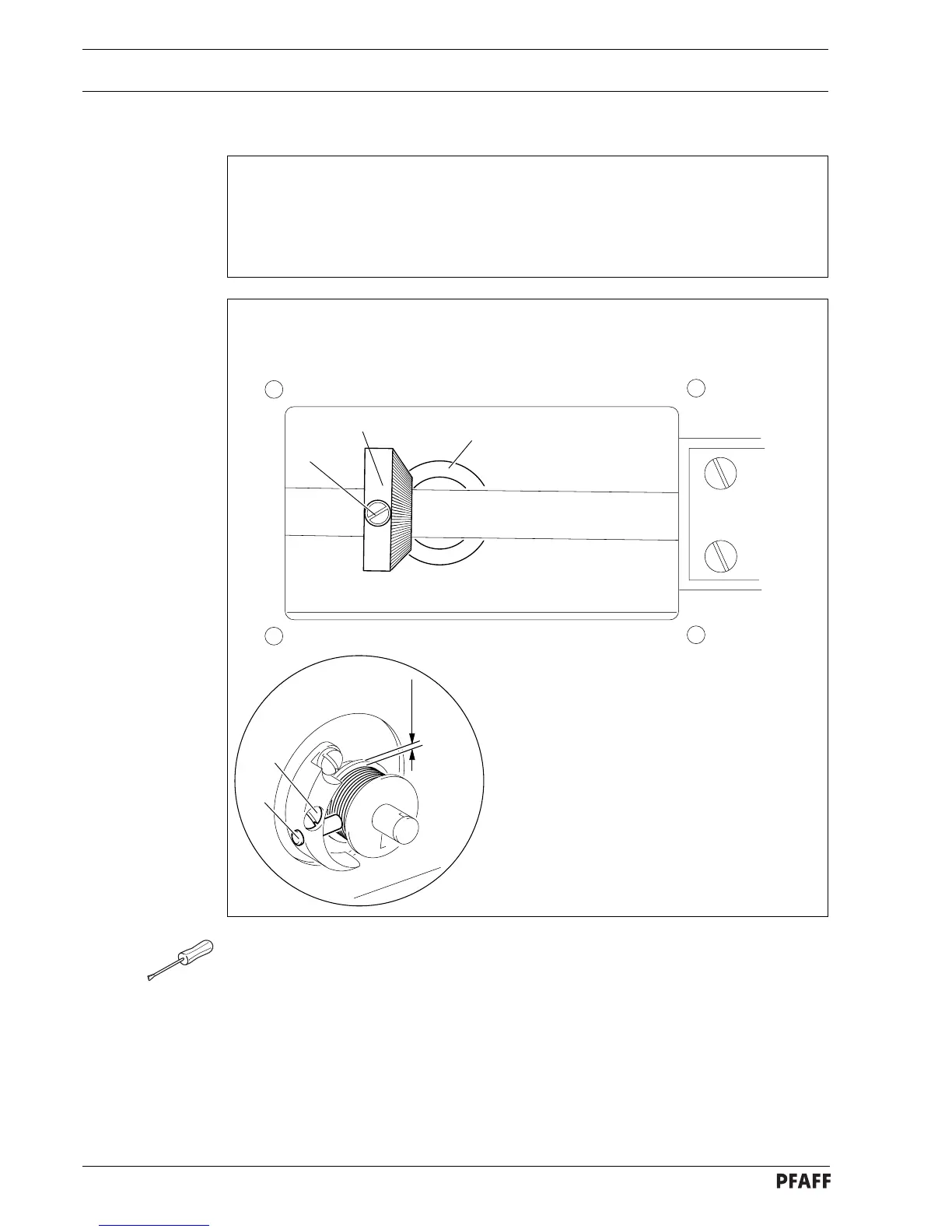

Fig. 11 - 28
● Position drive wheel 1 (screws 2) according to requirement 1.
● Position bolt 3 (screw 4) according to requirement 2.
1 mm
4
3
