Pfaff 591

Adjustment
11 - 16
11.04.12 Height of the feed wheel on the PFAFF 571
Requirement
1. When pressure is applied to the feed wheel 4, it should protrude from the needle plate
by tooth height (approx. 0.8 mm)
2. When no pressure is applied to the feed wheel 4 , it should have a vertical play of
approx. 0.3 mm.

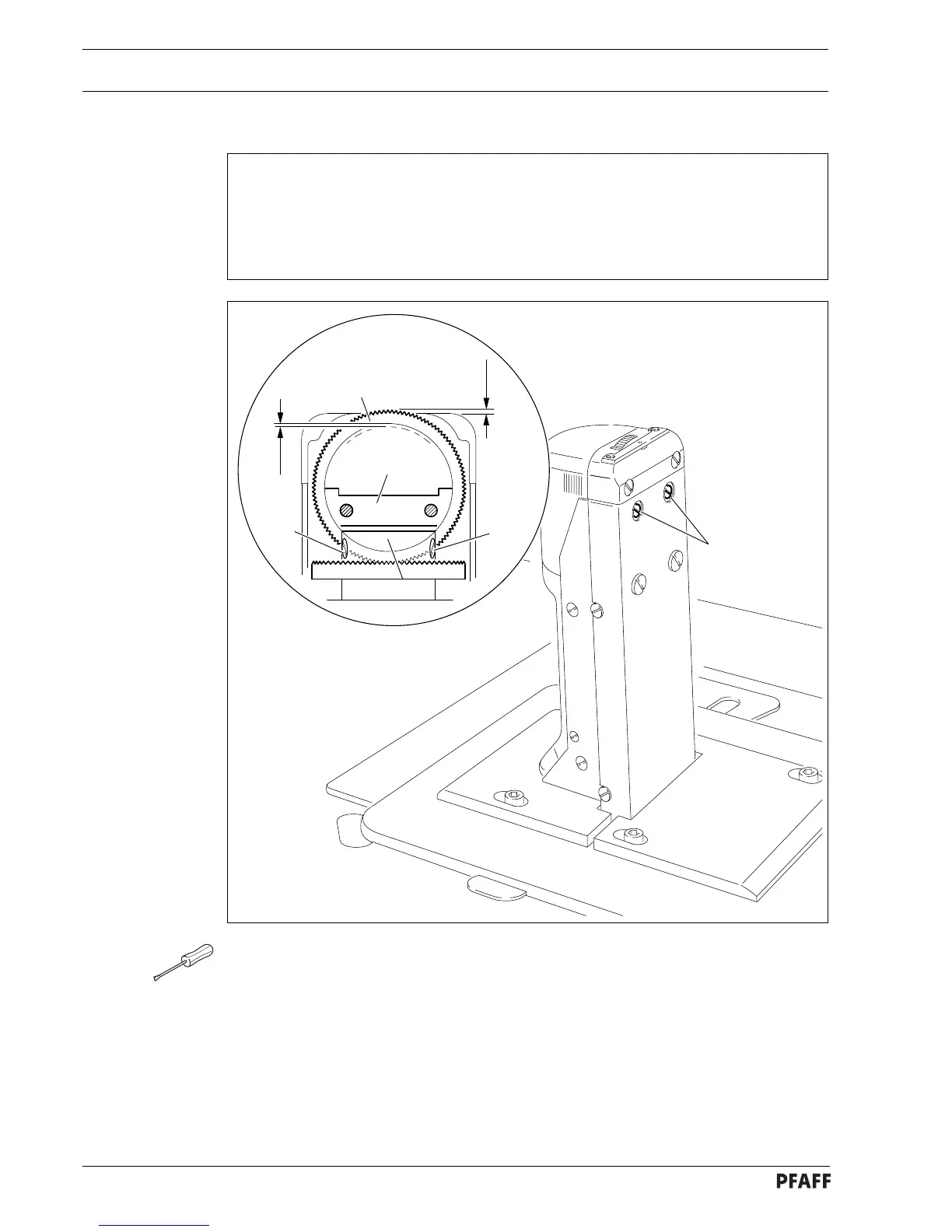

Fig. 11 - 12
● Swing out the roller presser.
● Loosen screws 1 and 2.
● Adjust drive wheel 3 according to requirement 1, taking care to see that the teeth of drive
wheel 3 and feed wheel 4 lock into each other properly.
● Tighten screws 1.
● Adjust guide 5 according to requirement 2 and tighten screws 2.
2
3
0.8 mm
0.3 mm
5
4
1
1
