Installation and commissioning
8 - 2
61-012
61-011
Switch off the machine!
Danger of injury if the machine
is the machine is started
accidentally!
● Screw on the tilt lock 1, provided in the
accessories, using screw 2.
Do not operate the machine
without tilt lock 1. Danger of
crushing between sewing head
and table top!

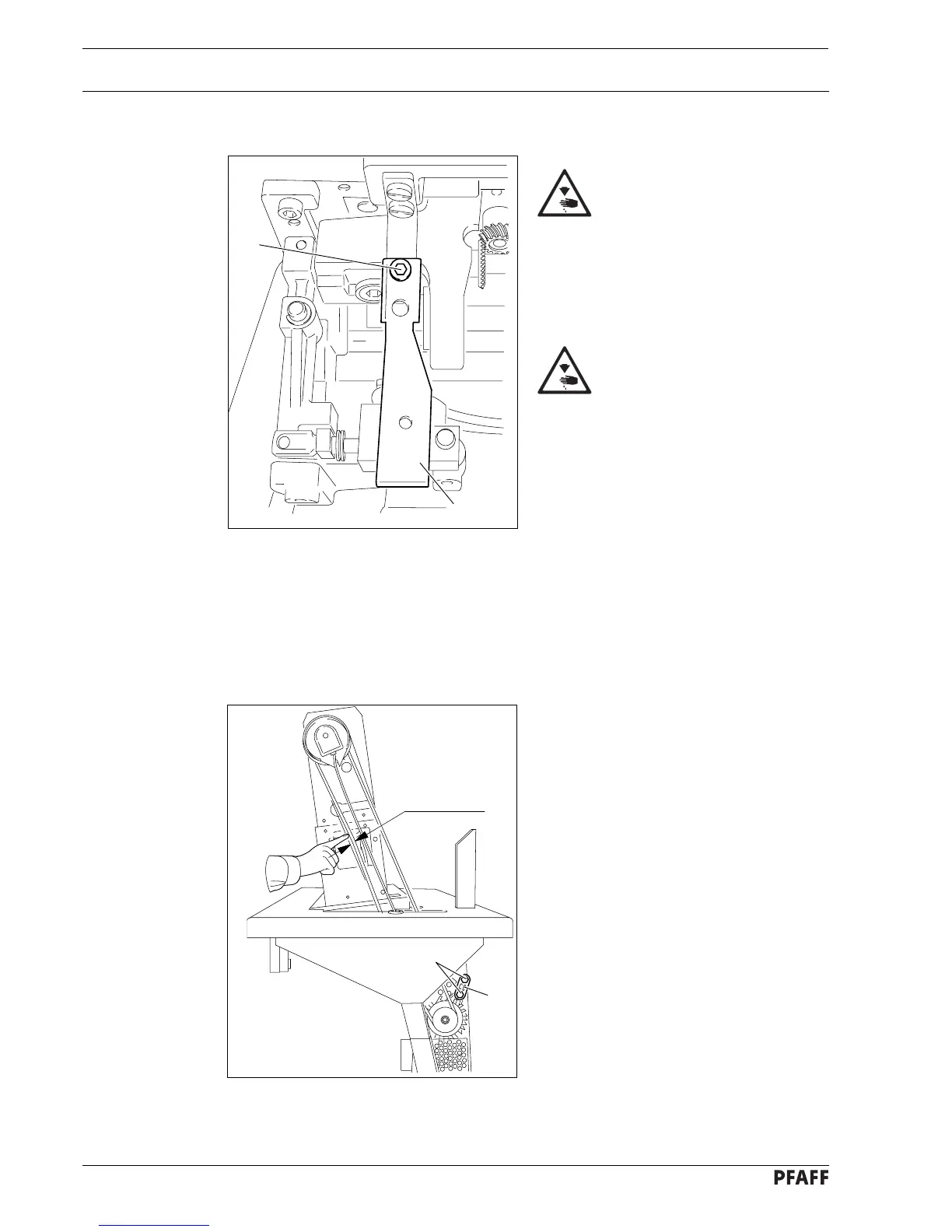

8.01.02 Fitting the tilt lock
Fig. 8 - 02
1
2
8.01.03 Adjusting the V-belt tension (does not apply to machines with flange motor)
● Loosen the nuts 1.
● Set tension of v-belt using motor bracket 2
.
● Tighten nuts 1.
Fig. 8 - 03
1
2 cm
2
