Pfaff 591 User Manual

Adjustment
11 - 10
11.04.07 Needle rise, hook clearance, needle height and needle guard on the PFAFF 591
Requirement
In the needle rise position (see table) and with the stitch length setting "0,8", the following applies:
1. the hook point must be at needle centre with a hook-to-needle clearance of
0.05 to 0.1 mm;
2. the top of the needle eye must be 0.8 to 1.0 mm below the hook point;
3. the needle guard 6 must touch the needle lightly.
● Set stitch length at "0.8".
● Loosen screws 1, 2, 3, 4 and 5.
● Move needle bar into version corresponding position (see table).

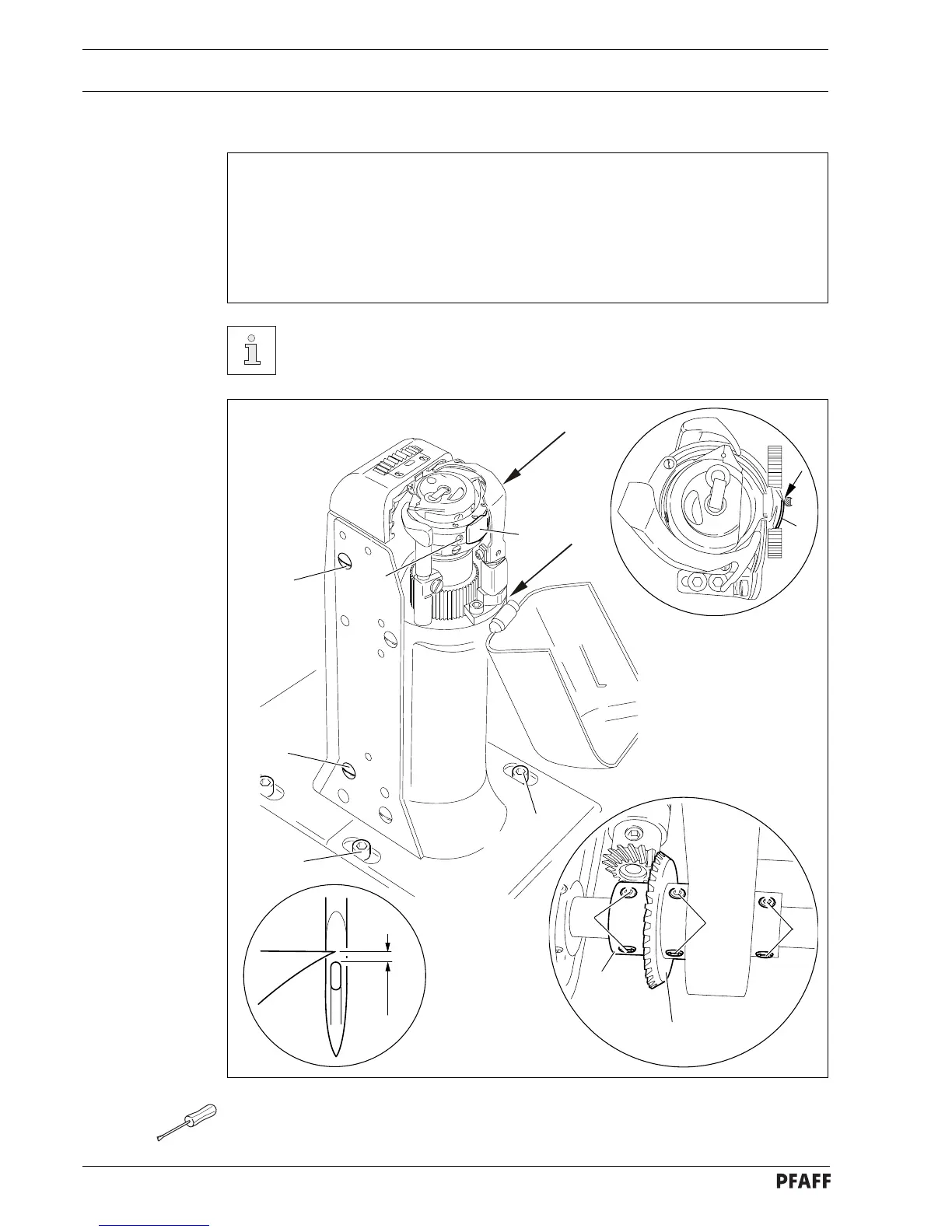

Fig. 11 - 07
61-028
3
1
2
7
8
0.8 - 1 mm
6
61-088
6
4
5
5
9
6
4
5
5
Needle rise position
Model A and B: 1.8 mm after BDC of the needle bar.
Model C: 2.0 mm after BDC of the needle bar.
