Adjustment
11 - 11
10
11
● Set hook point at needle centre, making sure that the needle is not deflected by needle
guard 6.
● Adjust needle height according to Requirement 2.
● Adjust hook post according to Requirement 1 and tighten screws 4.
● Making sure that there is some play in the bevel gear, tighten screws 2.
● With retaining collar 7 touching bevel gear 8 tighten screws 1.
● Adjust needle guard 6 (screw 9) according to requirement 3.

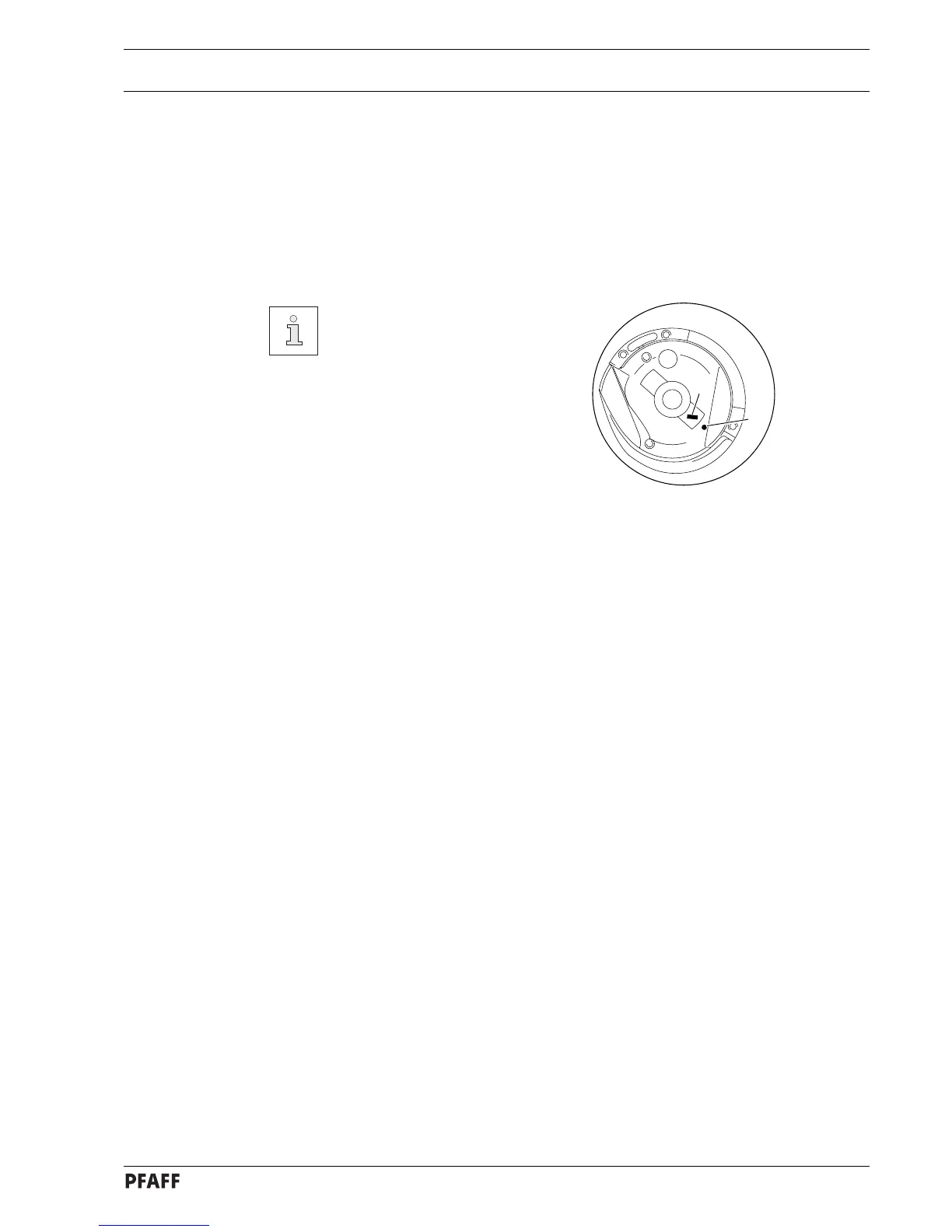

When the hook is changed, make sure
that the markings 10 and 11 are both
on one side.
