Installation and commissioning
8 - 4

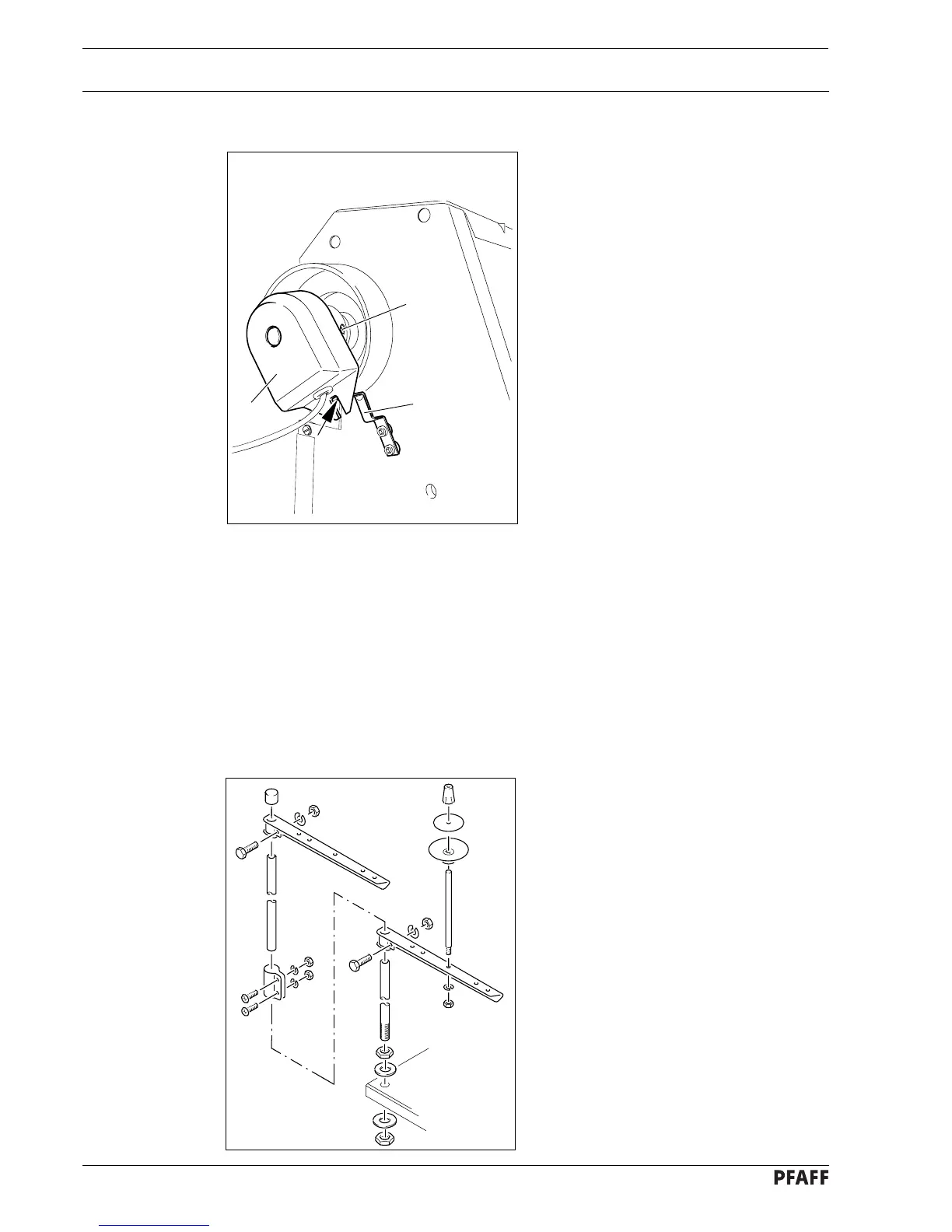

8.01.06 Mounting the synchronizer (does not apply to machines with flange motor)
● Attach position stop 2
(part no.
91-141 688-90) with two screws.
● Slide synchonizer 1 onto the shaft so that
position stop 2 is located in the groove of
synchronizer 1 (see arrow).
● Slightly tighten screws 3.
● Insert synchronizer plug into the coupling
socket of the control box.
● Adjust synchronizer 1, see Chapter
11.04.01 Adjusting the synchronizer
Fig. 8 - 06
3
1
2
8.01.07 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8-07.
● Afterwards insert the stand in the hole in
the table top and secure it with the nuts
provided.
Fig. 8 - 07
