Pfaff 591 User Manual

Installation and commissioning
8 - 5
8.02 Mounting the flange motor
8.02.01 Mounting the flange motor to the bearing plate

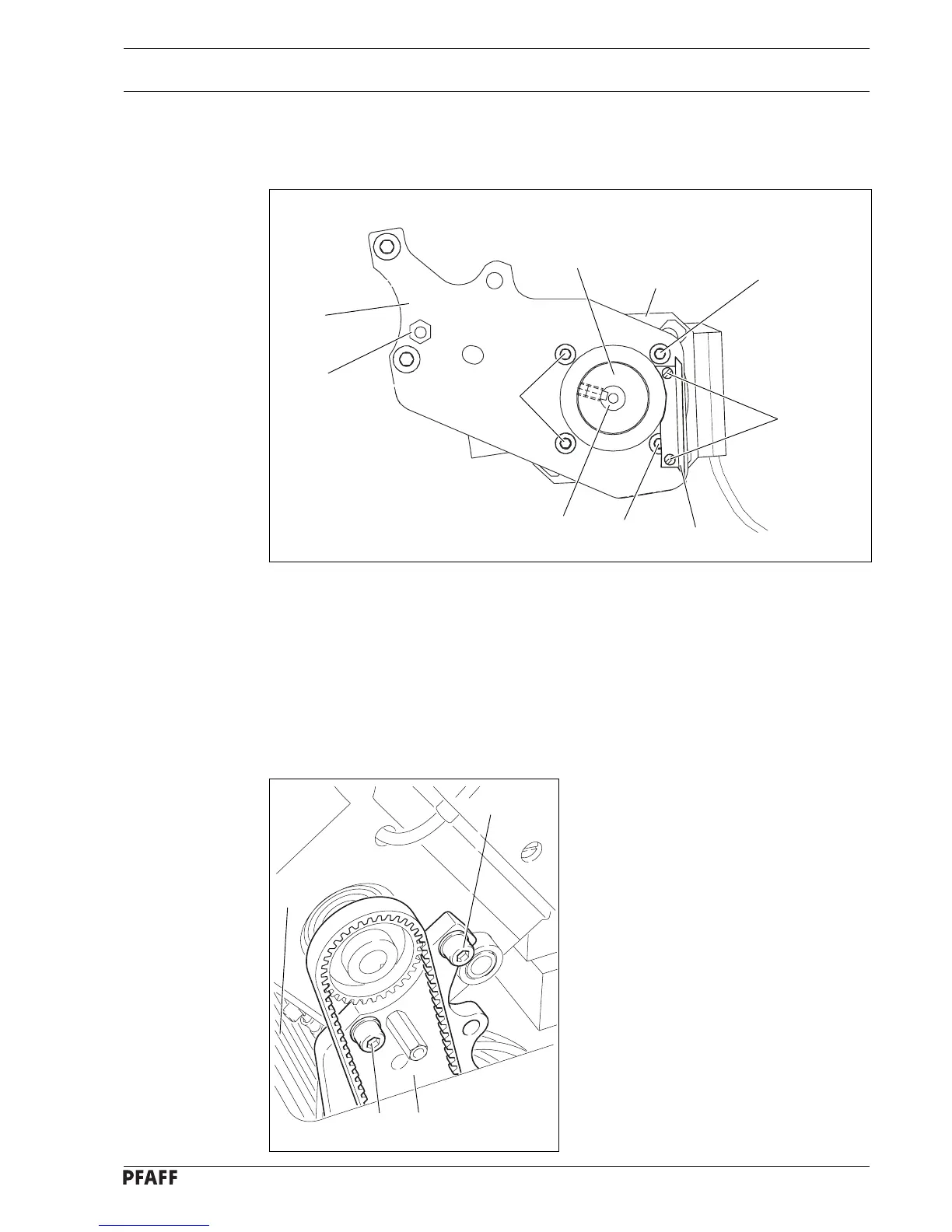

Fig. 8 - 08
1
3
2
3
● Attach bearing plate 1 to motor 2 with screws 3 as shown in Fig. 8 - 08.
● Remove the wedge from motor shaft 4.
● Attach angle bracket 5 with screws 6.
● Fit toothed belt wheel 7 to the motor shaft 4, so that the point of the screw is located in
the groove of the motor shaft.
● Screw threaded stud 8 into the bearing plate 1.
4
5
8
3
6
7
61-107
8.02.02 Mounting the flange motor to the machine
● Attach bearing plate 1 of motor 2 to the
machine case with screws 3 (only tighten
screws 3 slightly).
Fig. 8 - 09
1
3
2
3
