Installation and commissioning
8 - 6

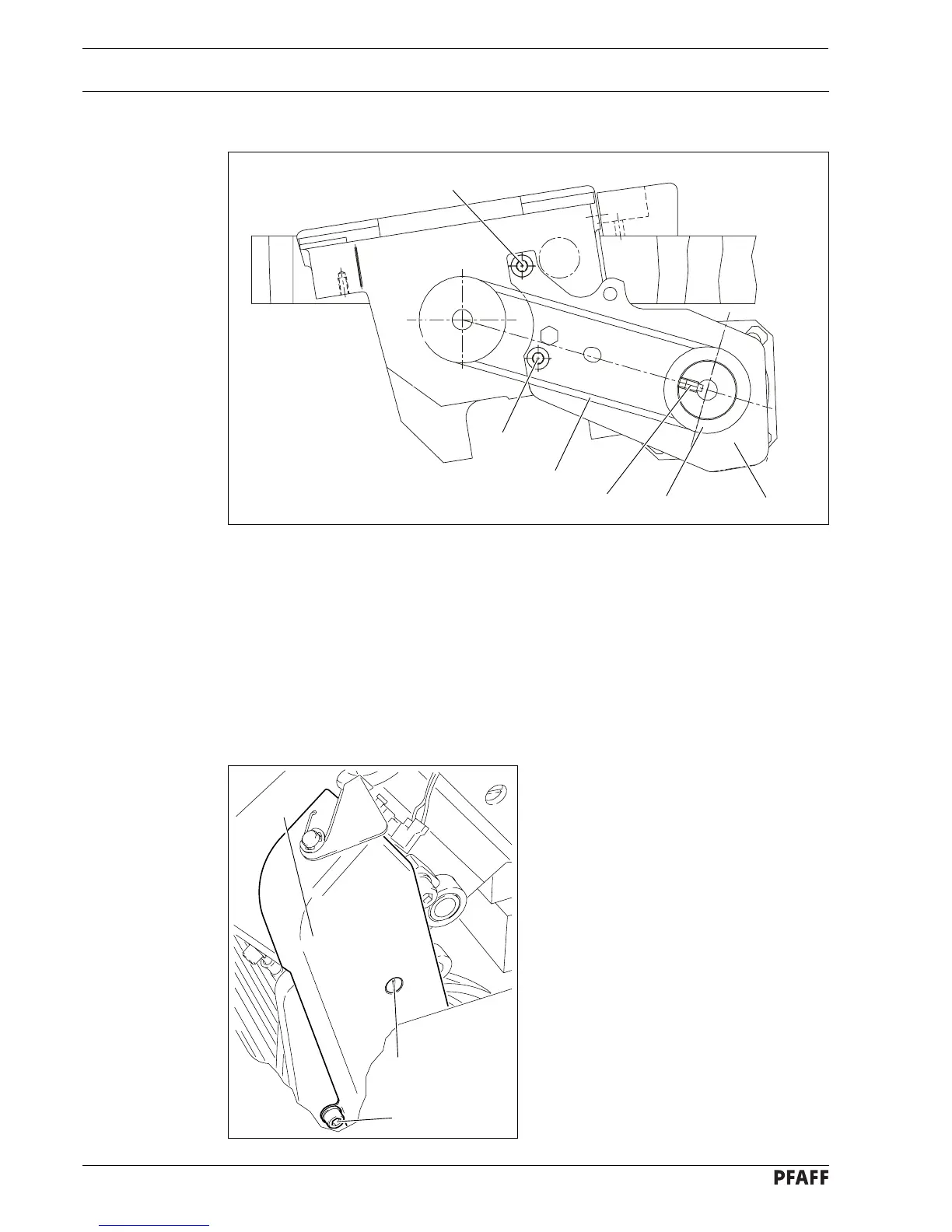

8.02.04 Mounting the belt guard of the flange motor
● Attach belt guard 1 with screws 2 and 3.
Fig. 8 - 11
1
2
3
8.02.03 Mounting the toothed belt and adjusting the tension
● Bring the take-up lever to b.d.c.
● Turn toothed belt wheel 1 until screw 2 is located in the position shown in Fig. 8 - 10.
● In this position fit toothed belt 3.
● Swing the bearing plate 4 of the motor, so that the toothed belt is tensioned.
● In this position tighten screws 5.
Fig. 8 - 10
21
3
5
5
4
