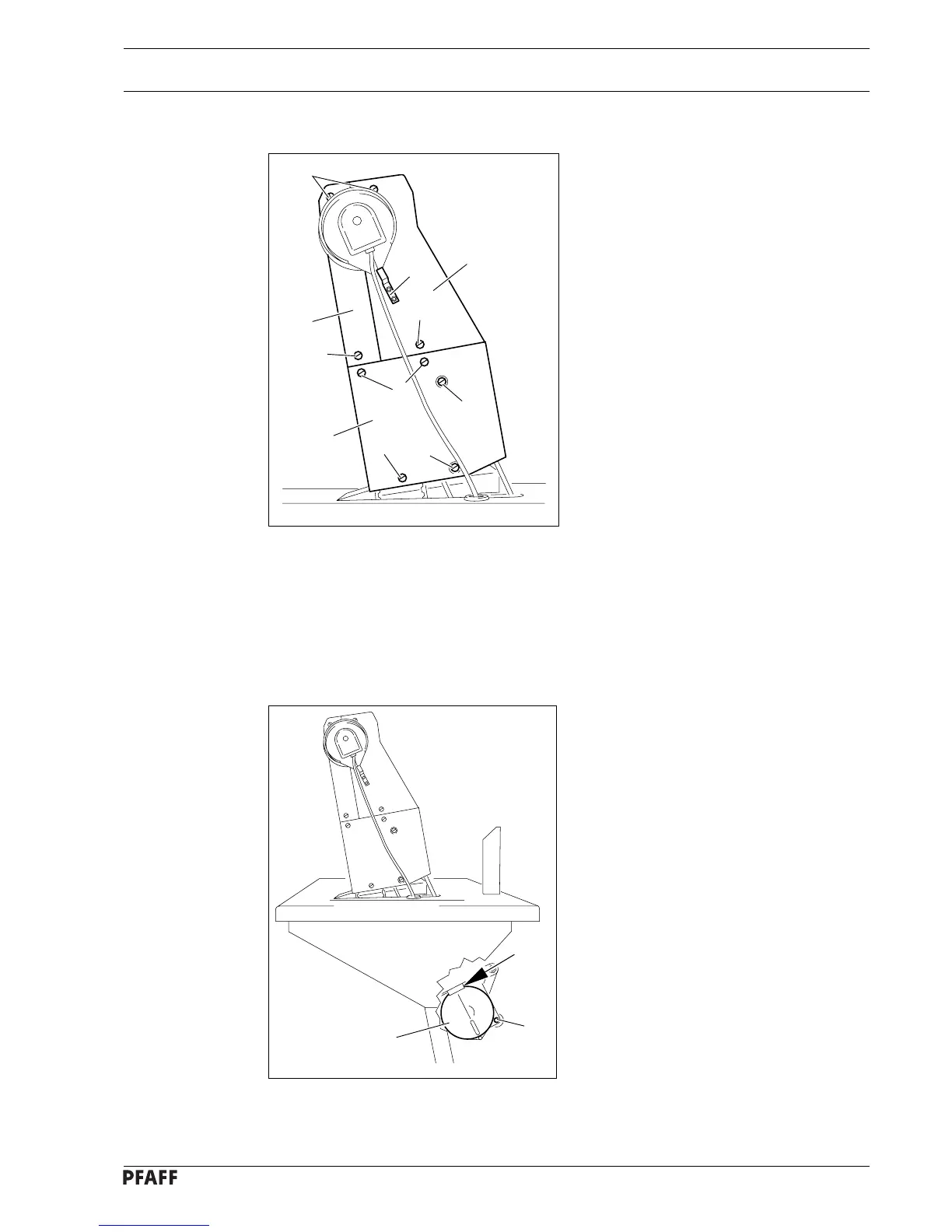

Fig. 8 - 04
1
2
3
4
4
6
6
7
7
5
4
8.01.04 Mounting the upper V-belt guard
● Screw position stop 1 to the right side of
the belt guard 2.
● Attach the right and left belt guard
sections 2 and 3 with screws 4.
● Slide the slots of the bottom part 5 of the
belt guard behind the heads of screws 6.
Attach with screws 7 and then tighten
screws 6 through the boreholes.
Fig. 8 - 05
8.01.05 Mounting the lower V-belt guard (does not apply to machines with flange motor)
● Adjust the v-belt guard 1 so that the
motor pulley and v-belt run freely.
● Tighten screws 2. Fig. 8-05 shows a
Quick motor.
1
2
2
