Adjustment
11 - 61
11
.08.05

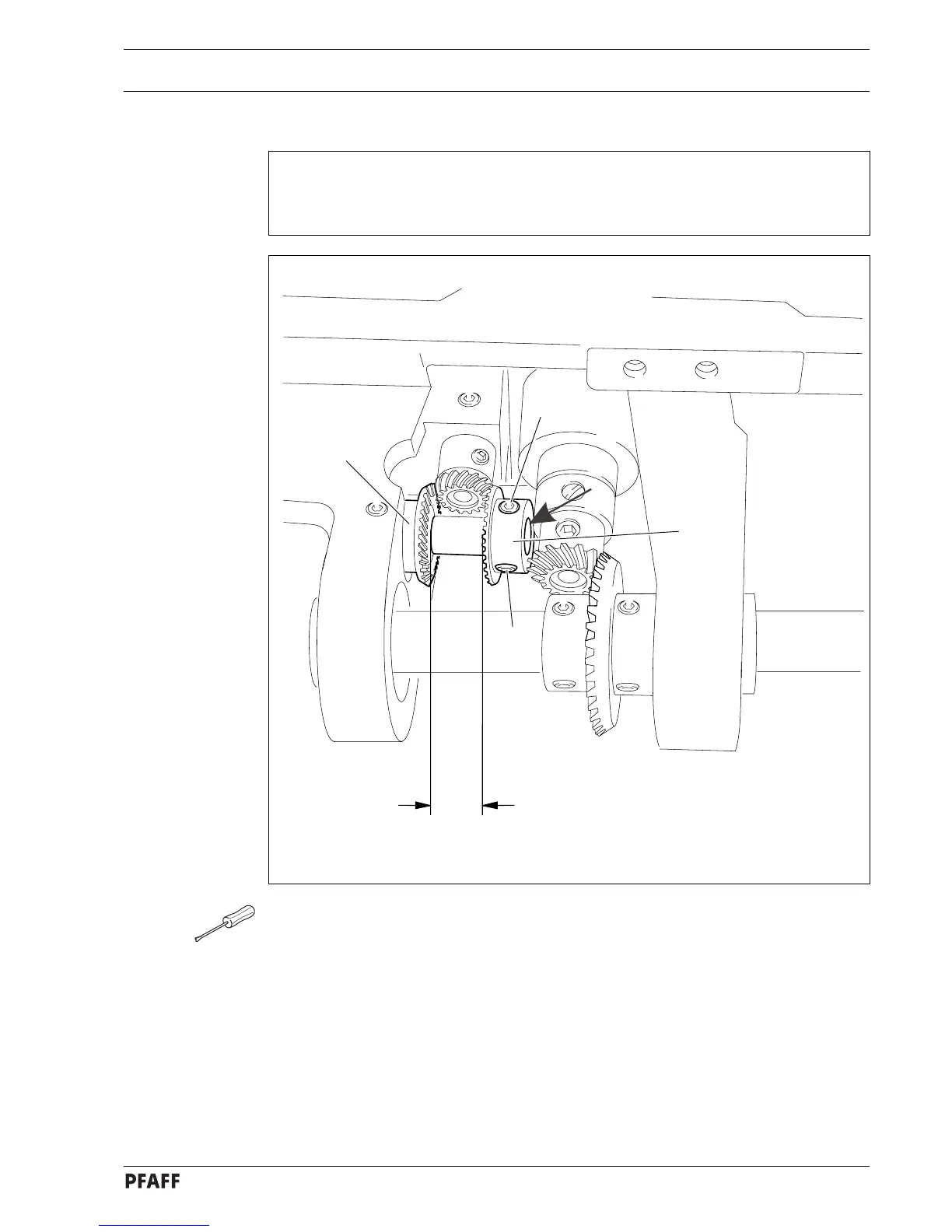

Bevel gears for feed wheel drive (on the PFAFF 591)
Requirements
1.
The right side of bevel gear
1
must be flush with its drive shaft (see arrow).
2.
There must be a distance of
13 mm
between bevel gear
3
and bevel gear
1
.
Fig. 11 - 57
●
Adjust bevel gear
1
(screws
2
) according to
requirement 1
.
●
Adjust bevel gear
3
(screws
4
) according to
requirement 2
.
13 mm
3
2
2
1
106
108
