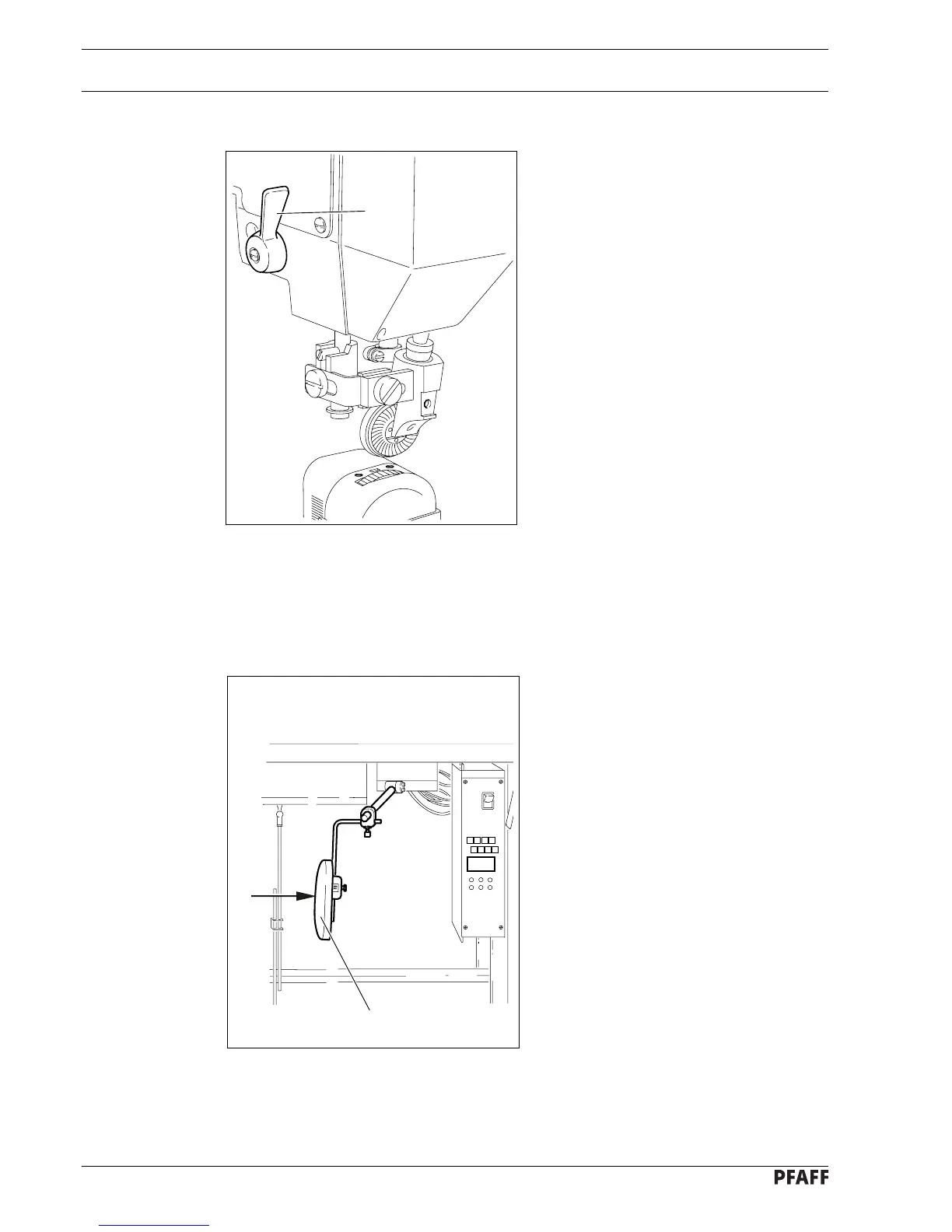

Controls
7 - 3
61-068
61-006
7
.05
Lever for lifting roller presser
●
The roller presser can be raised by turning
lever
1
.
Fig. 7 - 05
1
7
.06
Knee lever
●
The roller presser can be raised by
pressing the knee lever
1
in the direction
of the arrow.
1
Fig. 7 - 06
