Pfaff 591

Adjustment
11 - 59
61-096
2
2
1
11.08.03 Bevel gears for feed wheel drive (on the PFAFF 571 and 574)
Requirements
1. Bevel gear 3 must fit well on the left side.
2. There must be a distance of 14 mm between bevel gear 3 and bevel gear 5.

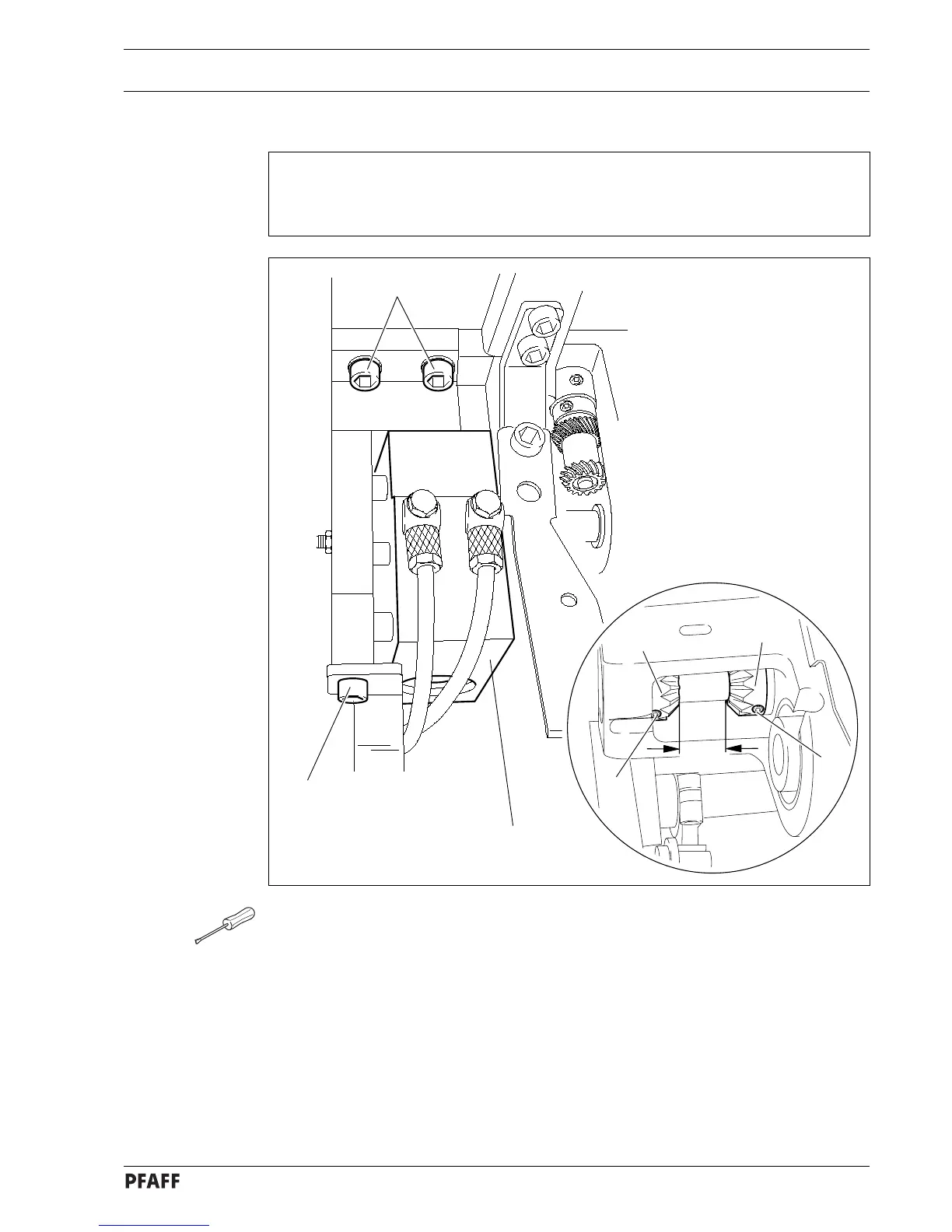

Fig. 11 - 55
● Remove control unit 1 (screws 2).
● Adjust bevel gear 3 (screws 4) according to requirement 1.
● Adjust bevel gear 5 (screws 6) according to requirement 2.
3
6
5
4
14 mm
