.05 Adjusting the edge trimmer -725/04
11.05.01 Position of the knife holder on model 571
Requirements
When the thread trimmer is engaged and the adjusting wheel has been turned to its highest
position
1. the knife holder 2 must be parallel to the post and
2. the top edge of the needle plate must be in the centre of the angular knife opening.
● Turn the adjusting wheel 1 to its highest position and engage edge trimmer.
● Adjust knife holder 2 (screw 3) according to the requirements.

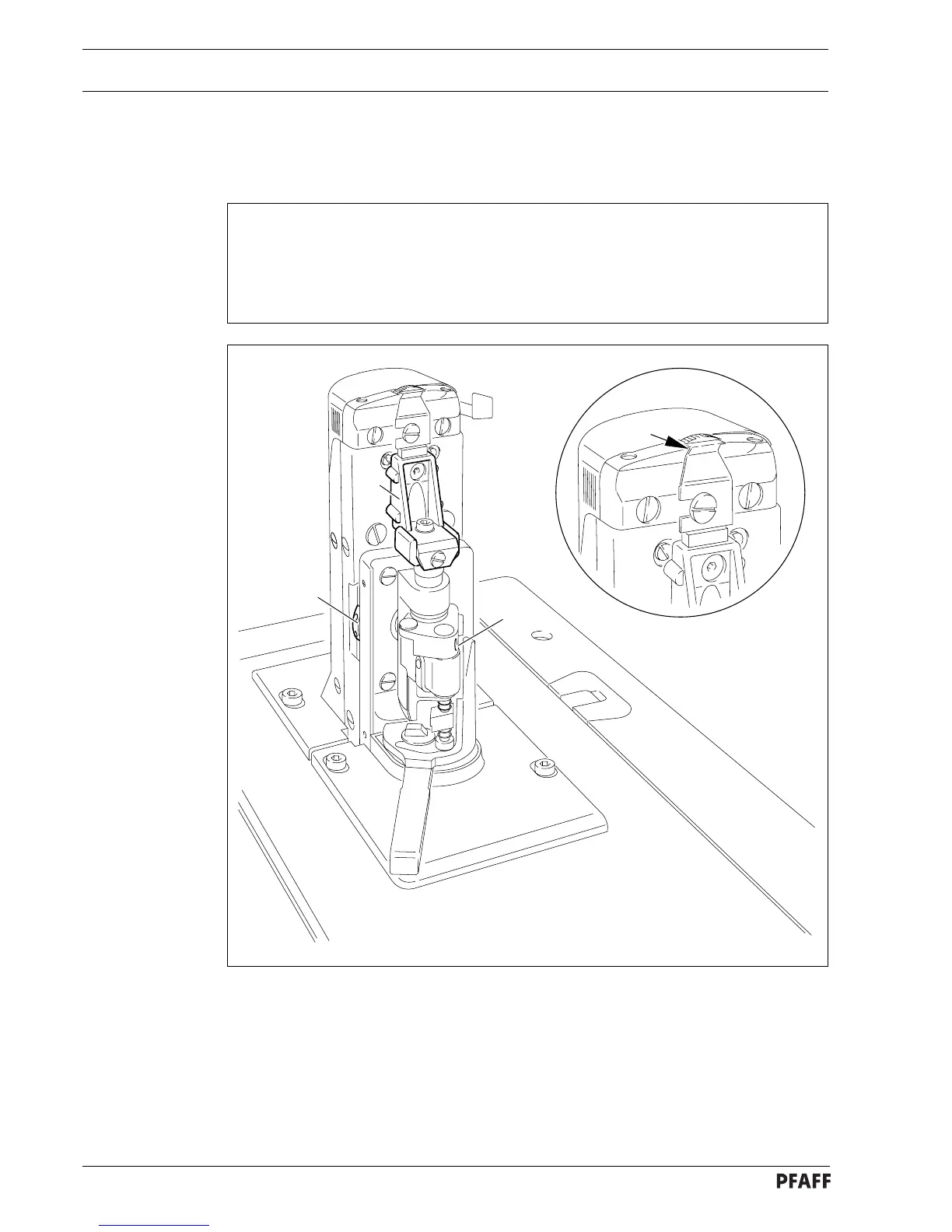

Fig. 11 - 32
61-050
1
2
3
61-051
