11.04.24 Knee lever
Requirements
1. Before the roller presser rises, the knee lever must still have a slight play.
2. When the knee lever is raised as far as possible, the lever for the roller presser must
drop automatically.
3. Knee lever bar 5 must be at an angle of approx. 75° to the bedplate.
4
6
2
5
75°
● Adjust screw 1 (nut 2) according to requirement 3.
● Adjust screw 3 (nut 4) according to requirement 2.
● Set bar 5 (Screws 6) according to requirement 3.

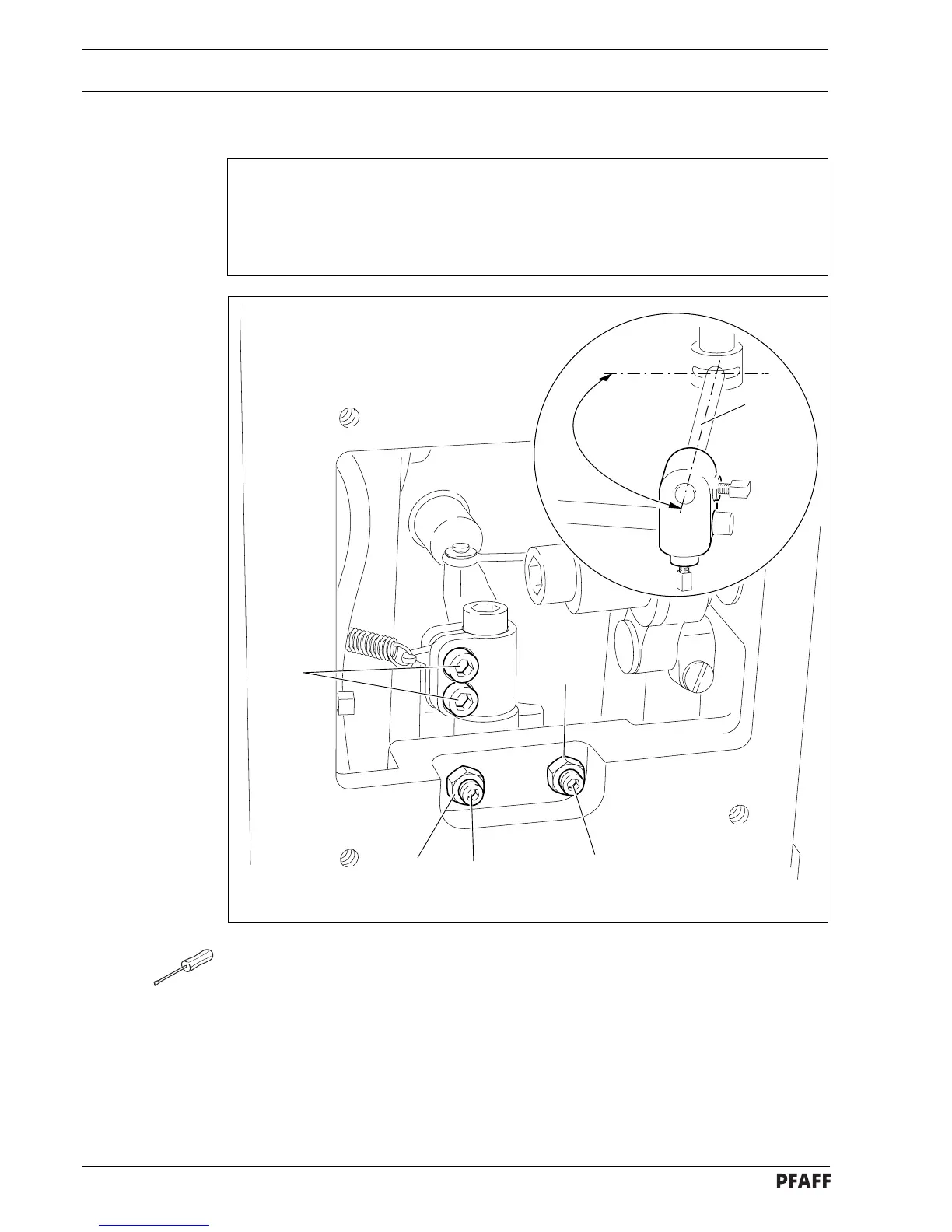

Fig. 11 - 24
1
3
