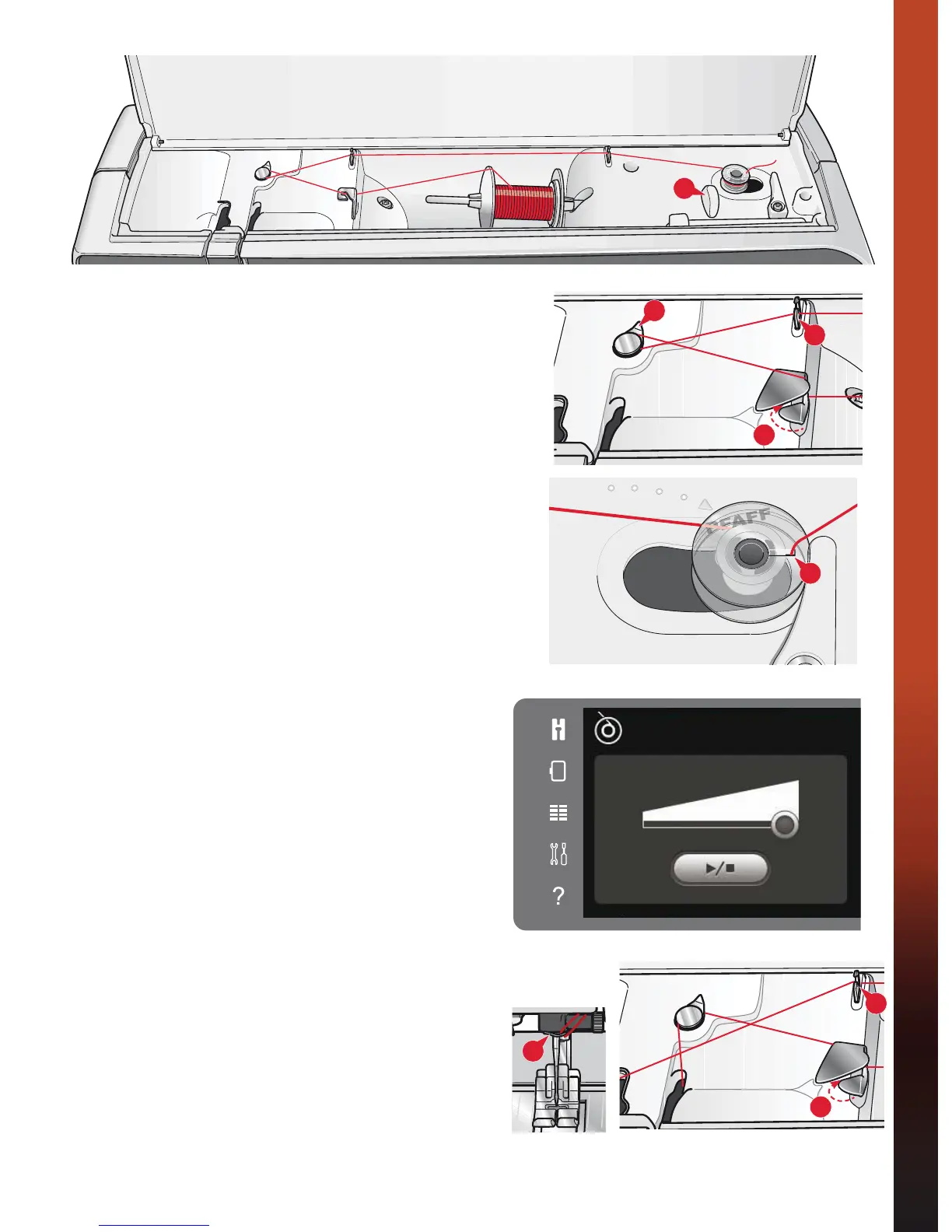

Bobbin winding
Winding from horizontal position
1. Place an empty bobbin on the bobbin winder
spindle, with the logo facing up. Use only the
original PFAFF
®
bobbins approved for this model.
2. Place the thread spool on the spool pin in
horizontal position. Slide a spool cap tightly
against the spool.
3. Place the thread into the thread guide (A) from
front to back. Pull the thread counter-clockwise
above the bobbin winder thread guide (B) and
then through the bobbin thread guides (C) at the
rear.
Note: Make sure the thread is pulled securely inside the
pre-tension device for correct thread tension.
4. Thread through the slot in the bobbin (D) from the
inside to the outside.
5. Push the bobbin winder spindle to the right to
wind. A pop-up appears on the screen to inform
you that bobbin winding is active. To adjust
winding speed, use the slider in the pop-up. Start
bobbin winding by pressing the foot control or
touch the start/stop.
When the bobbin is full, it will stop winding.
Release the foot control or touch start/stop to stop
the bobbin winder motor from running. Move the
bobbin winder spindle to the left and the pop-up
will close. Remove the bobbin and cut the thread
using the bobbin thread cutter (F).
Winding while threaded
Make sure that the presser foot and the needle are in
the up position. To prevent the needle from bending,
pull the thread out of the needle.
Bring the thread up from the needle thread guide
(E), upward through the left-hand threading slot and
through the bobbin thread guides (C). Then follow
step 4 and 5 above.
