Pfaff creative 3.0 User Manual

1:8
Introduction
PFAFF
10
20
30
40
50
2
1
mm
inch
00
Quilt

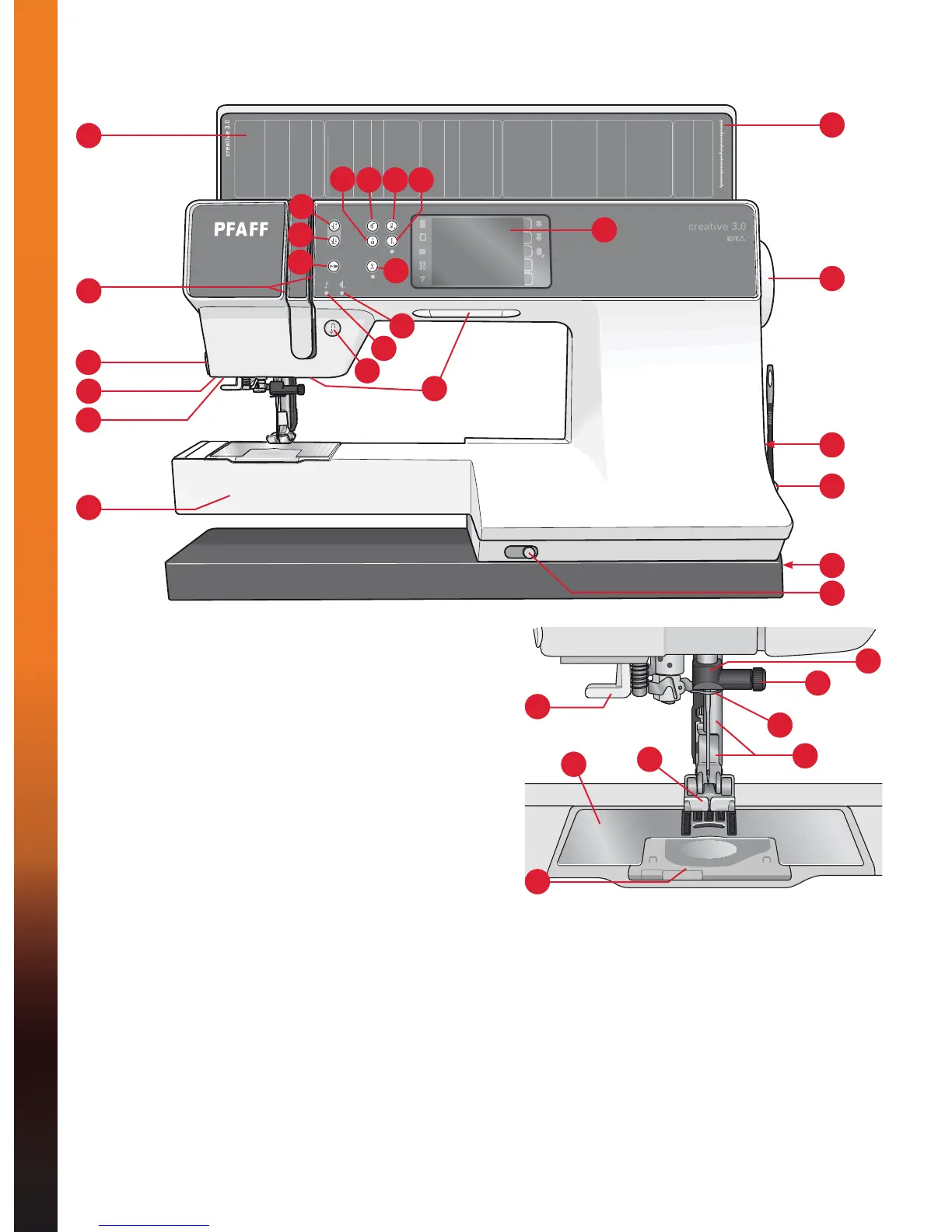

Machine overview
Front side
1. Lid with stitch categories
2. Threading slots
3. Thread cutter
4. Sensormatic buttonhole
foot socket
5. LED lights
6. Free arm
7. Reverse
8. Reverse indicator
9. Action indicator
10. Thread snips
11. Start/stop
12. Presser foot down and pivot
toggle
13. Presser foot up and extra lift
toggle
14. Immediate tie-off
15. Stitch restart
16. Speed control
17. Needle up/down
18. PFAFF
®
creative
™
Color
Touch Screen
19. Button ruler
20. Handwheel
21. Built-in USB port
22. Stylus holder
23. Main switch, connectors for
power cord and foot control
24. Slide for lowering the feed
dogs
Needle area
25. Built-in needle threader
26. Bobbin cover
27. Needle plate
28. Presser foot
29. Presser foot bar and presser
foot holder
30. Needle thread guide
31. Needle screw
32. Needle bar
24
31
29
26
27
30
28
25
1
2
3
4
5
6
7
8
9
13
12
11
10
14
15 16 17
19
18
20
21
22
23
32
5

Pfaff creative 3.0 Specifications

General

Sewing and Embroidery Functions	Yes
Display	Color Touch Screen
Built-in Stitches	254
USB Connectivity	Yes
Automatic Thread Cutter	Yes
Type	Computerized Sewing and Embroidery Machine
Number of Stitches	254
Built-in Embroidery Designs	157
Needle Threader	Automatic
Bobbin Winding	Automatic
Presser Feet	Included
Automatic Needle Threader	Yes
Speed Control	Yes
USB Port	Yes
Built-in Memory	Yes
Stitch Length	6 mm
LCD Screen	Color Touch Screen
Stitch Width	9 mm
Max Sewing Speed	800 stitches per minute
