Pfaff creative 3.0

1:9
Introduction
33
34
35
47
48
49

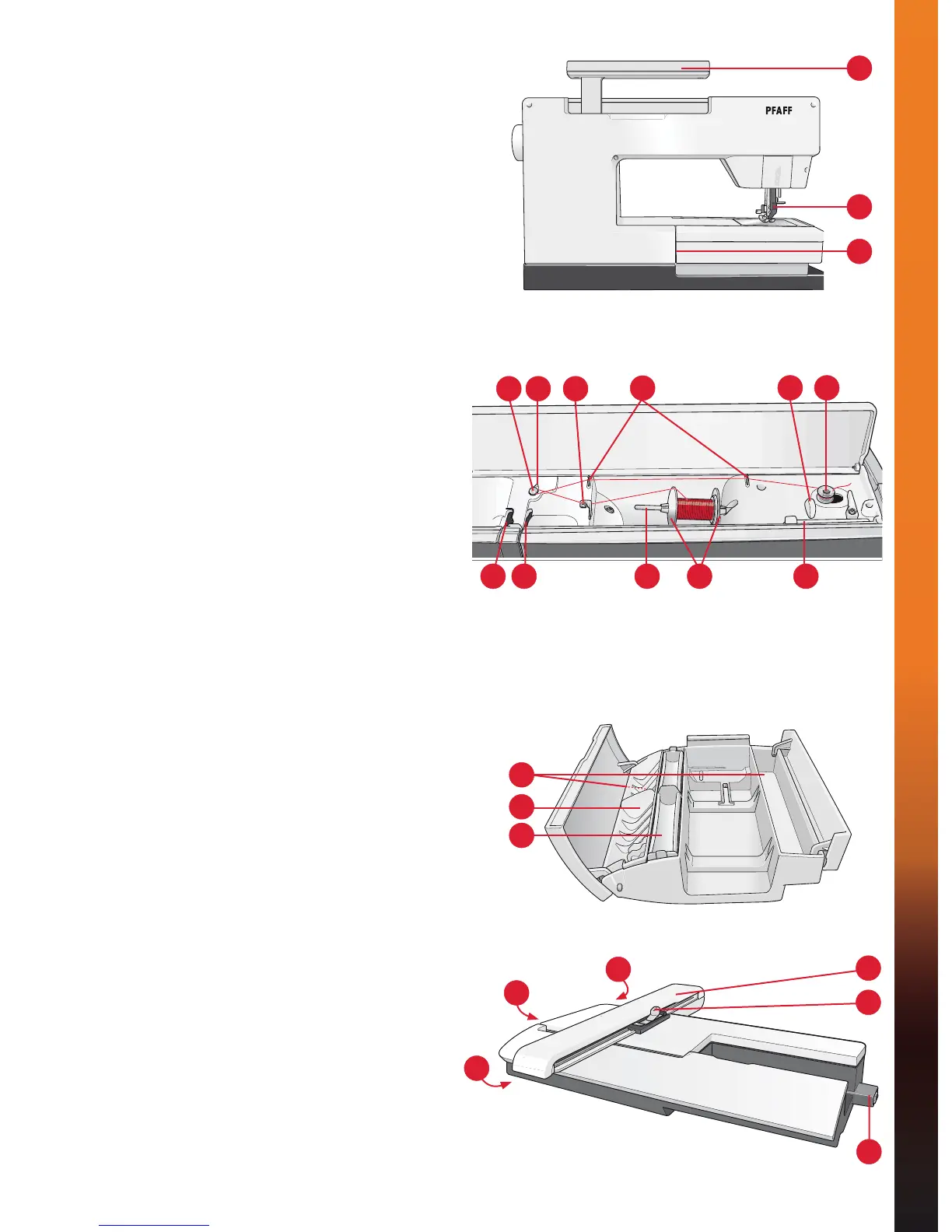

Rear side
33. Handle
34. IDT
™
system
35. Embroidery unit connection socket
Top parts
36. Pre-tension disk for threading and bobbin
winding
37. Bobbin winder thread guide
38. Thread guide
39. Bobbin winder thread guides
40. Bobbin winder thread cutter
41. Bobbin winder spindle
42. Auxiliary spool pin
43. Spool caps
44. Spool pin
45. Thread tension disk
46. Take-up lever
$FFHVVRU\WUD\
The accessory tray features special compartments
for presser feet and bobbins, plus space for needles
and other accessories. Store the accessories in the
tray so they are easily accessible.
47. Space for accessories
48. Removable tray for presser feet
49. Removable bobbin holder
Parts of the HPEURLGHU\XQLW
(type BE16)
50. Embroidery unit release button
51. Level adjusting feet
52. Embroidery unit socket
53. Embroidery hoop connection assembly
54. Embroidery arm
36 37 38
39
40 41
42434446 45
50
51
51
54
53
52
