Pfaff creative 3.0

Embroidery Mode - Preparations
7:2
A
B
B

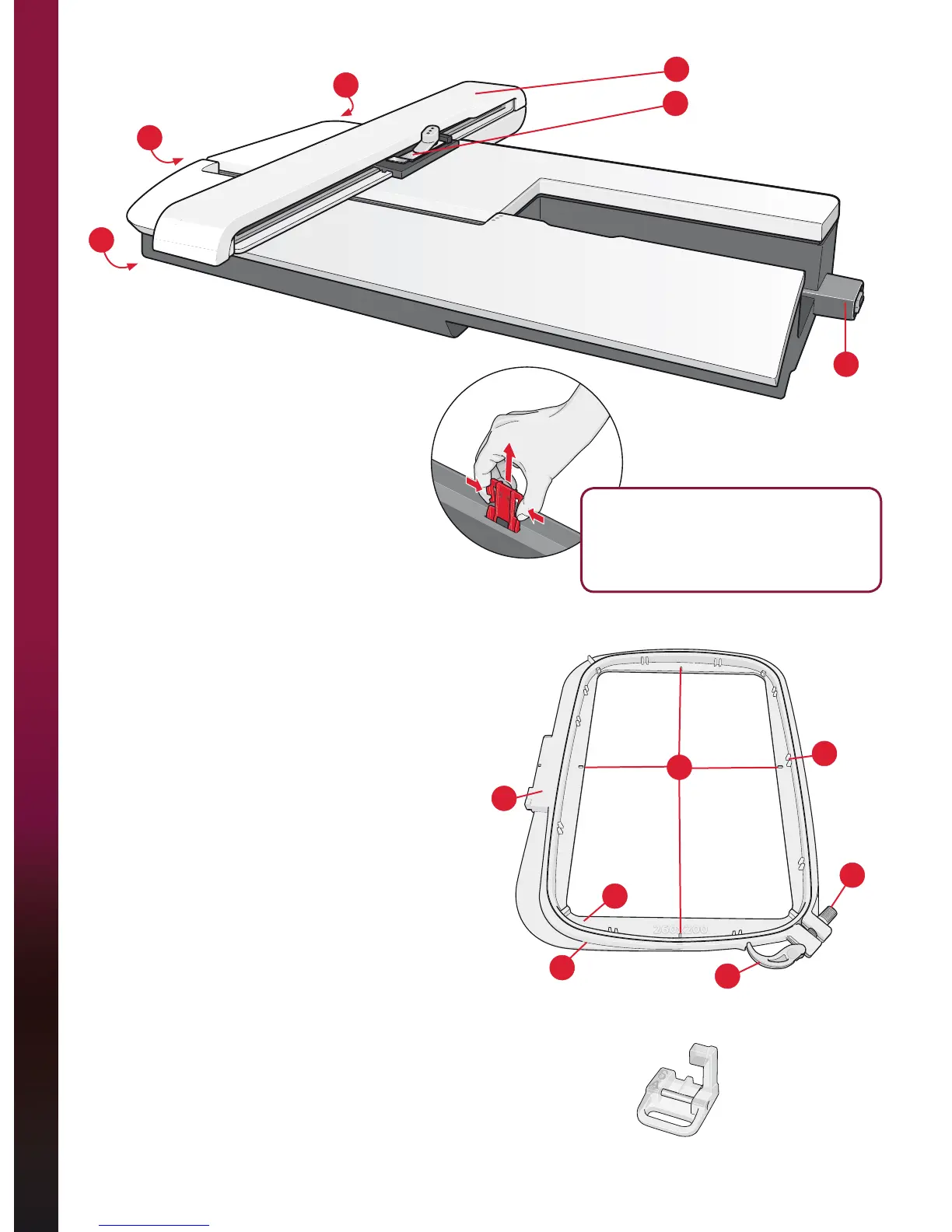

(PEURLGHU\XQLWoverview
(type BE16)
A Embroidery unit release button
B Level adjusting feet
C Embroidery unit socket
D Embroidery hoop connection assembly
E Embroidery arm
(PEURLGHU\KRRSoverview
F Embroidery hoop connector
G Outer hoop
H Inner hoop
I Quick release
J Retaining screw
. 5LEVIRUÀWWLQJWKHFOLSV
L Center marks
$WWDFKWKHHPEURLGH\IRRW$
When embroidering, use the Embroidery/
Sensormatic free-motion foot 6A. See page
2:9 for instructions on how to change presser foot.
Note: You can also use the optional Dynamic Spring Foot
6D (part number 820991-096) when embroidering.
F
G
I
J
K
H
E
D
C
L
When removing the embroidery unit
IURPWKHER[IRUWKHÀUVWWLPHEHVXUH
the shipping brace on the underside of
the embroidery unit has been removed.
