6 Control elements
6
.01 Main switch
● Turn main switch 1 to switch the power
supply of the sewing machine drive on
or off.

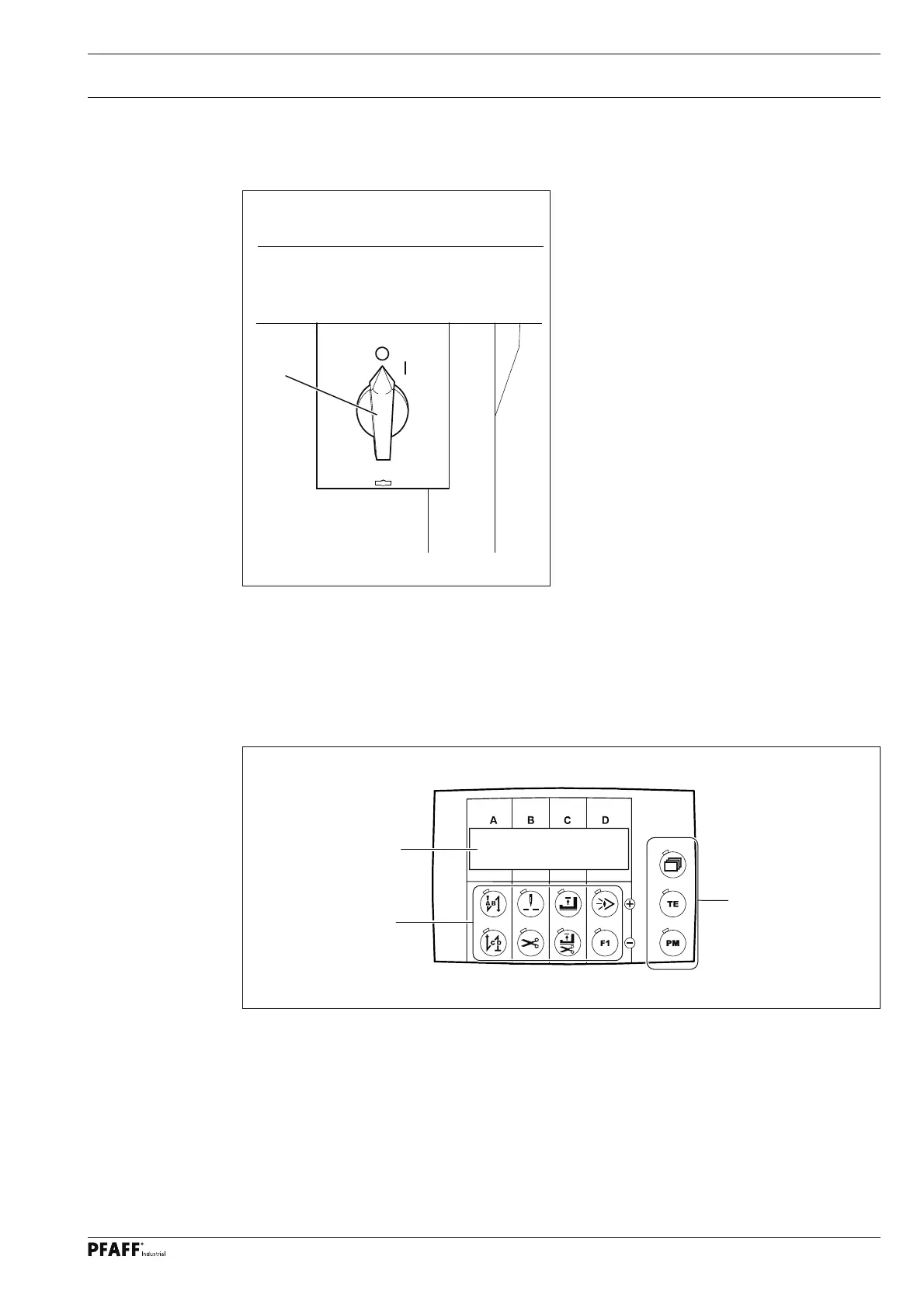

Fig. 6 - 01
1
6.02 Control panel
The control panel is used to display and call up the machine functions for setting up and for
sewing operation, for entering parameter values and for reading error messages and service
settings.
The control panel has the following operating and display elements:
● The display 1 consists of a one-line display with an 8-fi gure LCD-matrix and is used to
show appropriate information and selection parameter.
● The selection keys 2 are used to change the screen display, to switch the function keys
and to select the operating mode (manual / programmed sewing).
● The function keys 3 below the display are used to switch the appropriate functions on or
off, depending which key is selected, or to change the values of the appropriate setting
range (A, B, C or D).
Fig. 6 - 03
1
2
3
