Service functions
70

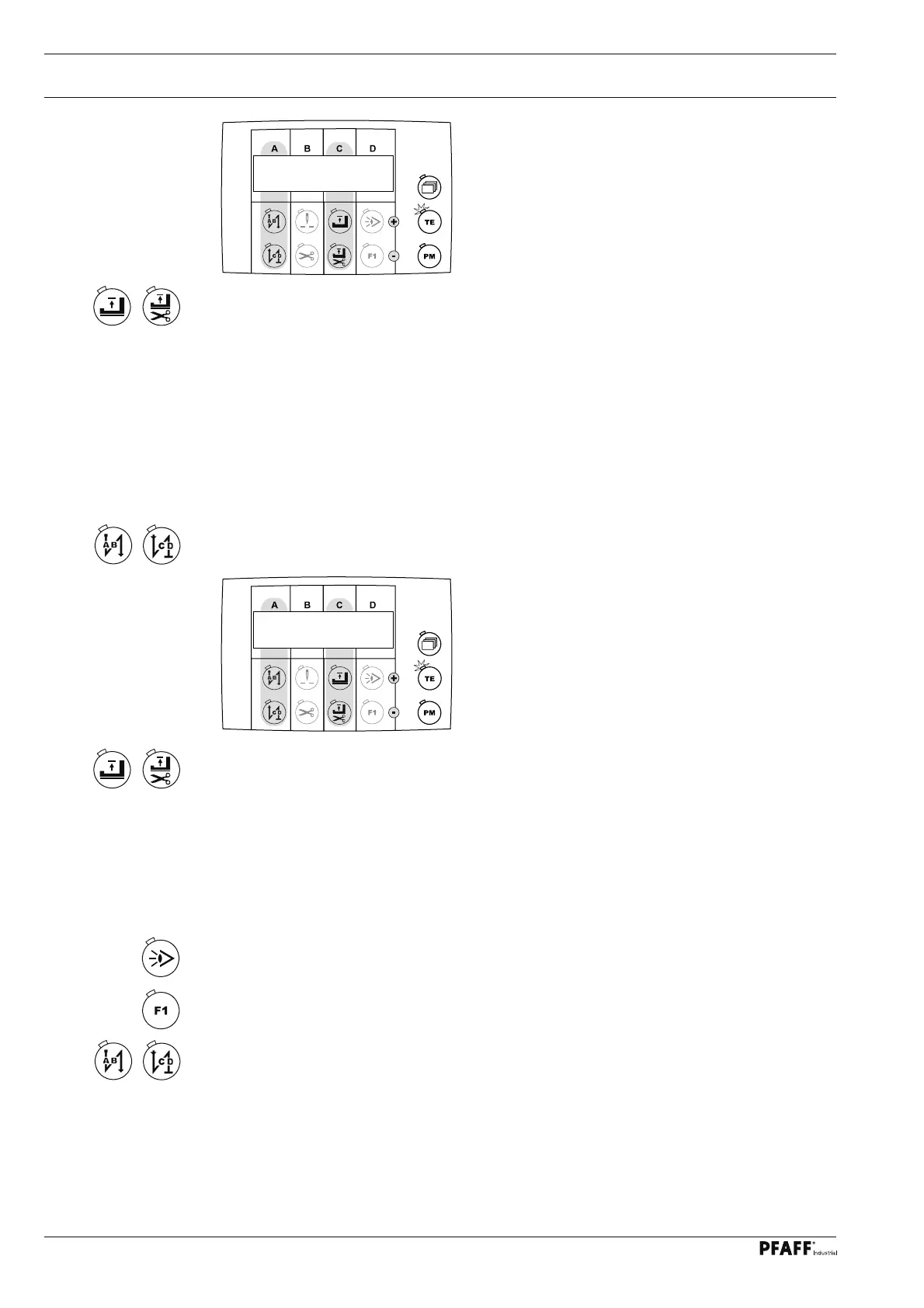

● Select the desired input with the corresponding function keys (setting range C).
The switch status of the current input is shown in setting range D.
Following inputs can be shown:
In 1: E1 / TUM manual
In 2: E2 / various functions, selection with parameter "446"
In 3: E3 / various functions, selection with parameter "748"
In 4: E4 / tilt lock
In 5: E5 / knee switch presser foot
In LB: Light barrier
● Call up the display of the outputs with the corresponding function keys.
● Select the desired output with the corresponding function keys (setting range C).
Out 1: Presser foot tacted
Out 2: Feed changeover tacted
Out 3: Magnetic cutting tacted
Out 4: Thread tension release (tacted in hardware test with fi xed 50%)
Out 5: Pneumatic cutting
Out 6: Wiper
● Switch on selected output.
● Switch off selected output.
● Select the test mode for the pedal with the corresponding function keys.
In: 1 0
Out: 1
