Controls and Connectors
Monitor Installation and Patient Safety 11-21
Monitor Installation
and Patient Safety
The Rear
Panel of the
M1046A/B
Computer
Modules

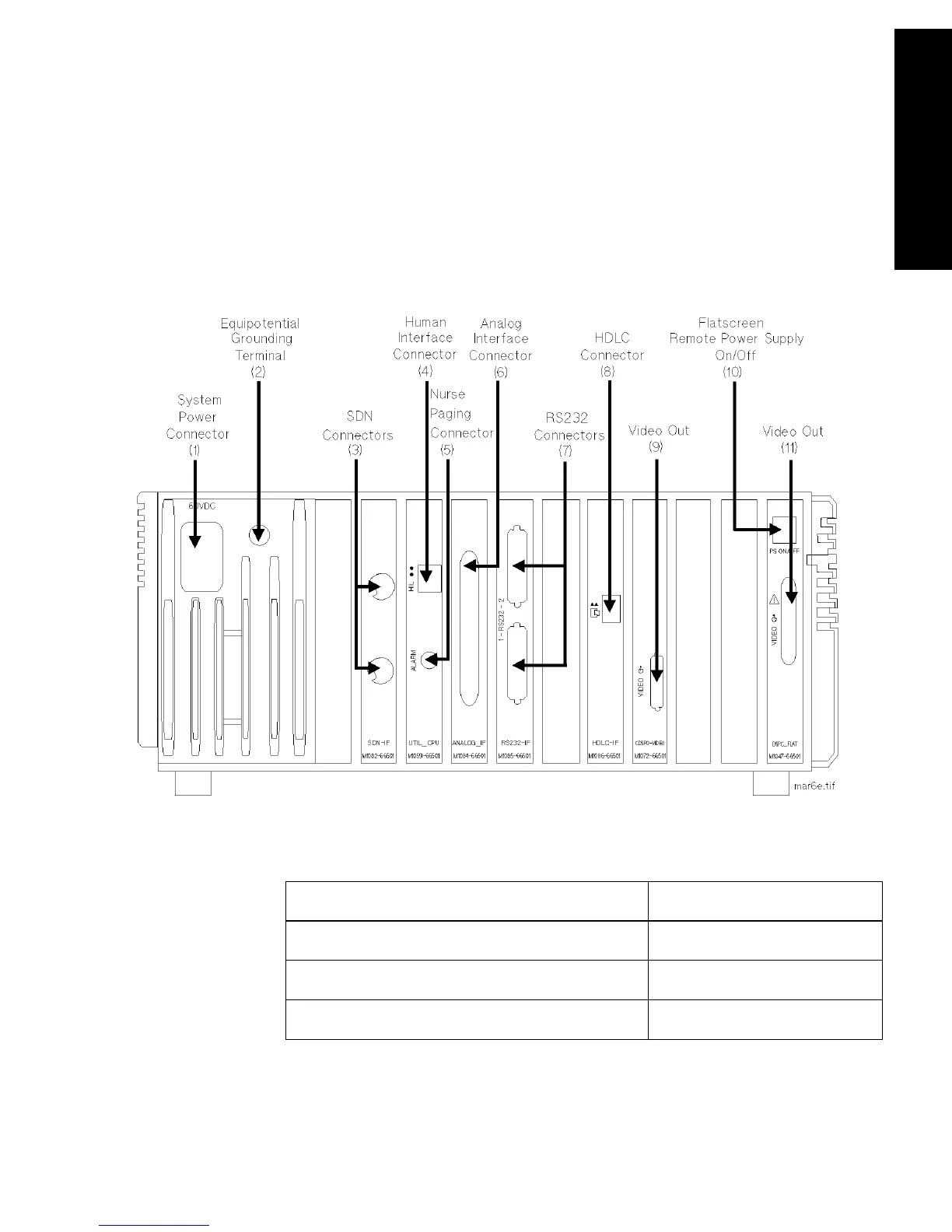

The rear panel of the M1046A and M1046B computer modules has several
connectors. The connectors, and their position, depends upon which
function cards are fitted; as the rear panel is made up of small panels that
are attached to certain function cards. A typical computer module rear
panel is shown below.
Maximum Voltages
System Power Connector 60 V
SDN Connectors 5 V
Human Interface Connector 12 V
Nurse Paging Connector 24 V
