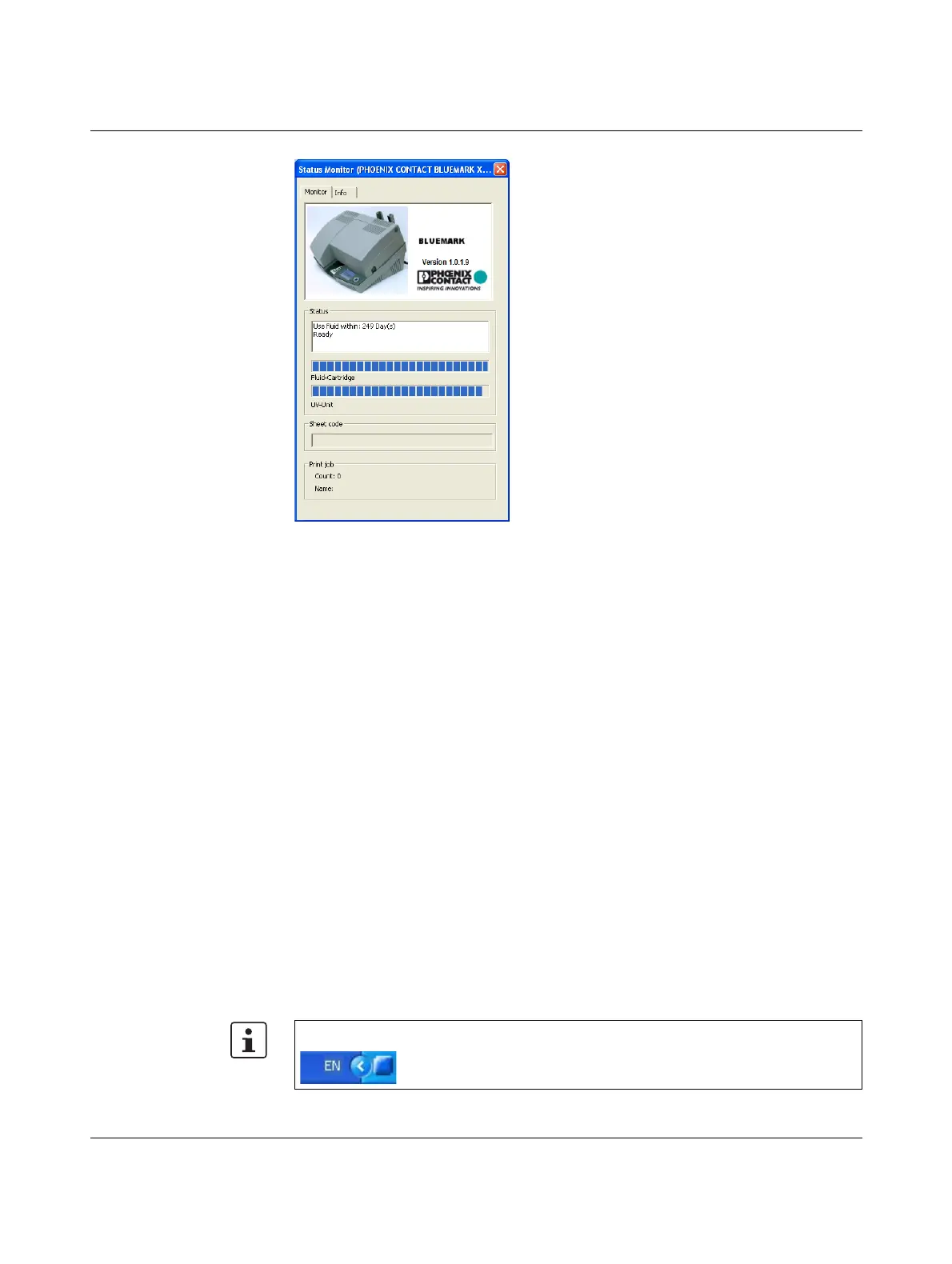

Figure 3-5 Status monitor
The status monitor has two tabs. The "Info" tab provides information about the status
monitor version and can be used to create a log file (see "Creating a log file for the customer
service department" on page 5-8). The "Monitor" tab displays the following:
Status Various status messages are output in the "Status" field, such as the durability of the fluid in
days or whether the cover is open, etc.
Fluid Cartridge Under "Fluid Cartridge", the bar indicator shows the fill level of the Fluid Cartridge. If it is full,
all the segments light up green. The number of green segments that are lit up decreases as
the number of completed print jobs increases. If all the segments are out, the Fluid Cartridge
is empty (see "Changing the Fluid and Cleaning Cartridge" on page 4-1).
The fill level of the Fluid Cartridge is monitored. Before it is nearly empty, the message
"Fluid Cartridge Nearly Empty" is displayed. Confirm this message by pressing the
• key. You can then continue printing. Have a new Fluid Cartridge ready to hand for
cartridge change.
UV Unit As in the case of the Fluid Cartridge, this indicator shows the service life of the UV Unit. If all
the segments are out, the UV power has been used up. Since the UV Unit lasts for as long
as the printer, this state should not occur.
Sheet code The sheet code is indicated here, if this is supported by the application. For example, no
sheet code is transferred by MS Word.
Print job The number and name of the print jobs that are to be printed by the printer (print queue) are
shown under "Print job".
If you no longer need the status monitor, you can remove it from the Windows task bar.
Right-click the status monitor symbol with the mouse and select „Exit“.
