Troubleshooting
103933_en_01 PHOENIX CONTACT 5-7
5.3.2 Testing the printhead
To test whether the printhead is OK, a nozzle sample can be printed on a sheet.
A UC-EMLP(60x30) sheet (Order No. 0819343) is required for the test printout. A different
type of sheet can be used for the nozzle test. However, the sample may not be printed
precisely on the labels.
Load a sheet (ideally UC-EMLP(60x30)) in the input tray.
Press the f key to access the menu.
The printer switches to offline mode, i.e., printing is no longer possible.
Select Test Functions via d. Confirm by pressing the
key.
Select Print Head Test on UC-EMLP (60x30) via d. Confirm by pressing the
key.
The printhead test is started.
The result should correspond to Figure 5-3.

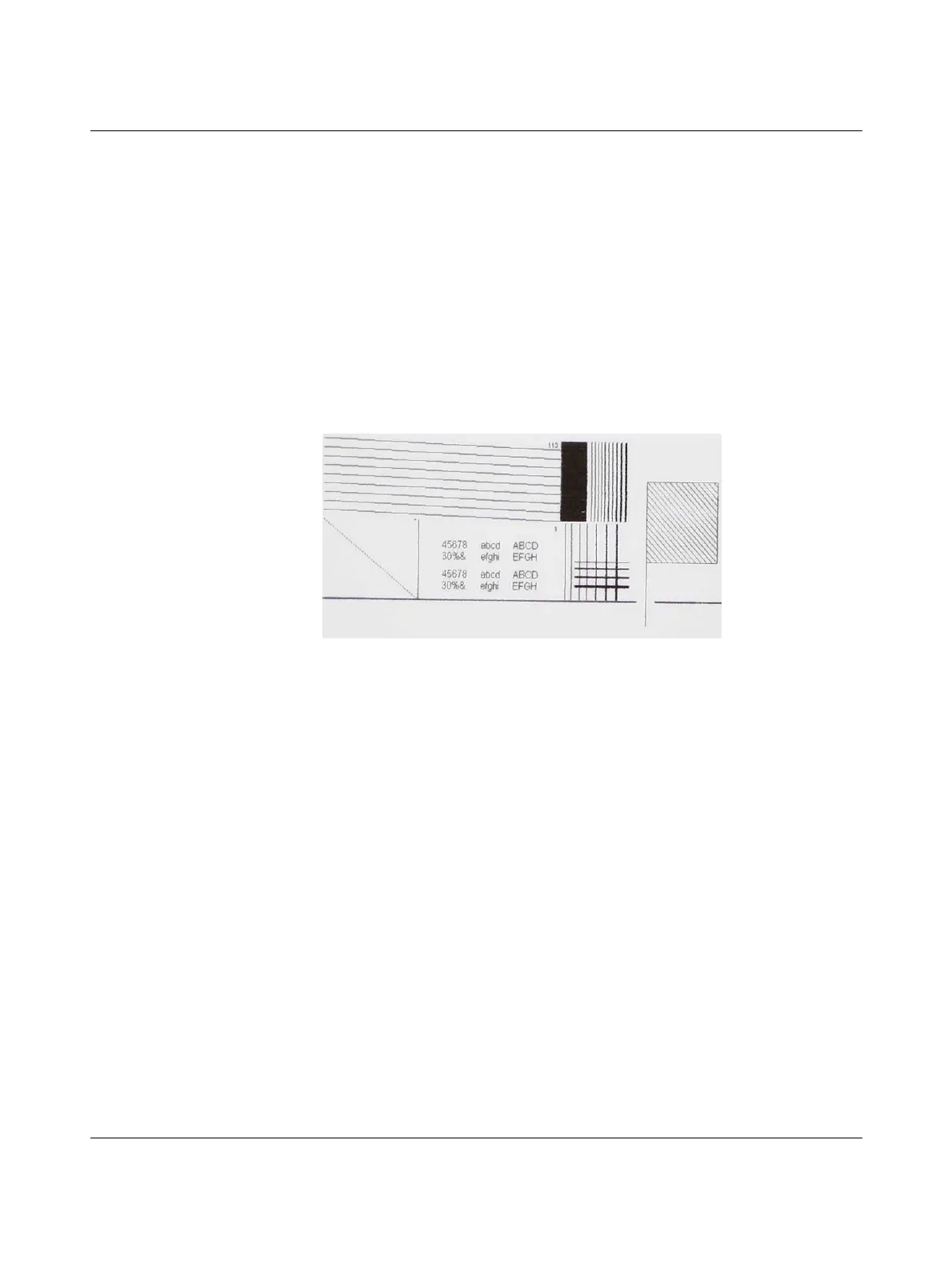

Figure 5-3 Printhead test
5.3.3 Opening the printer
Release the cover lock via the menu.
To do this, press the f key to access the menu.
The printer switches to offline mode, i.e., printing is no longer possible.
Select Maintenance via d. Confirm by pressing the
key.
Select Open Device via d. Confirm by pressing the
key.
Unlocking is delayed until thethe fluid system is emptied. This process can take a few
minutes.
As soon as the cover can be opened, this is indicated in the display.
Press the pushbuttons on both sides of the printer and open the cover.
