3.7.2.1 2-Wire RTD Measurements
How to measure temperature with 2-Wire RTD

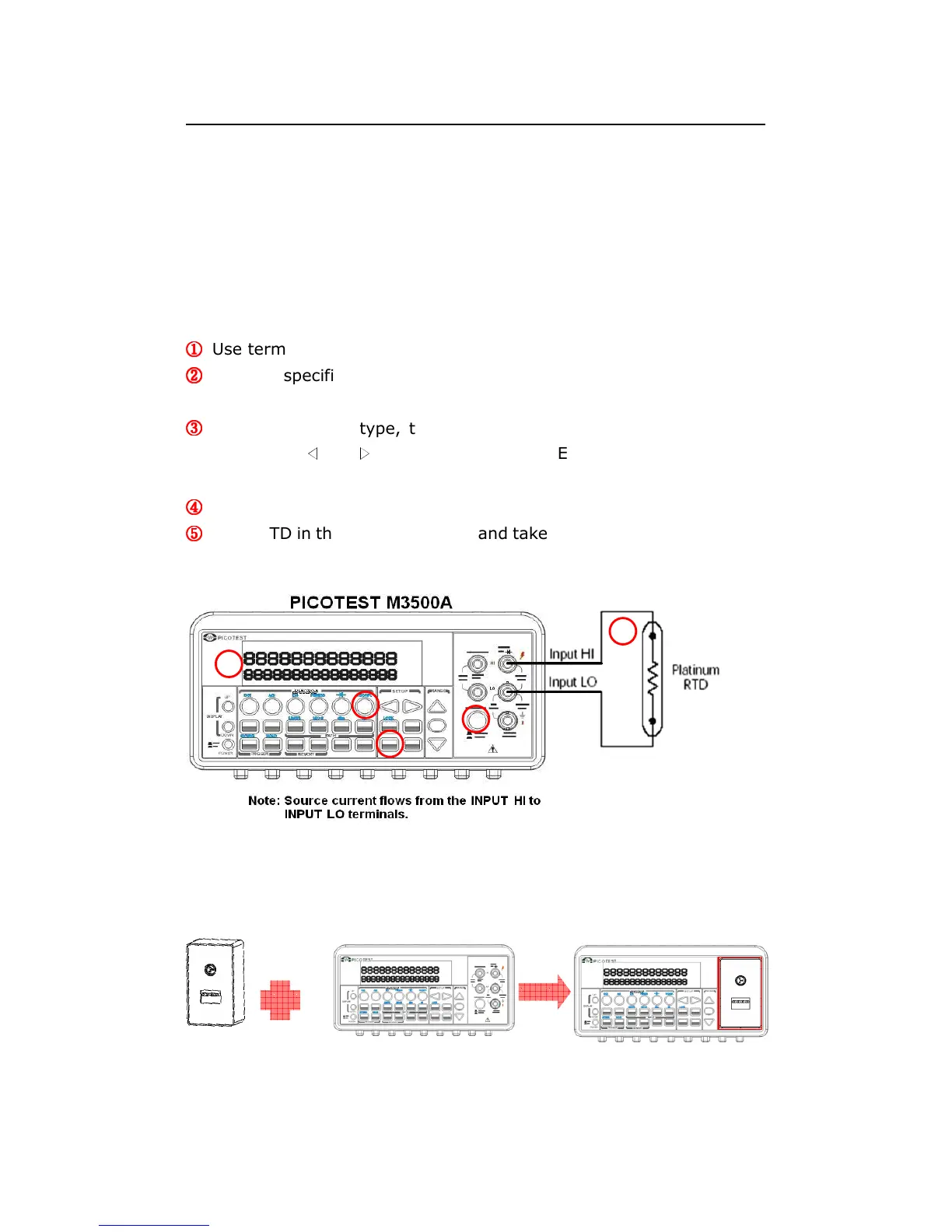

The following Figure 3-13 shows theory diagram of 2-Wire RTD
measurement.
①
①①
① Use terminals switch to select front terminals.
②
②②
② Insert a specified adapter into the front terminals. Connect the low
thermal patch leads to the adapter as shown in Figure 3-14.
③
③③
③ Configure sensor type, transducer (2W) and unit using CONFIG +
TEMP and ◁ or ▷ . When ready, press ENTER button. For more
information, refer to the section 4.1.8.
④
④④
④ Press TEMP button.
⑤
⑤⑤
⑤ Place RTD in the desired position and take the reading on the display.
Figure 3-13
1
2
4
5
3
1
2
3
