Figure 3-14
3.7.2.2 3-Wire RTD Measurements
How to measure temperature with 3-Wire RTD

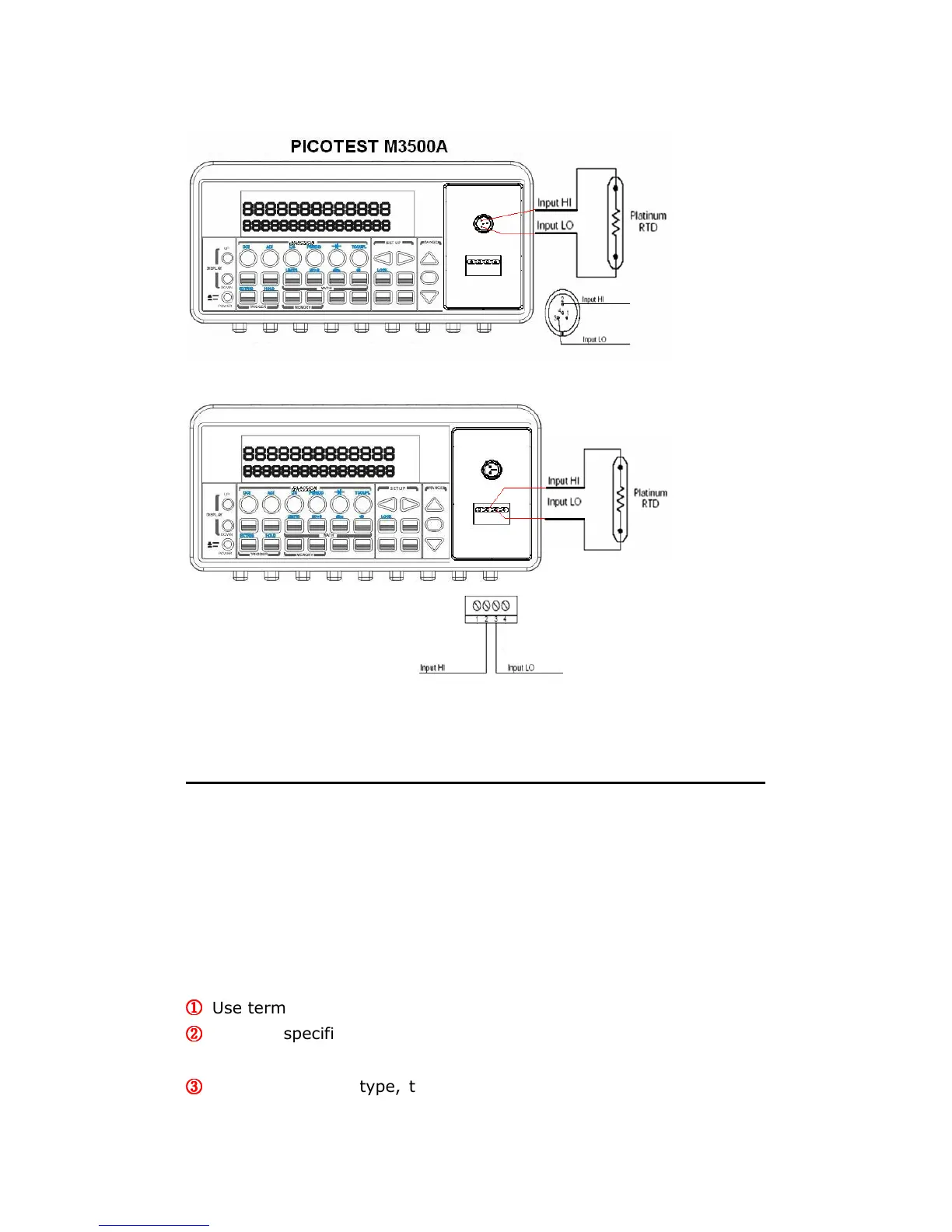

The following Figure 3-15 shows theory diagram of 3-Wire RTD
measurement.
①
①①
①
Use terminals switch to select front terminals.
②
②②
②
Insert a specified adapter into the front terminals. Connect the low
thermal patch leads to the adapter as shown in Figure 3-16.
③
③③
③
Configure sensor type, transducer (4W) and unit using CONFIG +
