Connecting up
02
12
En
Chapter 2
Connecting up

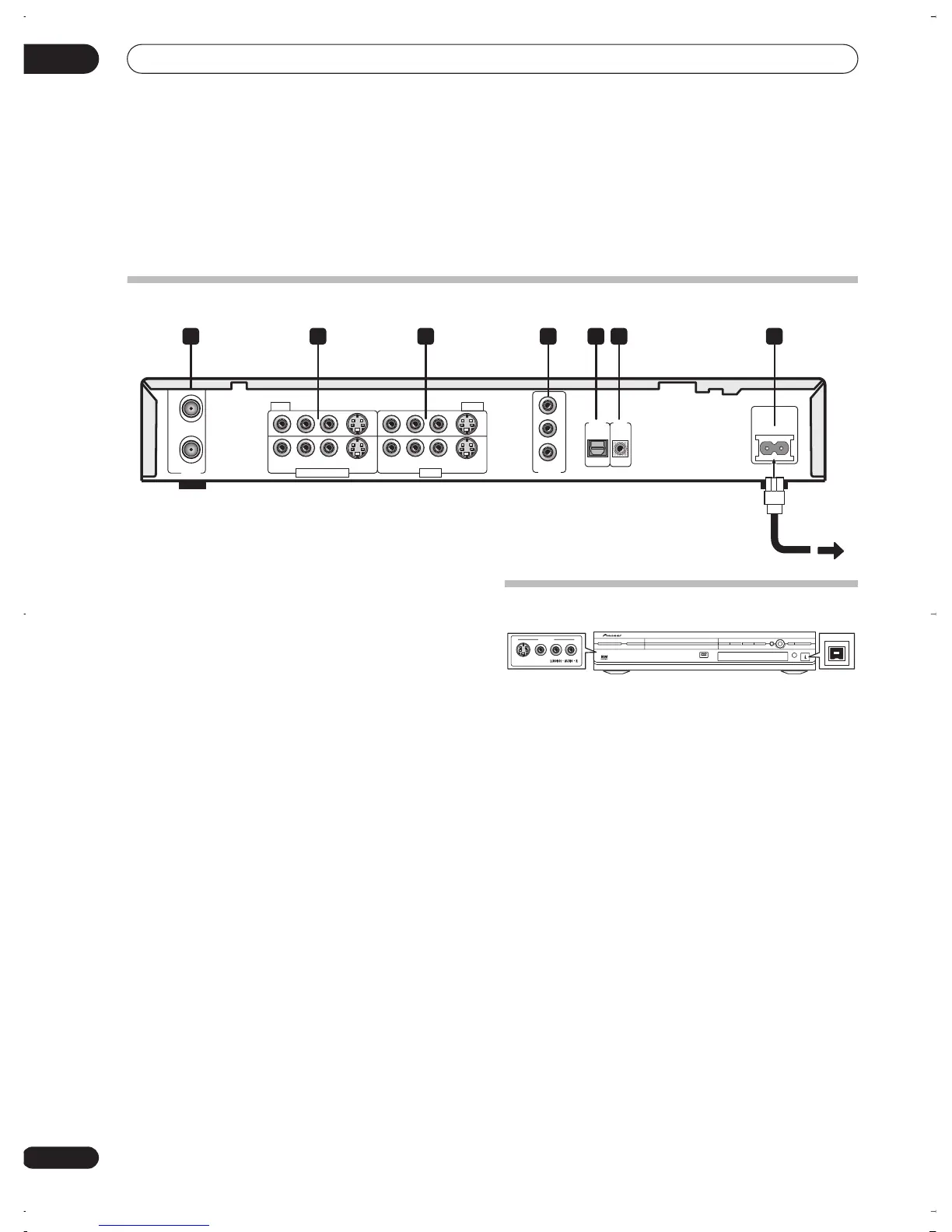

Rear panel connections
1 VHF/UHF IN/OUT
Connect your TV antenna to the VHF/UHF IN jack. The
signal is passed through to the
VHF/UHF OUT jack for
connection to your TV.
2 Audio/video inputs 1 and 3
Two sets of audio/video inputs (stereo analog audio;
composite and S-video video) that you can use to connect
to satellite receivers, TVs, VCR or other source
component for recording.
3 Audio/video outputs 1 and 2
Two sets of audio/video outputs (stereo analog audio;
composite and S-video video) that you can use to connect
TVs or monitors.
4 COMPONENT VIDEO OUT
A high-quality video output for connecting to a TV or
monitor with a component video input.
5 DIGITAL OUT OPTICAL
A digital audio output for connecting to an AV receiver,
Dolby Digital/DTS decoder or other equipment with
optical digital input.
6 CONTROL IN
Use to control this recorder from the remote sensor of
another Pioneer component with a
CONTROL OUT
terminal and bearing the Pioneer
 mark. Connect the
CONTROL OUT of the other component to the CONTROL
IN
of this recorder using a mini-plug cord.
7 AC IN
Connect to a power outlet using the supplied power cable
after making all other connections.
Front panel connections
On the left side of the front panel a flip-down cover hides
a third audio/video input, consisting of an S-video and
standard (composite) video jack, and stereo analog audio
jacks.
On the right side is the DV input/output i.LINK connector.
This is for connection to a DV camcorder.
COMPONENT
VIDEO OUT
DIGITAL
OUT
AC IN
OPTICAL
CONTROL
IN
Y
P B
P R
RL RL
AUDIO
INPUT 1
VIDEO
S-VIDEO
OUTPUT 1
AUDIO VIDEO
S-VIDEO
VHF/UHF
IN
OUT
INPUT 3/AUTO START REC OUTPUT 2
1 2 3 4 5 6 7
VIDEO/R/RW
INPUT 2
VIDEO
S-VIDEO
DV IN/OUT
