User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
2. Assign VLAN Member :
VLAN 1 : Port-5 and Port-6
VLAN 2 : Port-1,Port-2 ,Port-5 and Port-6
VLAN 3: Port-3~Port-6.
The screen in Figure 4-6-18 appears.

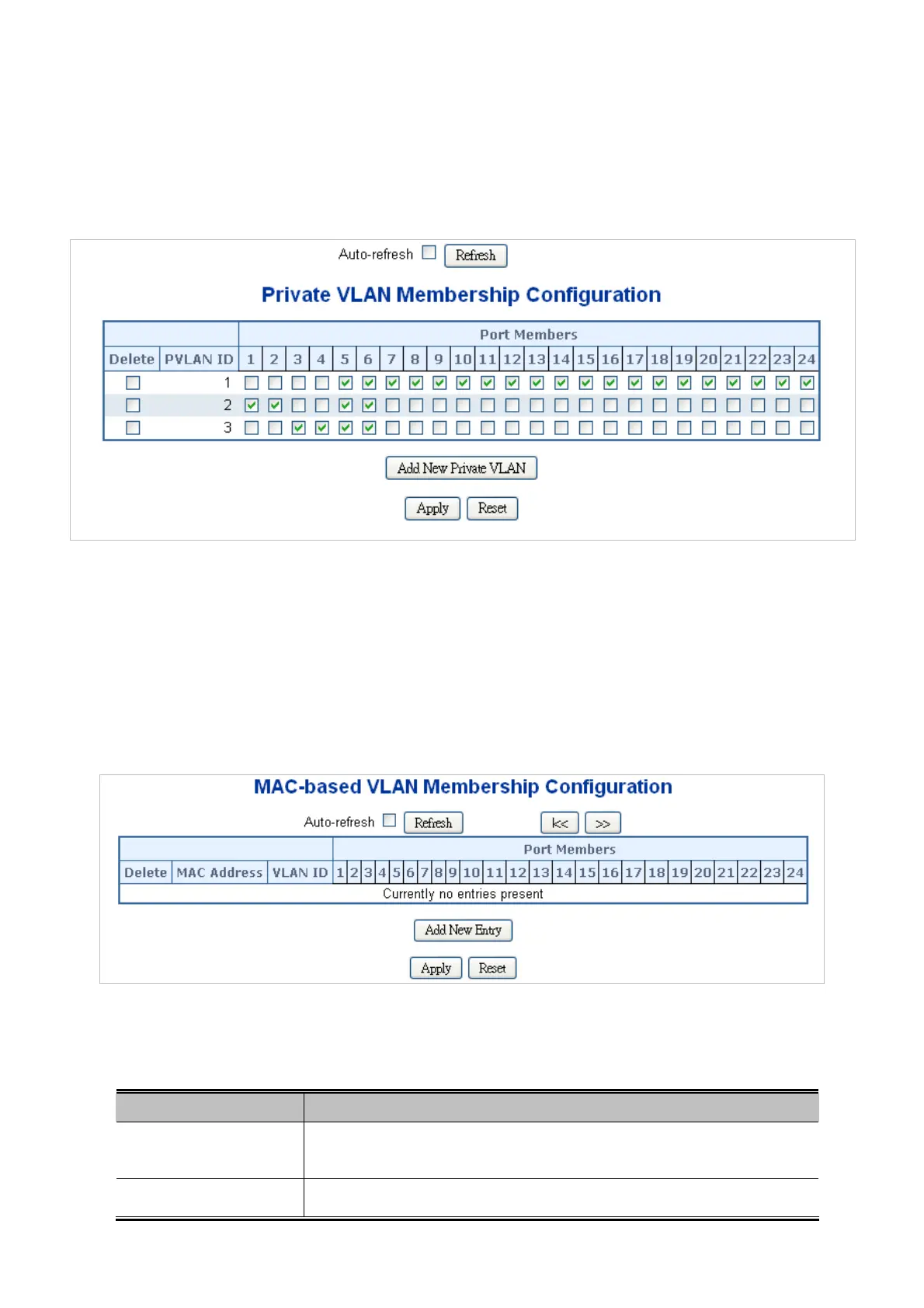

Figure 4-6-17: Private VLAN Port Setting
4.6.9 MAC-based VLAN
The MAC-based VLAN enties can be configured here. This Page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This Page shows only static entries. The MAC-based VLAN screen in Figure 4-6-18
appears.
Figure 4-6-18: MAC-based VLAN Membership Configuration Page Screenshot
The Page includes the following fields:
Object Description
 Delete
To delete a MAC-based VLAN entry, check this box and press save. The entry
will be deleted in the stack.
 MAC Address
Indicates the MAC address.
127
