User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
The Page includes the following fields:
Object Description
 MAC Address
Indicates the MAC address.
 VLAN ID
Indicates the VLAN ID.
 Port Members
Port members of the MAC-based VLAN entry.
Buttons
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.

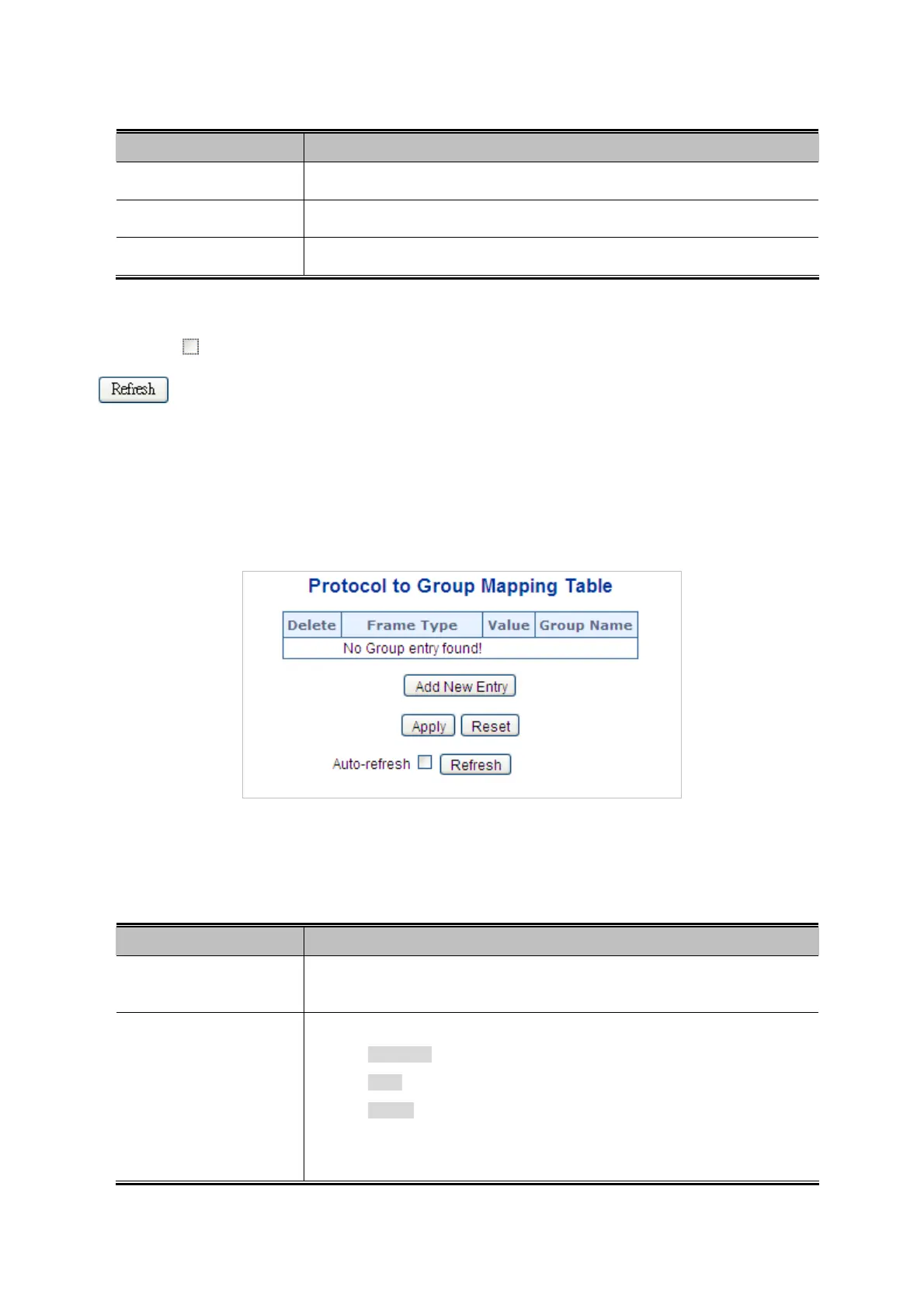

4.6.11 Protocol-based VLAN
This Page allows you to add new protocols to Group Name (unique for each Group) mapping entries as well as allow you to see
and delete already mapped entries for the switch. The Protocol-based VLAN screen in Figure 4-6-20 appears.
Figure 4-6-20: Protocol to Group Mapping Table Page Screenshot
The Page includes the following fields:
Object Description
 Delete
To delete a Protocol to Group Name map entry, check this box. The entry will be
deleted on the switch during the next Save.
 Frame Type
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
Note: On changing the Frame type field, valid value of the following text field will
vary depending on the new frame type you selected.
129
