User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
4.6.12 Protocol-based VLAN Membership
This Page allows you to map a already configured Group Name to a VLAN for the switch. The Group Name to VLAN Mapping
Table screen in Figure 4-6-21 appears.

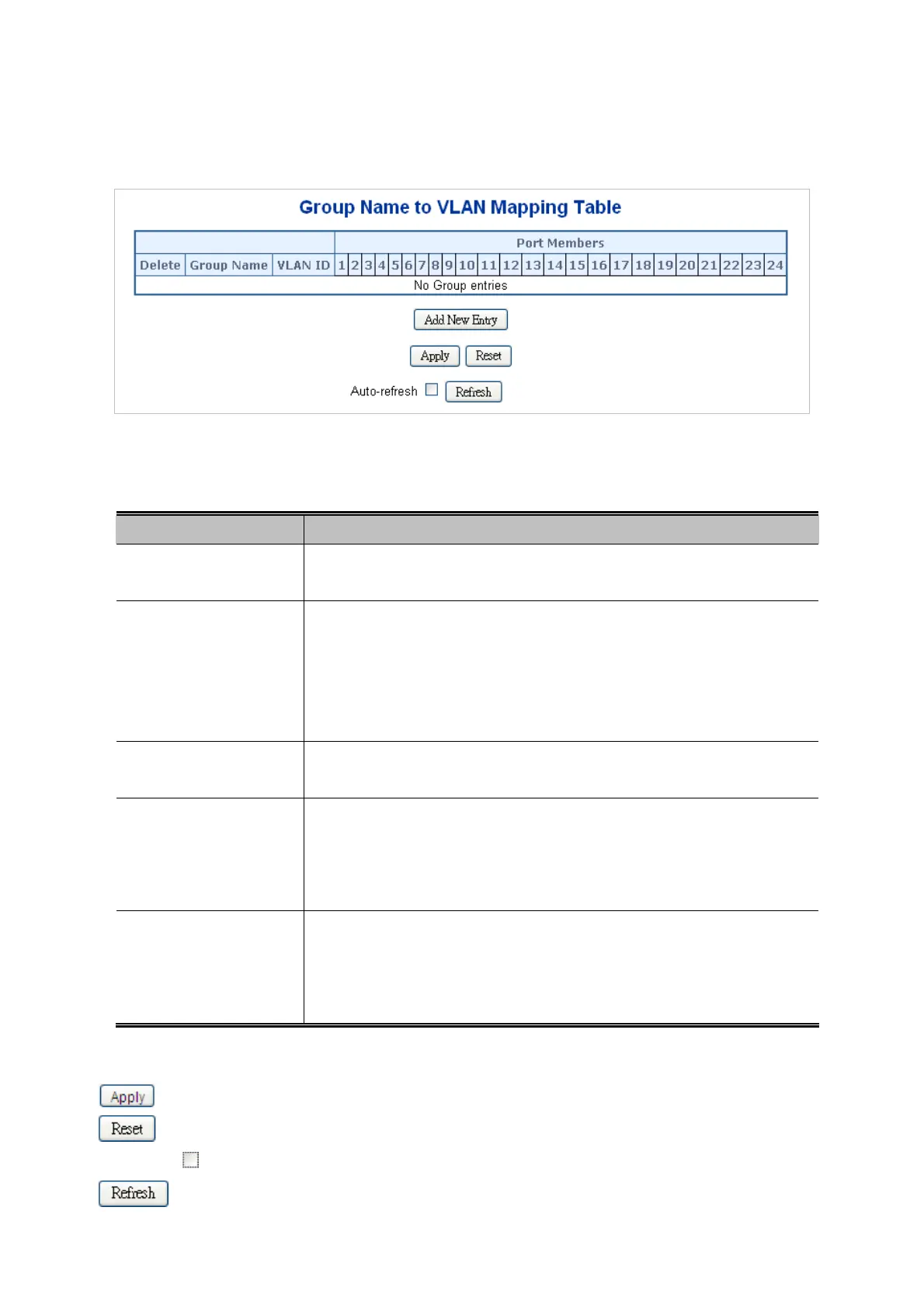

Figure 4-6-21: Group Name to VLAN Mapping Table Page Screenshot
The Page includes the following fields:
Object Description
Delete
To delete a Group Name to VLAN map entry, check this box. The entry will be
deleted on the switch during the next Save
Group Name
A valid Group Name is a string of atmost 16 characters which consists of a
combination of alphabets (a-z or A-Z) and integers(0-9), no special character is
allowed. Whichever Group name you try map to a VLAN must be present in
Protocol to Group mapping table and must not be preused by any other existing
mapping entry on this Page.
VLAN ID
Indicates the ID to which Group Name will be mapped. A valid VLAN ID ranges
from 1-4095.
Port Members
A row of check boxes for each port is displayed for each Group Name to VLAN ID
mapping. To include a port in a mapping, check the box. To remove or exclude
the port from the mapping, make sure the box is unchecked. By default, no ports
are members, and all boxes are unchecked.
Adding a New Group to
VLAN mapping entry
Click “Add New Entry” to add a new entry in mapping table. An empty row is
added to the table, the Group Name, VLAN ID and port members can be
configured as needed. Legal values for a VLAN ID are 1 through 4095.
The “Delete” button can be used to undo the addition of new entry.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
131
