4.9.8 DSCP-based QoS
This Page allows you to configure the basic QoS DSCP-based QoS Ingress Classification settings for all switches. The
DSCP-based QoS screen in Figure 4-9-9 appears.

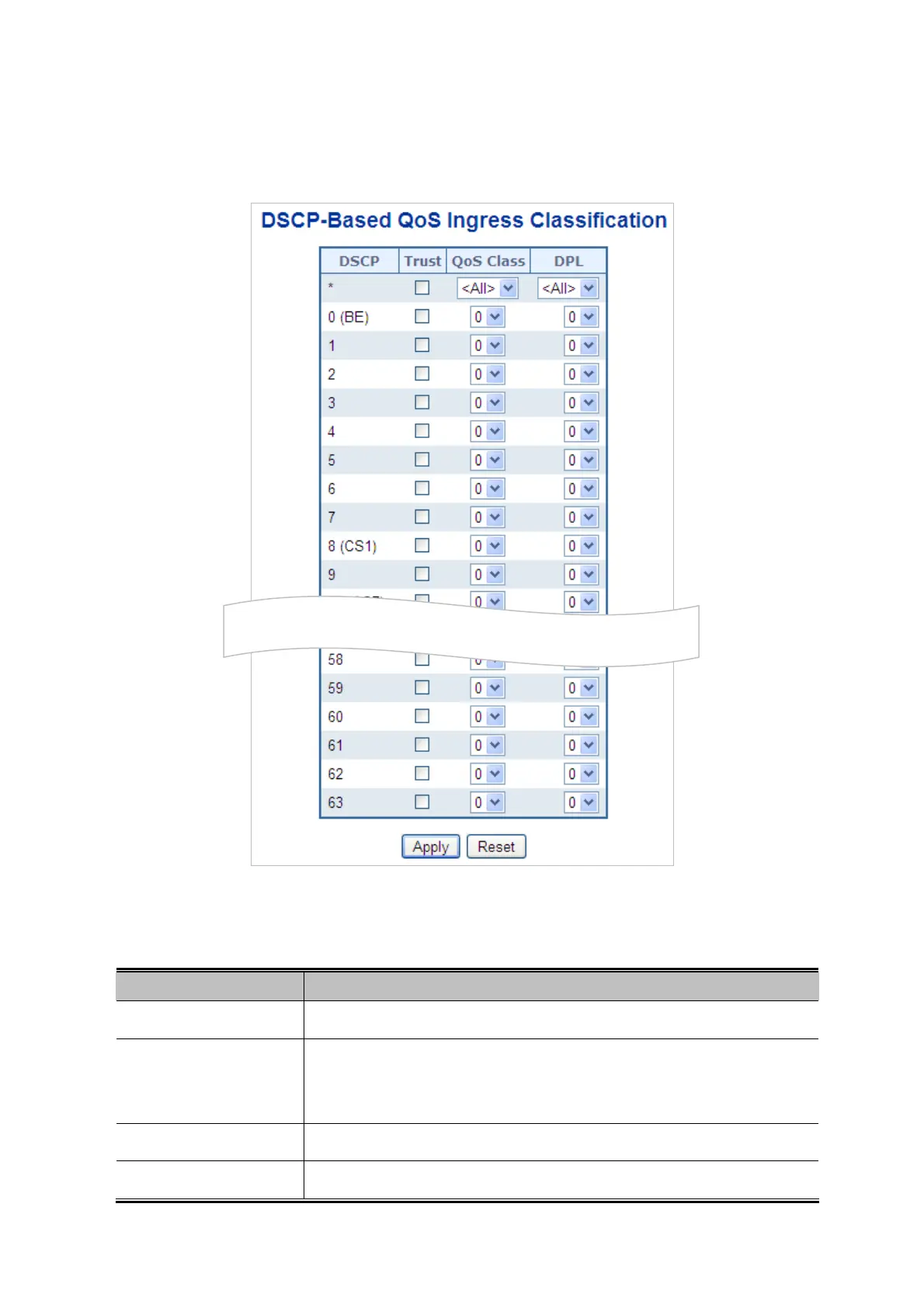

Figure 4-9-9: DSCP-based QoS Ingress Classification Page Screenshot
The Page includes the following fields:
Object Description
Maximum nu
mber of support ed DSCP values are 64.
 DSCP
Controls
whether a specific DSCP value is trusted. Only frames with trusted
DSCP values are mapped to a specific QoS class and Drop Precedence Level.
Frames with untrusted DSCP values are treated as a non-IP frame.
 Trust
QoS Class value can b
e any of (0-7)
 QoS Class
 DPL
Drop Precedence Level (0-1)
