4.9.11.1 QoS Control Entry Configuration

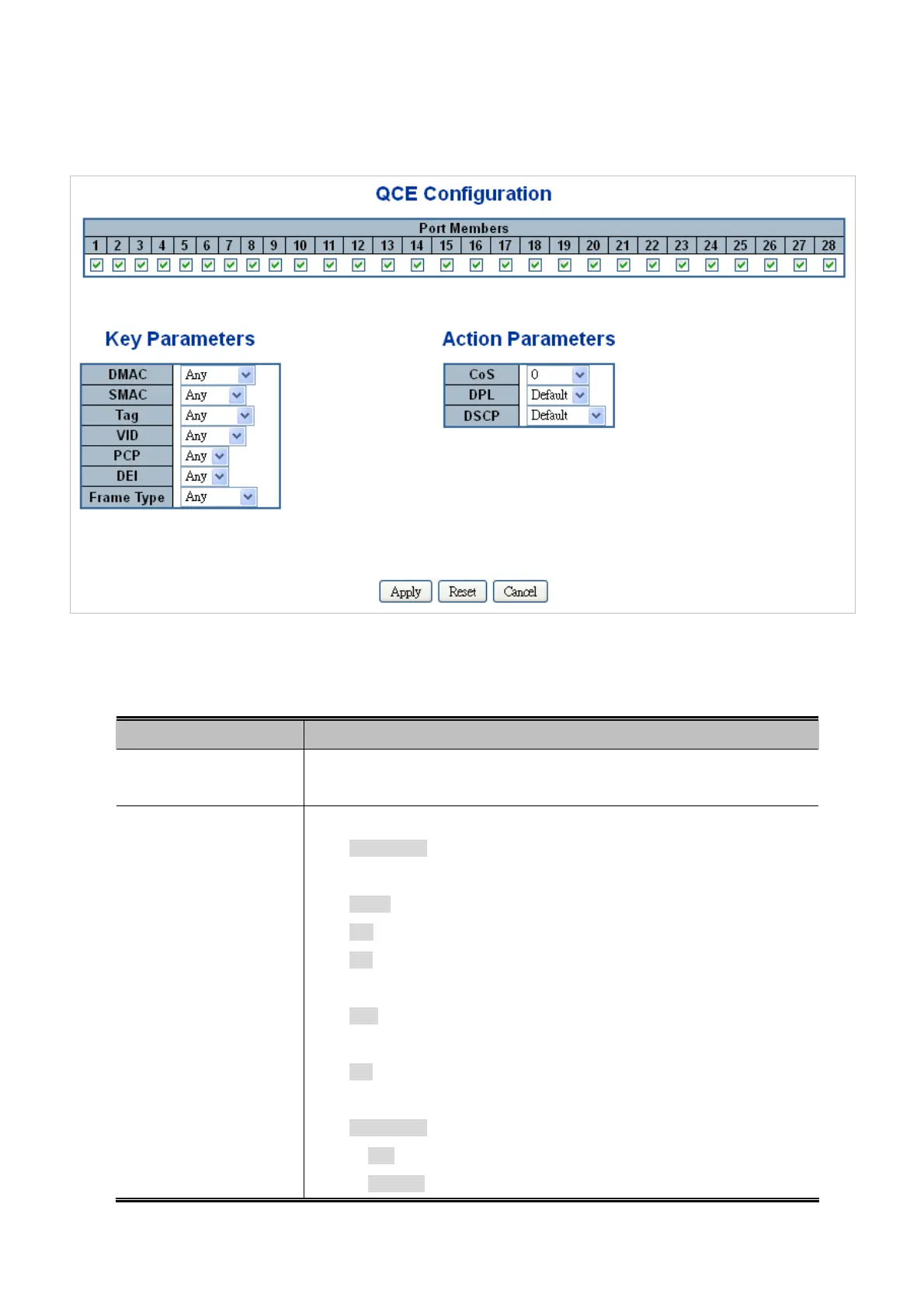

The QCE Configuration screen in Figure 4-9-13 appears.

Figure 4-9-13: QCE Configuration Page Screenshot

The Page includes the following fields:

Object Description

Check the che

ckbox button in case you what to make any port member of the

QCL entry. By default all ports will be checked

 Port Members

 Key Parameters

Key configuration are discribed as below:

■ DMAC Type Destination MAC type: possible values are unicast(UC),

multicast(MC), broadcast(BC) or 'Any'

■ SMAC Source MAC address: 24 MS bits (OUI) or 'Any'

■ Tag Value of Tag field can be 'Any', 'Untag' or 'Tag'

■ VID Valid value of VLAN ID can be any value in the range 1-4095 or 'Any';

user can enter either a specific value or a range of VIDs

■ PCP Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7)

or range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'

■ DEI Drop Eligible Indicator: Valid value of DEI can be any of values

between 0, 1 or 'Any'

■ Frame Type Frame Type can have any of the following values

1. Any

2. Ethernet
