4.4 Port Management
Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items:
 Port Configuration
Configures port connection settings
 Port Statistics Overview
Lists Ethernet and RMON port statistics
 Port Statistics Detail
Lists Ethernet and RMON port statistics
 SFP Module Information
Display SFP information
 Port Power Saving Configuration
Configures port power saving settings
 Port Power Saving Status
Status of port power saving
 Port Mirror
Sets the source and target ports for mirroring
4.4.1 Port Configuration
This Page displays current port configurations. Ports can also be configured here. The Port Configuration screen in Figure 4-4-1
appears.

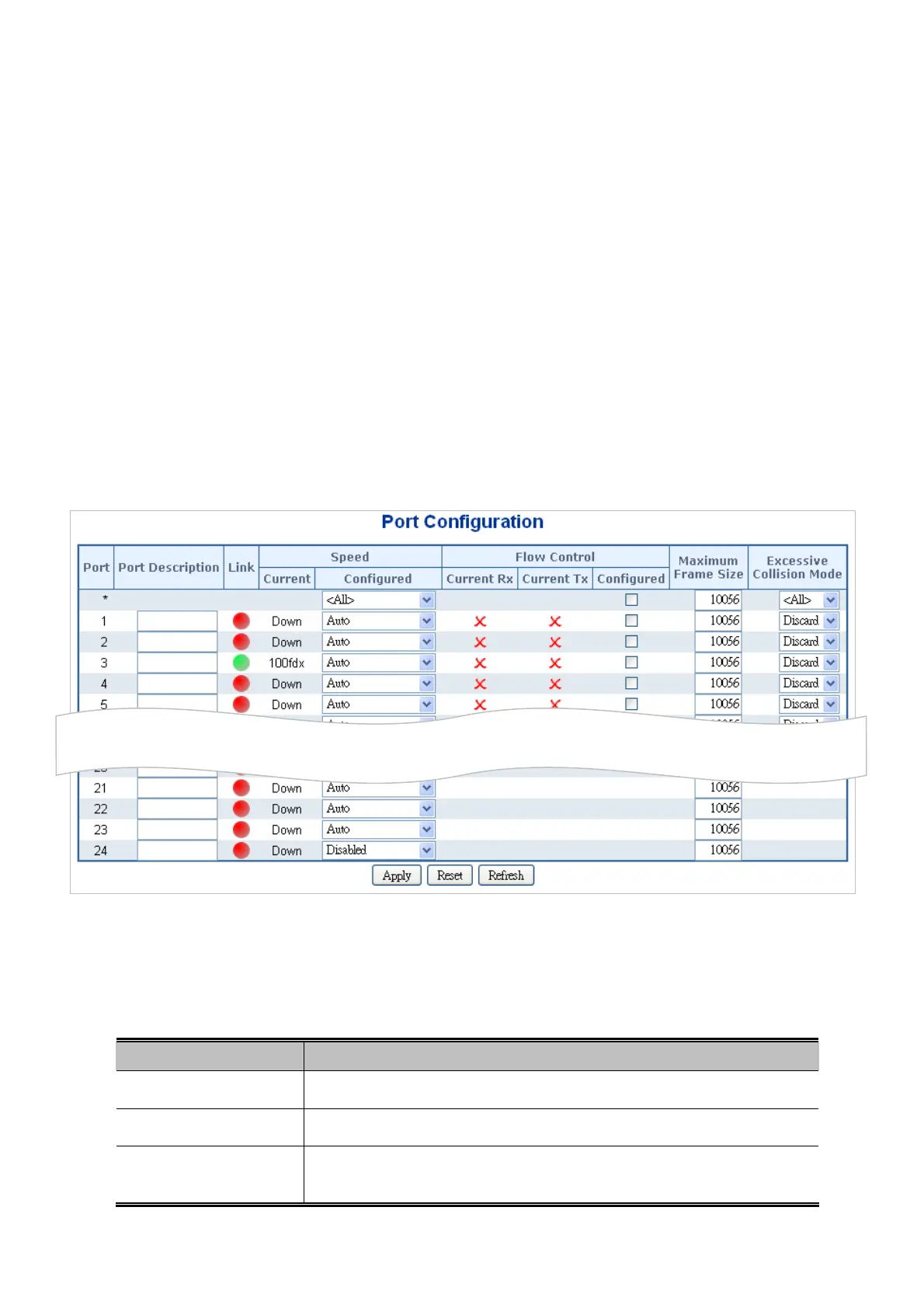

Figure 4-4-1: Port Configuration Page Screenshot
The Page includes the following fields:
Object Description
 Port
This is the logical port number for this row.
 Port Description
Indicates the per port description.
 Link
The current link state is displayed graphically. Green indicates the link is up and
red that it is down.
