4.12.12 Dynamic IP Source Guard Table
Entries in the Dynamic IP Source Guard Table are shown on this Page. The Dynamic IP Source Guard Table is sorted first by
port, then by VLAN ID, then by IP address, and then by IP mask. The Dynamic IP Source Guard Table screen in Figure 4-12-12
appears.

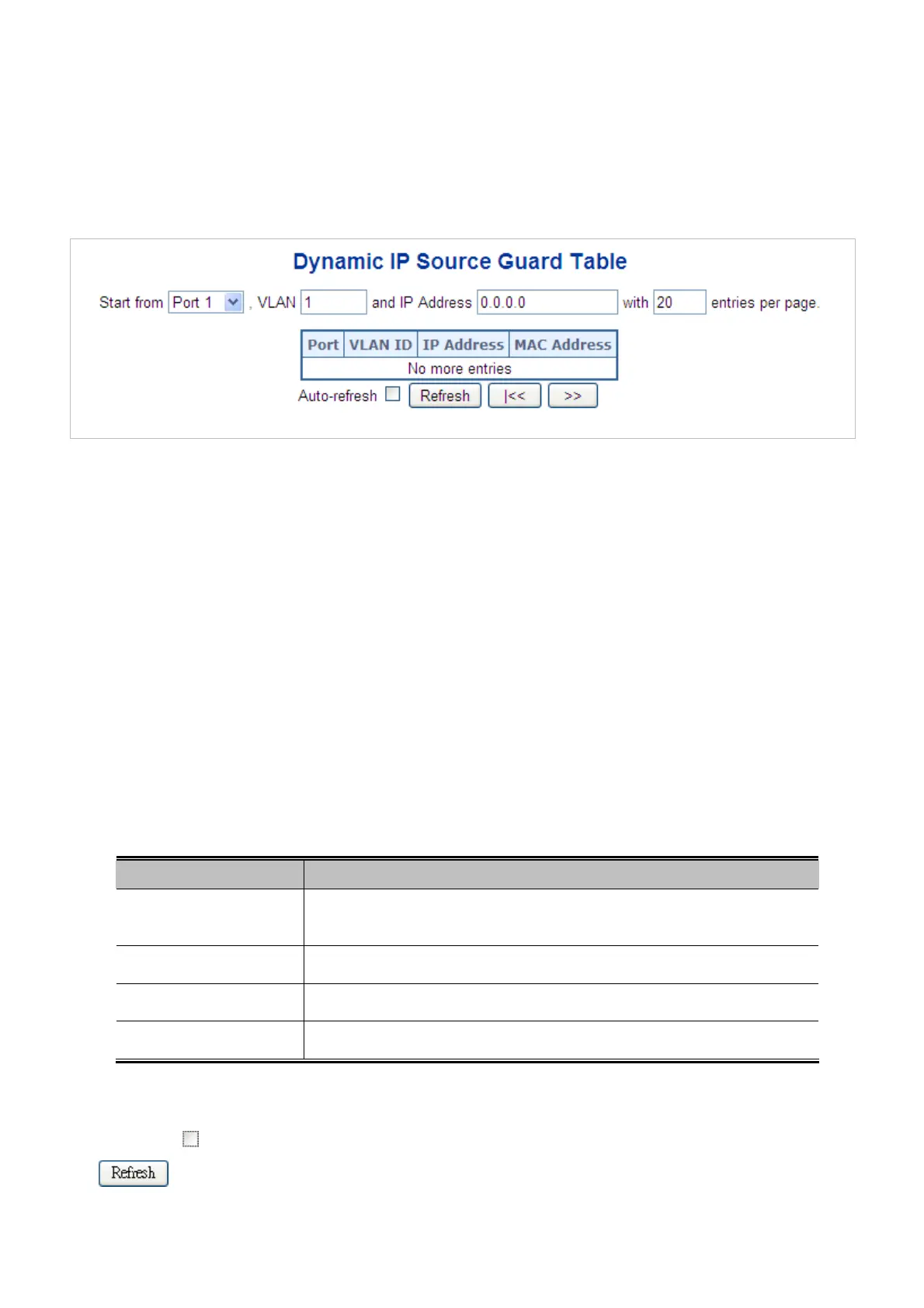

Figure 4-12-12: Dynamic IP Source Guard Table Screenshot
Navigating the ARP Inspection Table
Each Page shows up to 99 entries from the Dynamic IP Source Guard table, default being 20, selected through the "entries per
Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Dynamic IP Source
Guard Table.
The "Start from port address", "VLAN", "IP address" and "IP mask" input fields allow the user to select the starting point in the
Dynamic IP Source Guard Table. Clicking the “Refresh” button will update the displayed table starting from that or the closest
next Dynamic IP Source Guard Table match. In addition, the two input fields will - upon a “Refresh” button click - assume the
value of the first displayed entry, allowing for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed as a basis for the next lookup. When the end is reached the text "No
more entries" is shown in the displayed table. Use the “|<<” button to start over. The Page includes the following fields:
Object Description
Port
The port number for which the status applies. Click the port number to see the
status for this particular port.
VLAN ID
The VLAN ID of the entry.
IP Address
The IP address of the entry.
MAC Address
The MAC address of the entry.
Buttons
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
