User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
Buttons
Auto-refresh
: Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
4.11.9 RADIUS Details
This Page provides detailed statistics for a particular RADIUS server. The RADIUS Authentication/Accounting for Server
Overview screen in Figure 4-11-10 appears.

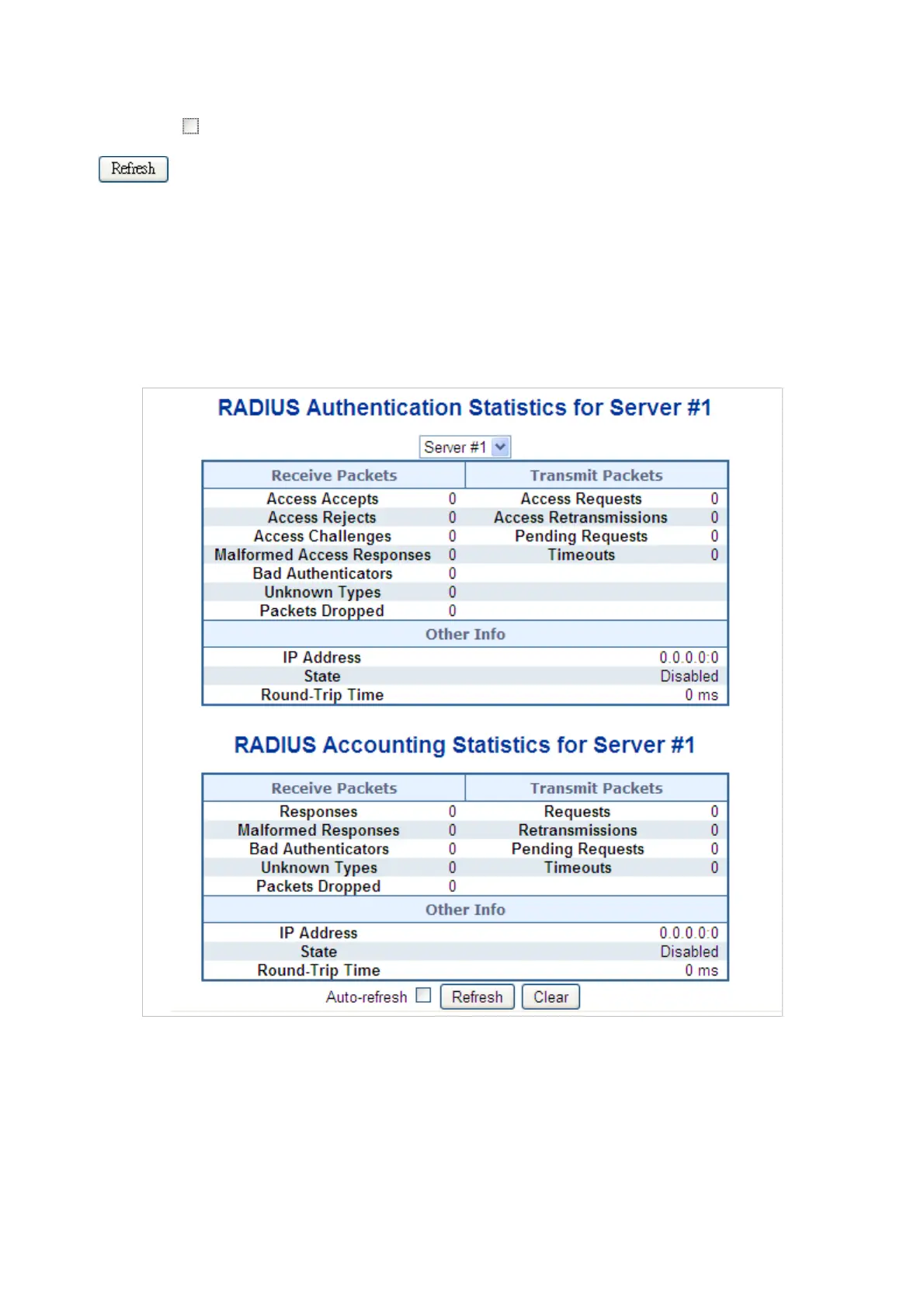

Figure 4-11-10: RADIUS Authentication/Accounting for Server Overview Page Screenshot
The Page includes the following fields:
RADIUS Authentication Statistics
The statistics map closely to those specified in RFC4668 - RADIUS Authentication Client MIB. Use the server select box to
switch between the backend servers to show details for.
254
