User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
 Topology Flag
The current state of the Topology Change Flag for this Bridge instance.
 Topology Change Last
The time since last Topology Change occurred.
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
4.7.4 CIST Port Configuration
This Page allows the user to inspect the current STP CIST port configurations, and possibly change them as well. The CIST
Port Configuration screen in Figure 4-7-6 appears.

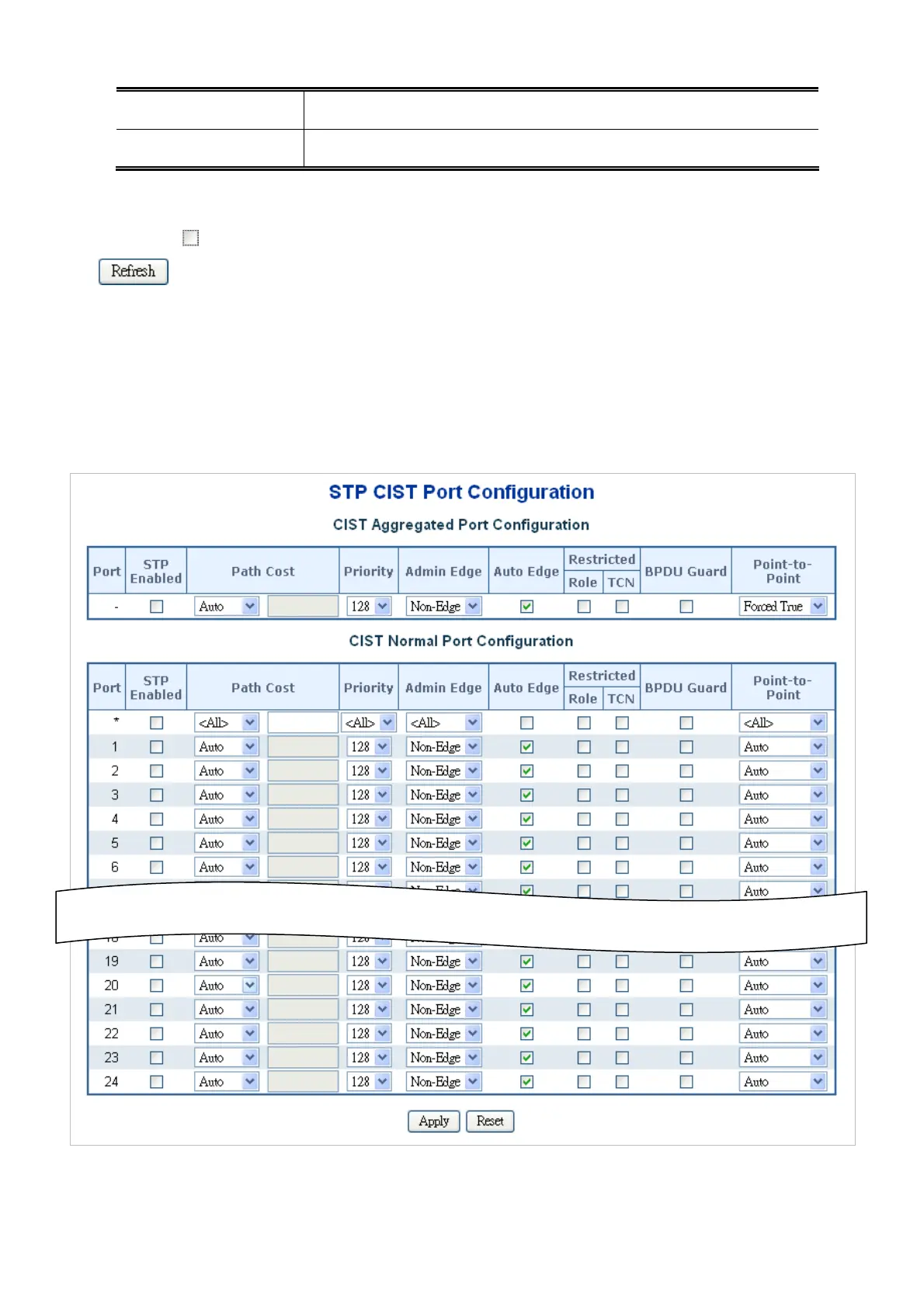

Figure 4-7-6 : STP CIST Port Configuration Page Screenshot
The Page includes the following fields:
141
